The DQ750-M-V2L WH fully modular 750W 80 PLUS Gold power supply features 100% Japanese capacitors and high quality switch MOSFETs. Built to deliver stable output capacity with high conversion efficiency, the DQ750-M-V2L WH offers better reliability for your PC system.

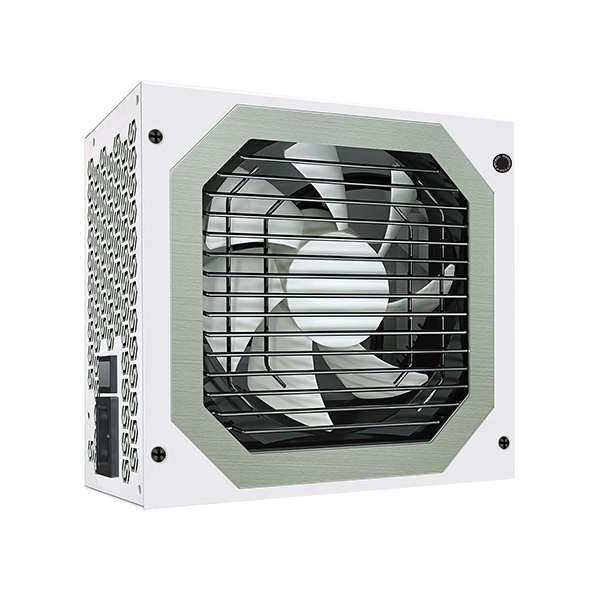

Deepcool DQ750-M-V2L WH 750W 80 Plus Gold Power Supply
- 80 PLUS® GOLD certified – Up to 91.2% efficiency
- 100% High quality Japanese capacitors
- Full bridge PFC + LLC Resonant converter
- Fully modular with flat cable design
- CircuitShield™ — OVP / UVP / SCP / OPP / OTP
80 PLUS® Gold Certified
Get all the power you need with a maximum 91.2% efficiency to reduce excess energy consumption and waste heat.
Featuring active Power Factor Correction (PFC), a full bridge LLC resonant converter and synchronous rectification DC-DC design, the DQ750-M-V2L delivers improved performance with lower power dissipation, increased quality, and better thermals to meet your needs.
The 100% Japanese capacitors enhanced ripple filtering, improved reliability and product life.
|Type||ATX 12V V2.4|
|Dimension||150×160×86mm (W × L × H)|
|Input Frequency Range||47-63Hz|
|Power Good Signal||100-500ms|
|Hold Up Time||>16ms (80% Loading)|
|Efficiency||>90% Under Typical Load (50% Loading)|
|Standby Efficiency||ErP Lot 3 2014|
