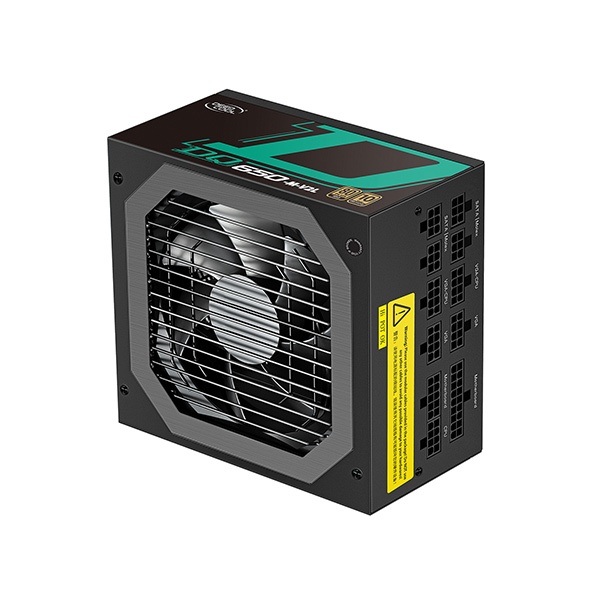

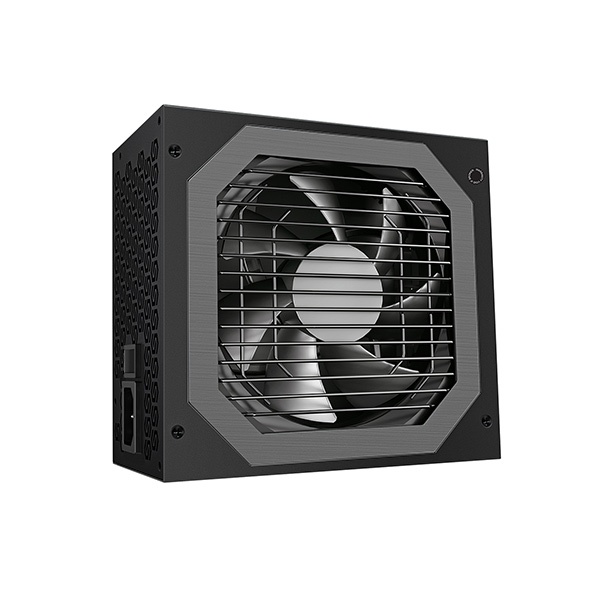

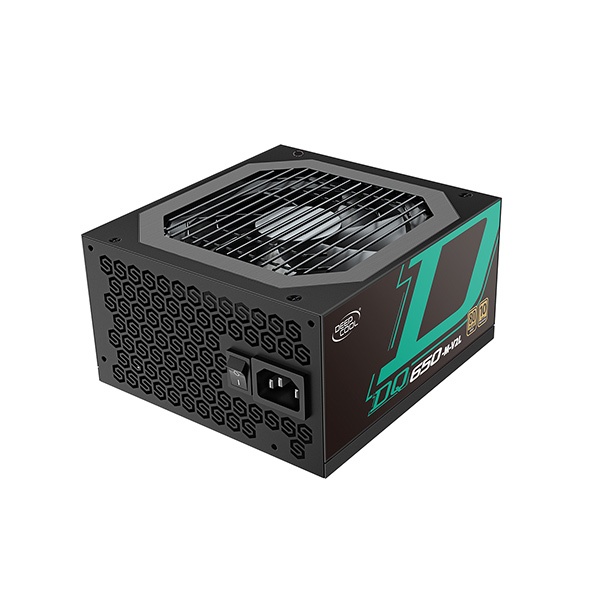

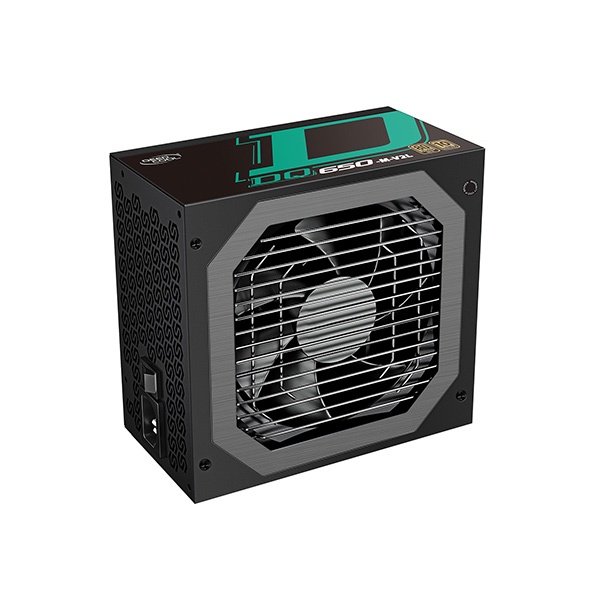

Deepcool DQ650-M-V2L 650W 80 Plus Gold Power Supply

6,699 (Inclusive of GST)

Brand:

Out of stock

Email when back in stock

The DQ650-M-V2L fully modular 650W 80 PLUS Gold power supply features 100% Japanese capacitors and high quality switch MOSFETs. Built to deliver stable output capacity with high conversion efficiency, the DQ650-M-V2L offers better reliability for your PC system.

Deepcool DQ650-M-V2L 650W 80 Plus Gold Power Supply

Features :

  • 80 PLUS® GOLD certified – Up to 90.4% efficiency
  • 100% High quality Japanese capacitors
  • Full bridge PFC + LLC Resonant converter
  • Fully modular with flat cable design
  • CircuitShield™ — OVP / UVP / SCP / OPP / OTP

Overview :

80 PLUS® Gold Certified

Get all the power you need with a maximum 90.4% efficiency to reduce excess energy consumption and waste heat.

Top-notch Design

Featuring active Power Factor Correction (PFC), a full bridge LLC resonant converter and synchronous rectification DC-DC design, the DQ650-M-V2L delivers improved performance with lower power dissipation, increased quality, and better thermals to meet your needs.

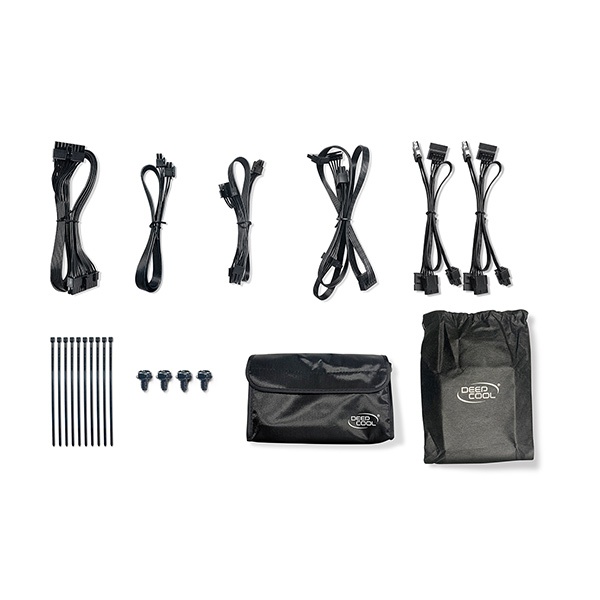

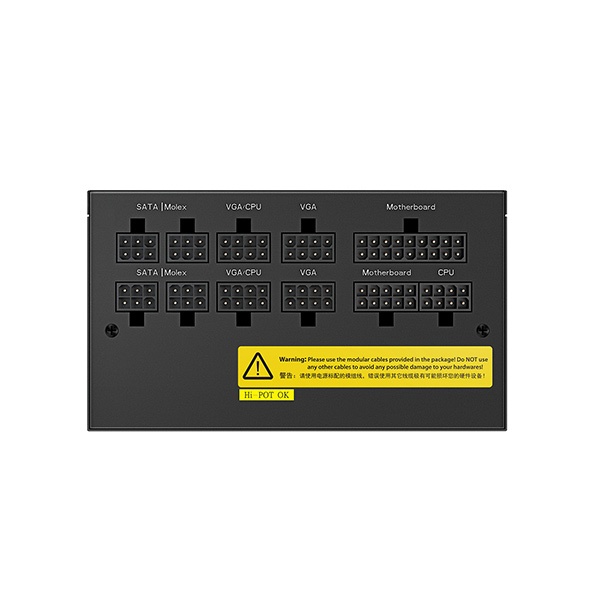

Fully Modular

Easy cable management with flat cables keep your system clean and tidy

Specifications :

ModelDQ650-M-V2L
TypeATX 12V V2.4
Certifications80PLUS GOLD
Dimension150×160×86mm (W × L × H)
Output Capacity650W
Input Voltage100-240V
Input Current10.0A
Input Frequency Range47-63Hz

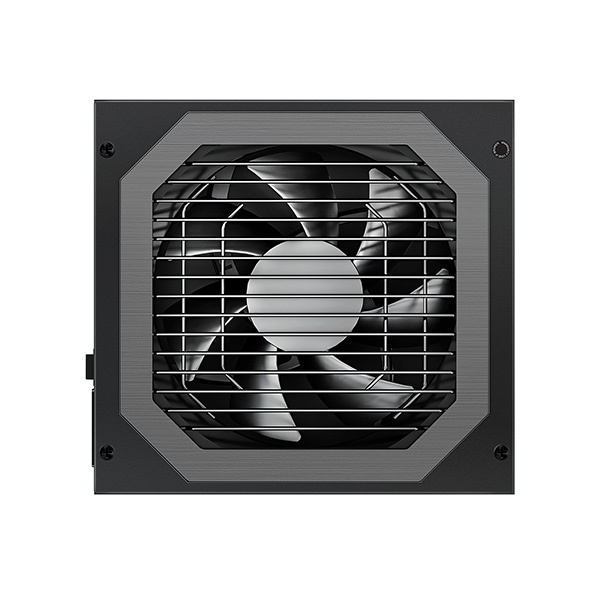

Fan Size120mm
PFCActive
Power Good Signal100-500ms
Hold Up Time>16ms (80%  Loading)
Efficiency>90% Under Typical Load (50%  Loading)
Standby EfficiencyErP Lot 3 2014
ProtectionOVP/UVP/OCP/SCP/OPP/OTP
Operation Temperature0-40°C
RegulatoryCE/CB/CCC/EAC/FCC/KCC/RCM/RoHs
MTBF100,000 Hours
EAN6933412798910
P/NDP-GD-DQ650-M-V2L

Additional information

Weight5 kg
Brand

Deepcool

Certification

80+ GOLD

Modular

Full Modular

Wattage

650 Watt

Available Models

DQ650-M-V2L

EAN/UPC

6933412798910
