Deepcool CH560 Digital White Cabinet :
A BREATH OF FRESH AIR
Deepcool CH560 Digital White provides exceptional airflow from all sides of the case, from the high airflow front to the hybrid tempered glass side panel, cool air is always available for the modern power-hungry components.
HYBRID AIRFLOW GLASS SIDE PANEL
A unique tempered glass and mesh hybrid side panel provides a crystal-clear view into the heart of your system while also supplying modern GPUs with additional ventilation: a functional yet elegant design.
REAL-TIME DUAL-STATUS DIGITAL DISPLAY
Monitor vital CPU and GPU information from the cockpit of your gaming station with the integrated double-status digital screen. Choose between CPU and GPU temperatures, utilization, or both (switches between temperature and utilization in 5-second intervals). A simple to use application will give you control of the display statuses.
MAXIMUM COOLING CAPACITY
The Deepcool CH560 Digital White has a plethora of cooling configurations, from the ability to mount 360mm radiators on the top and front to the three included 140mm ARGB fans up front and a 120mm ARGB at the rear—the cooling configurations are endless.
YES, IT FITS!
With the ability to support up to E-ATX motherboards, 175mm tall CPU coolers, 380mm GPUs, and 170mm PSUs, Deepcool CH560 Digital White can be configured with a wide range of modern components.
BIGGER, BRIGHTER, BETTER
Three luminous PWM enabled 140mm ARGB fans come pre-installed on the front of the Deepcool CH560 Digital White and introduce an abundant amount of fresh air into the chassis, these fans are mounted outside of the main compartment to provide maximum clearance for the largest of GPUs while maintaining a smaller footprint. The rear 120mm ARGB fan is also PWM enabled and will exhaust the warm air out of the chassis.

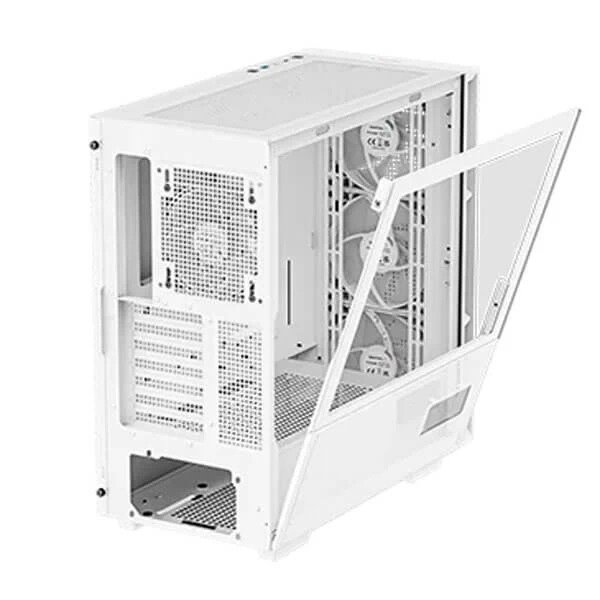

Building and maintaining the Deepcool CH560 Digital White is a breeze: the magnetic hybrid panel with an optional security screw, magnetic air filters, integrated GPU support arm, and 26mm of cable management space behind the motherboard tray make life with a computer a little bit easier.
CONVENIENCE AT ARM’S REACH
Everything necessary for daily routines is within reach with a Type-C, one USB 3.0 port, and a hybrid audio port, all conveniently located on the case I/O panel.
|Product Dimensions||458×230×471mm (L×W×H)|
|Net Weight||7.7 Kg|
|Motherboard Support||Mini-ITX / Micro-ATX / ATX / E-ATX|
|Front I/O Ports||USB3.0×1, Audio×1, TYPE-C×1|
|3.5″ Drive Bays||2|
|2.5″ Drive Bays||2+1|
|Expansion Slots||7 Slots|
|Pre-Installed Fans||Front: 3×140mm ARGB|
|Rear: 1×120mm ARGB|
|Fan Support||Front: 3×120 / 3×140mm|
|Top: 3×120 / 2×140mm|
|Rear: 1×120 / 1×140mm|
|PSU Shrouded: 2×120mm|
|Radiator Support||Front: 120/140/240/280/360mm|
|CPU Cooler Height Limit||175mm|
|GPU Length Limit||380mm|
|Power Supply Type||ATX PS2 (maximum length: 170mm)|
