Features:
AMD B450 (AM4) ATX gaming motherboard with dual M.2, AI Noise-Canceling Microphone, HDMI, DisplayPort, USB 3.2 Gen 2 Type-A and Type-C and Aura Sync RGB lighting support
- Comprehensive cooling: VRM heatsinks, PCH heatsink, Fan Xpert 4 core
- Next-gen connectivity: USB 3.2 Gen 2 Type-A and Type-C support
- Realtek S1200A codec: Pristine audio quality with unprecedented 108 dB signal-to-noise ratio for stereo line out and 103 dB SNR for line in
- AI Noise-Canceling Microphone: Provides crystal-clear in-game voice communication
- Aura Sync RGB Lighting: Synchronize LED lighting with a vast portfolio of compatible PC gear
Overview:
DURABLE. STABLE. RELIABLE.

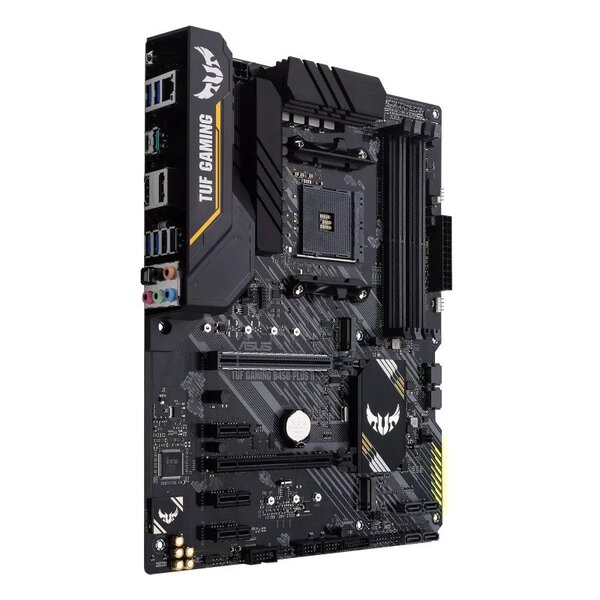

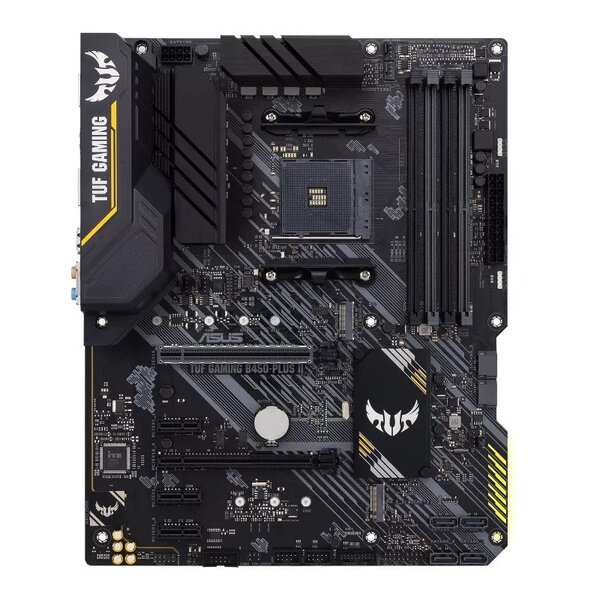

TUF Gaming B450-PLUS II distills essential elements of the latest AMD platform and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive set of cooling options, this motherboard delivers rock-solid performance with unwavering gaming stability.
When you build with a TUF Gaming motherboard, you also benefit from the TUF Gaming Alliance — an ASUS collaboration with trusted industry partners that ensures easier building, best compatibility, and complementary aesthetics from components to case.
DrMOS
The onboard VRM of TUF Gaming B450-PLUS II utilizes 8+2 DrMOS power stages that combine high-side and low-side MOSFETs and drivers into a single package, delivering the power and efficiency that 3rd Gen AMD Ryzen™ Processors demand.
TUF Gaming B450-PLUS II provides a complete, high-performance gaming package with a long list of features to improve your experience, including ultrafast networking for smoother online gameplay, pristine audio with positional cues for FPS gaming, and onboard RGB lighting that syncs with attached accessories to help you create a personalized gaming atmosphere.
EXCLUSIVE GIGABIT ETHERNET
Experience ultra-fast gaming with the ASUS-exclusive Realtek® L8200A Gigabit Ethernet. With performance and stability enhancements, the LAN is optimized for CPU-efficient, low-latency data transfers.
Specifications:
CPU | AMD AM4 |
Chipset | AMD B450 |
Memory | - 3rd/2nd/1st Gen AMD Ryzen™/
- 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™
- Vega Graphics Processors
- 4 x DIMM, Max. 128GB, DDR4 4400(O.C)/3533(O.C)/3466(O.C.)/3200(O.C.)/
- 3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Un-buffered Memory
- Dual Channel Memory Architecture
- ECC Memory (ECC mode) support varies by CPU.
- The maximum memory frequency supported varies by processor.
|
Graphic | Integrated Graphics in the 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors- 1 x DisplayPort
- 1.2 1 x HDMI 2.0b
*Graphics specifications may vary between CPU types. |
Multi-GPU Support | Supports AMD CrossFireX™ Technology |
Expansion Slots | - 3rd/2nd/1st Gen AMD Ryzen™ Processors
- 1 x PCIe 3.0/2.0 x16 (x16 mode)
- 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors
- 1 x PCIe 3.0/2.0 x16 (x8 mode)
- AMD Athlon™ with Radeon™ Vega Graphics Processors
- 1 x PCIe 3.0/2.0 x16 (x4 mode)
- AMD B450 chipset 1 x PCIe 2.0 x16 (max at x4 mode)
- *1 3 x PCIe 2.0 x1
*1 PCIE x16_2 will be unavailable when installing M.2 PCIE SSD in M.2_2 socket. PCIe x16_2 will run x2 when installing devices in PCIe x1_1 or PCIe x1_2 slots. PCIE x16_2 will run x4 when no devices installing in PCIE x1_1 and PCIE x1_2 slots. |
Storage | 3rd/2nd/1st Gen AMD Ryzen™/ 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics :- 1 x M.2 Socket 3, with M key, type 2242/2260/
- 2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)*2
AMD Athlon™ with Radeon™ Vega Graphics Processors : - 1 x M.2 Socket 3, with M key, type 2242/2260/
- 2280/22110 storage devices support (SATA mode)*2
3rd/2nd/1st Gen AMD Ryzen™/ 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors : - 2 x SATA 6Gb/s port(s)
- Support Raid 0, 1, 10
AMD B450 chipset : - 1 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support (PCIE 2.0 x4)*3
- 4 x SATA 6Gb/s port(s)
- Support Raid 0, 1, 10
*2 The M.2 Socket shares bandwidth with the SATA_5/6 ports, and therefore the SATA_5/6 ports cannot be used when an M.2 device is installed. *3 PCIe x16_2, PCIe x1_1, and PCIe x1_2 slots will be unavailable when installing M.2 PCIe SSD in M.2_2 socket. |
LAN | Realtek® L8200A TUF LANGuard |
Audio | Realtek® ALC S1200A 8-Channel High Definition Audio CODEC *4 Audio Feature : - – Exclusive DTS Custom for GAMING Headsets.
- – Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference
- – Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
- – Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
- – Audio Cover: Effective shielding preserves the integrity of audio signals to ensure best quality.
*4 Use a chassis with HD audio module in the front panel to support an 8-channel audio output. |
USB Ports | - Rear USB Port ( Total 8 )
- 2 x USB 3.2 Gen 2 port(s)(1 x USB Type-C®)(1 x Type-A +0 x )
- 4 x USB 3.2 Gen 1 port(s)(4 x Type-A)
- 2 x USB 2.0 port(s)(2 x Type-A)
- Front USB Port ( Total 6 ) 2 x USB 3.2 Gen 1 port(s)
- 4 x USB 2.0 port(s)
|
Special Features | - ASUS TUF PROTECTION
- ASUS SafeSlot: Protect your graphics card Investment
- ASUS Overvoltage Protection: World-class circuit-protecting power design
- ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!
- ASUS DIGI+ VRM: Precision control for stable power
- ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges!
- AURA :
- Aura Lighting Control
- Aura RGB Strip Headers
- ASUS Exclusive Features :
- AI Suite 3
- Ai Charger
- Turbo LAN
- PC Cleaner
- Armoury Crate
- BIOS FlashBack™ Button
- ASUS Quiet Thermal Solution :
- Stylish Fanless Design Heat-sink solution & MOS Heatsink
- ASUS Fan Xpert 4 Core
- ASUS EZ DIY :
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS USB BIOS FlashBack™
- ASUS UEFI BIOS EZ Mode
- ASUS Q-Design :
- ASUS Q-Slot
- ASUS Q-DIMM
- Armoury Crate
|
Software Features | - ASUS Exclusive Software
- Armoury Crate
- Aura Creator
- Aura Sync
- AI Noise-Canceling Microphone
- AI Suite 3
- Performance And Power Saving Utility
- TurboV EVO
- EPU
- Digi+ VRM
- Fan Xpert 4 core
- EZ update
- PC Cleaner
- TUF GAMING CPU-Z
- AI Charger
- ASUS Turbo LAN
- DAEMON Tools
- DTS Custom for GAMING Headsets
- Norton Anti-virus software (Free Trial for 60 days)
- WinRAR
- UEFI BIOS
- ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
|
ASUS Special Features | - ASUS TUF PROTECTION
- – ASUS DIGI+ VRM
- – ASUS Enhanced DRAM Overcurrent Protection
- – ASUS ESD Guards
- – TUF LANGuard
- – ASUS Overvoltage Protection
- – ASUS SafeSlot
- – ASUS Stainless-Steel Back I/O
- ASUS Q-Design
- – ASUS Q-DIMM
- – ASUS Q-Slot
- ASUS Thermal Solution
- – Aluminum heatsink design
- ASUS EZ DIY
- – BIOS FlashBack™ button
- – BIOS FlashBack™ LED
- AURA Sync
- – AURA RGB headers
|

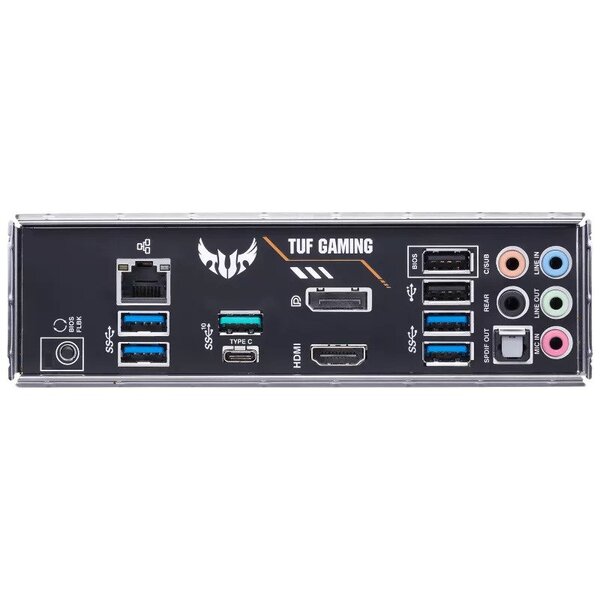

Back I/O Ports | - 1 x DisplayPort
- 1 x HDMI
- 1 x LAN (RJ45) port(s)
- 2 x USB 3.2 Gen 2 (1 x USB Type-C®+1 x Type-A)
- 4 x USB 3.2 Gen 1 Type-A
- 2 x USB 2.0
- 5 x Audio jack(s)
- 1 x BIOS FlashBack™ Button(s)
|
Internal I/O Ports | - 1 x CPU Fan connector(s) (1 x 4 -pin)
- 3 x Chassis Fan connector(s) (3 x 4 -pin)
- 1 x AIO_PUMP connector (1 x 4 -pin)
- 2 x Aura RGB Strip Header
- 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) (19-pin)
- 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
- 1 x M.2 Socket 3 with M key, type 2242/2260/
- 2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
- 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (PCIE 2.0 x 4 mode)
- 1 x SPI TPM header
- 6 x SATA 6Gb/s connector(s)
- 1 x 24-pin EATX Power connector(s)
- 1 x 8-pin ATX 12V Power connector(s)
- 1 x Front panel audio connector(s) (AAFP)
- 1 x System panel(s)
- 1 x Clear CMOS jumper(s)
- 1 x COM port header
|

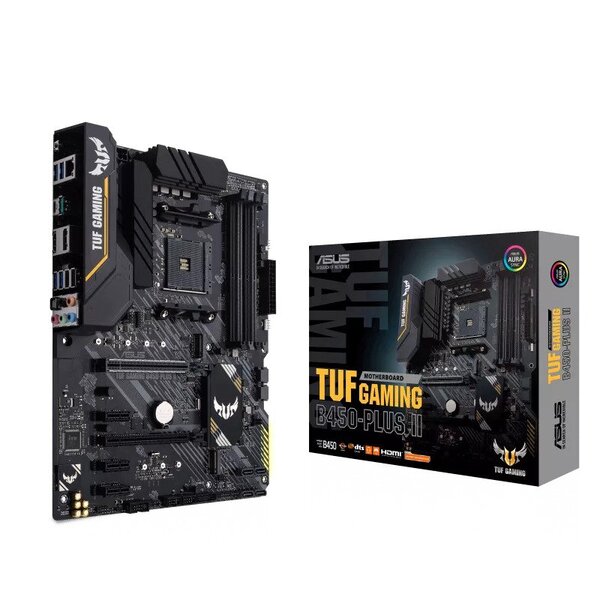

Accessories | - User´s manual
- I/O Shield
- 2 x SATA 6Gb/s cable(s)
- 1 x M.2 Screw Package
- 1 x Supporting DVD
- 1 x TUF GAMING Sticker
- 1 x TUF Certification card(s)
|
BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
Manageability | WOL by PME, PXE |
Operating System | - Windows® 10 64-bit
- Windows® 7 64-bit *5
- *5 Install an AMD Ryzen™ 2nd Generatione or Ryzen™
- 1st Generation Processors to support Windows 7 64-bit operating system.
|
Form Factor | - ATX Form Factor
- 12.0 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
|
Warranty | 3 Years |
