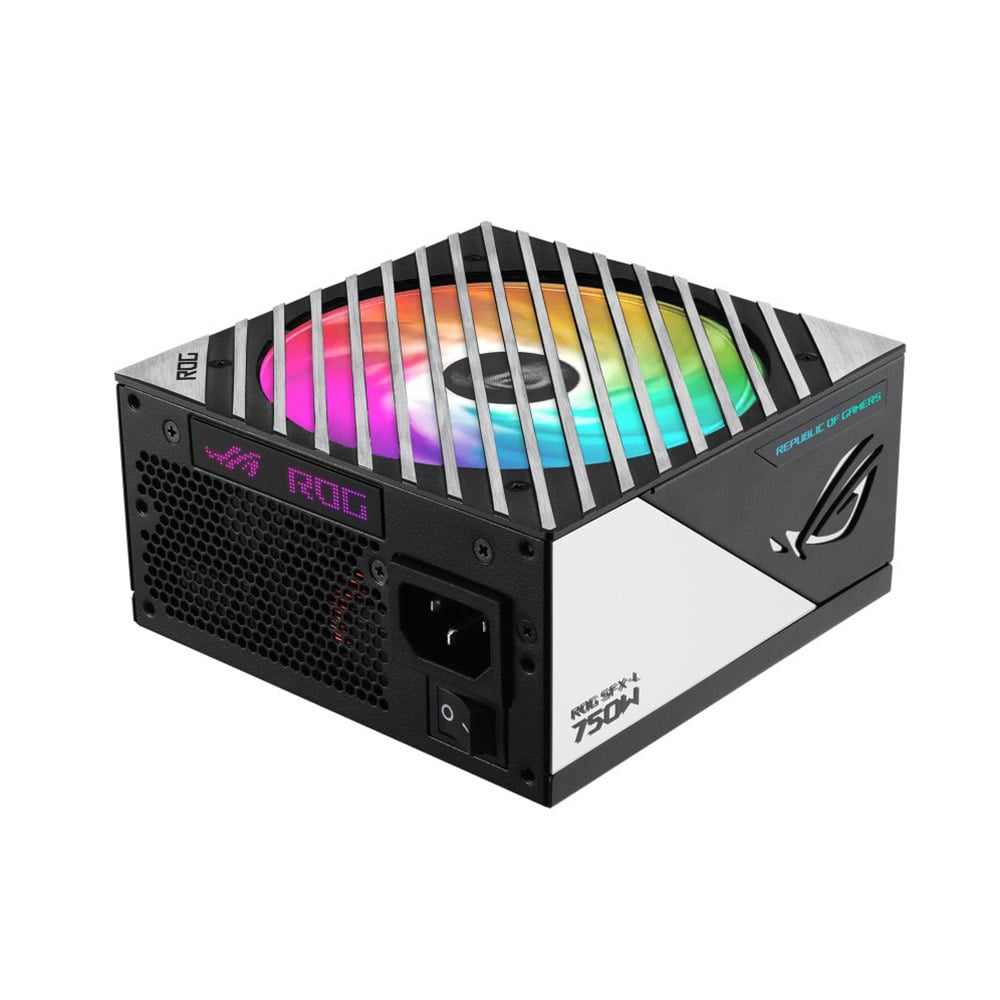

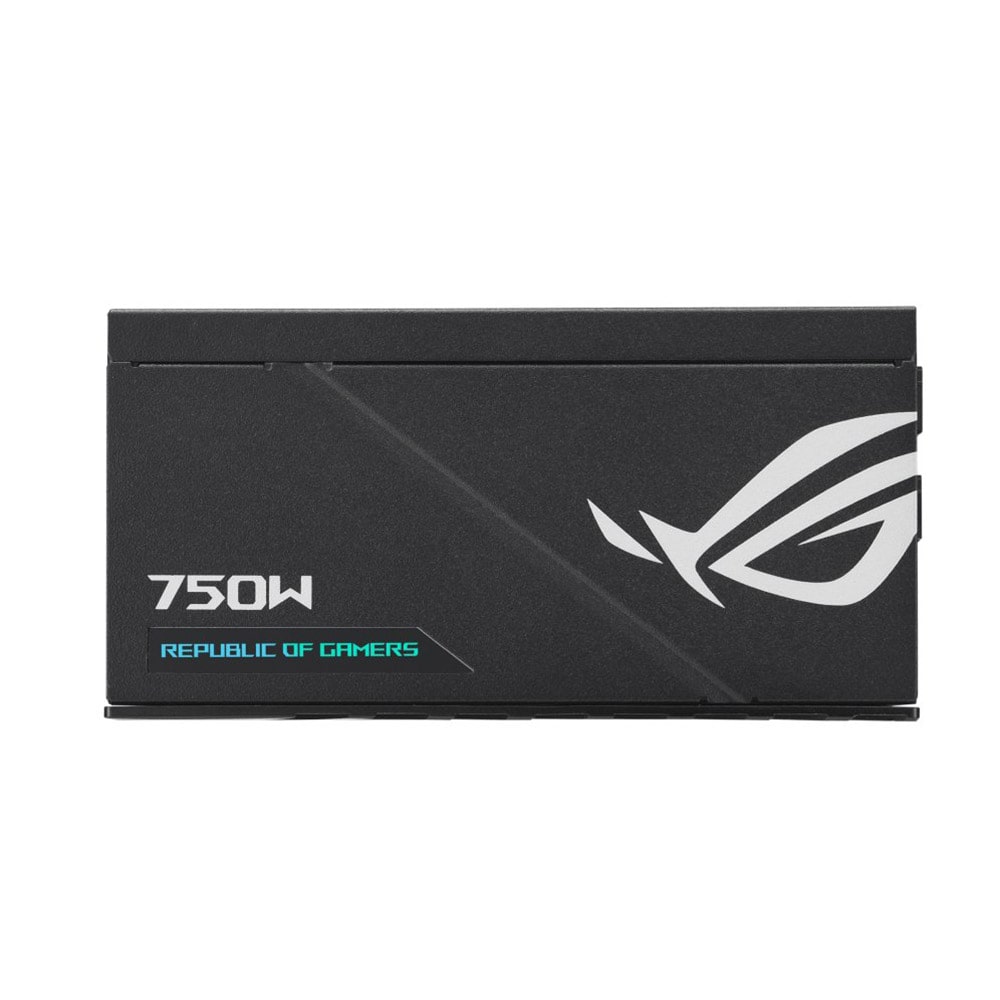

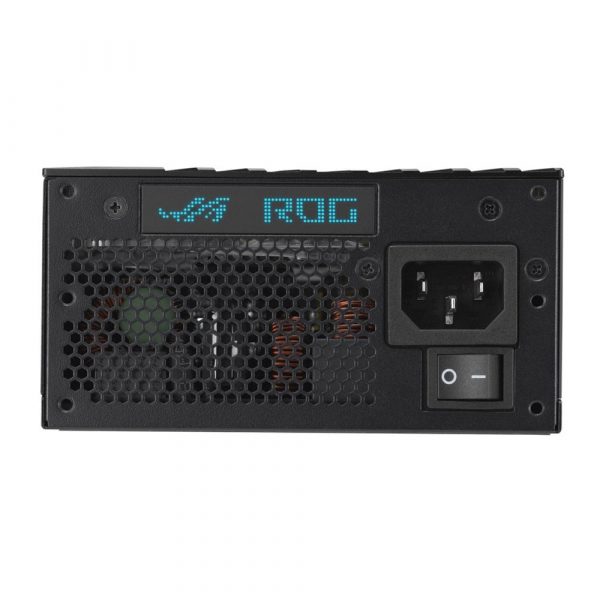

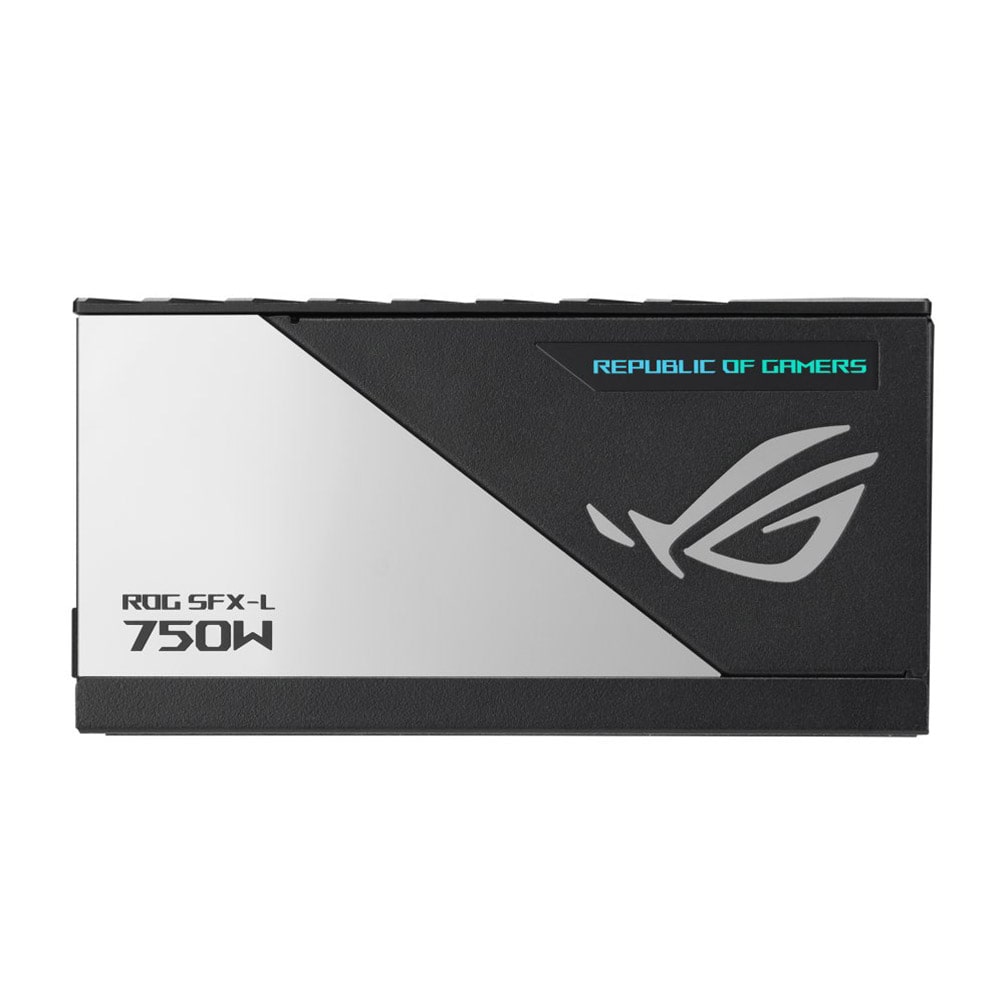

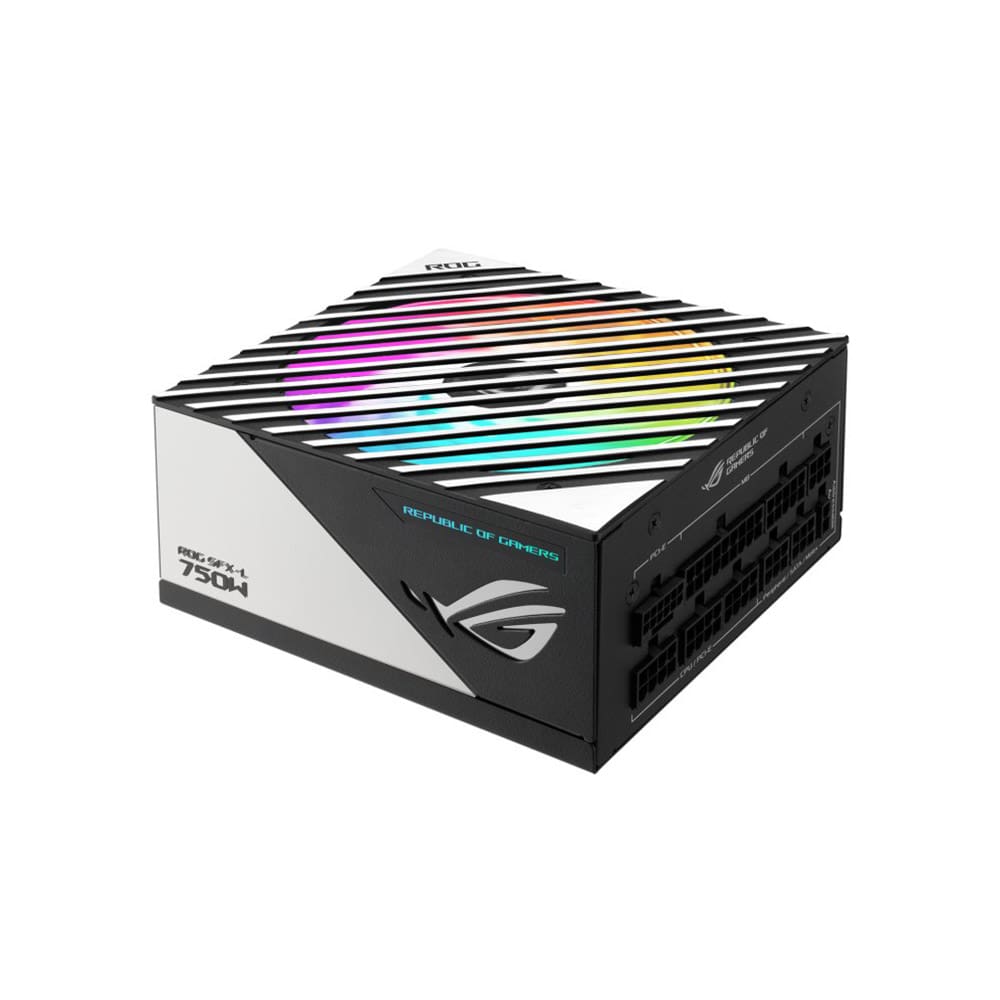

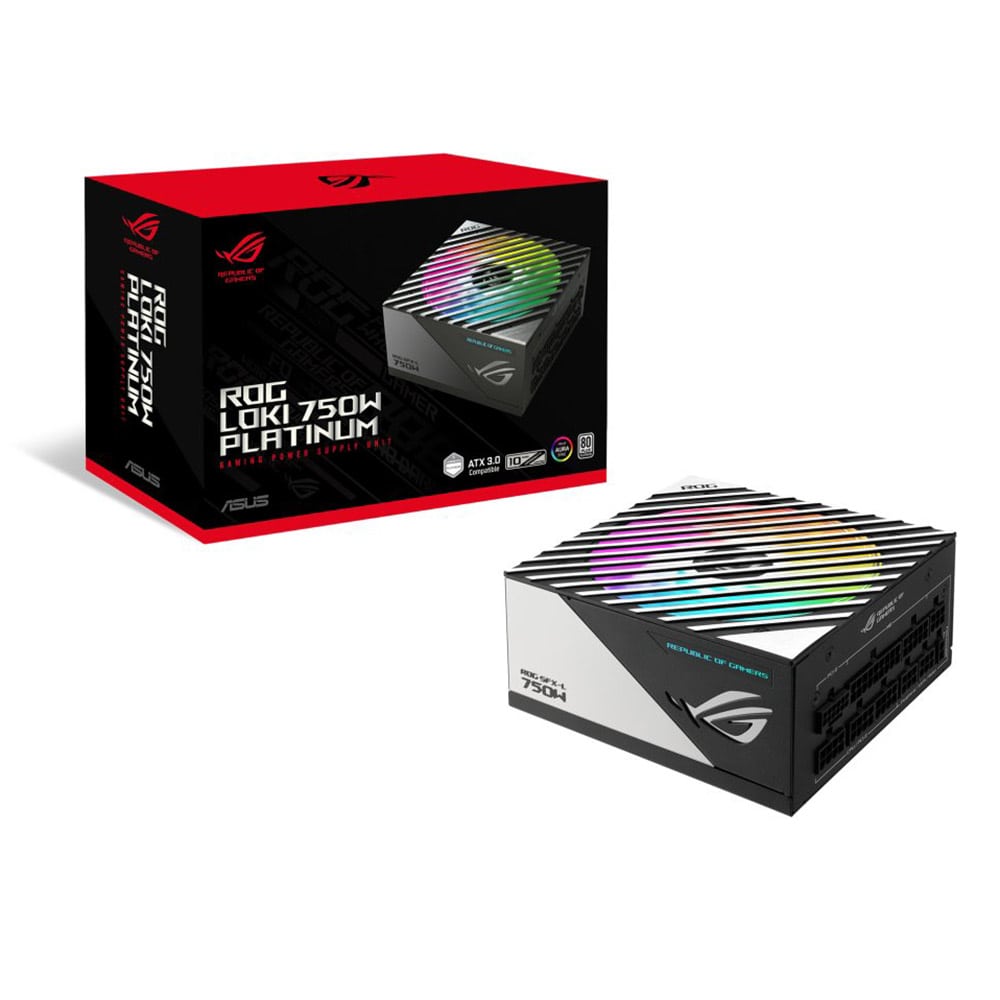

Asus ROG LOKI SFX-L 750W 80 Plus Platinum ATX 3.0 PCIE 5.0 Power Supply :
- Axial-Tech Cooling
120mm fan with PWM control for low noise and thermals kept in check
- Compact Form Factor
SFX-L : 125 x 125 x 63.5 mm
- PCIe Gen 5.0 Ready
16-pin cable included to pipe up to 600W power to PCIe 5.0 graphics cards
- Future Ready
Tighter voltage and current regulation
- Lambda A+ Certification
Certified low noise levels, below 20 dB
- 80 PLUS Platinum Certified
Up to 92% efficient for low heat and noise, and increased reliability
- ARGB-Illuminated Fan & Aura Sync
Ready to synchronize lighting effects across your gaming setup

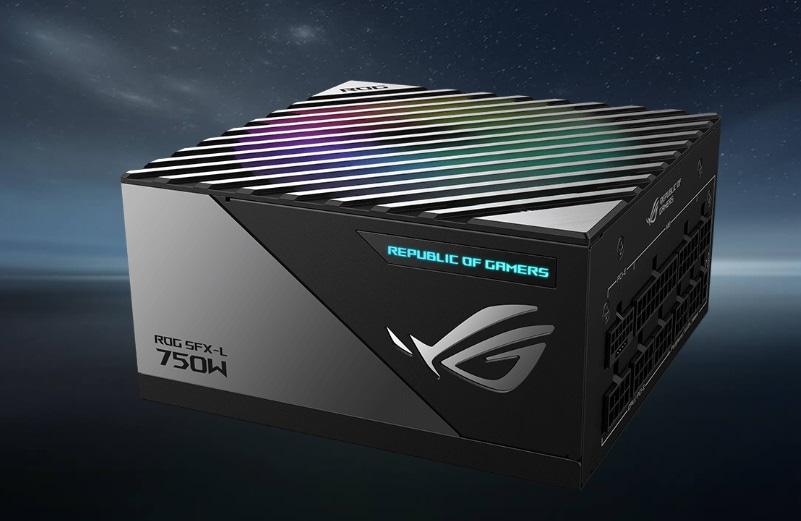

The Quietest SFX-L PSU
Taking after the ROG Thor, the Asus ROG LOKI SFX-L 750W 80 Plus Platinum ATX 3.0 Power Supply brandishes the same enthusiast-grade components and features, all packed into an SFX-L form factor. Boasting quiet operation and high performance, the Loki is primed to power your next SFF build.
ROG Heatsinks, Cool under pressure
ROG heatsinks facilitate lower temperatures, longer component lifespan, and extended 0dB operation.

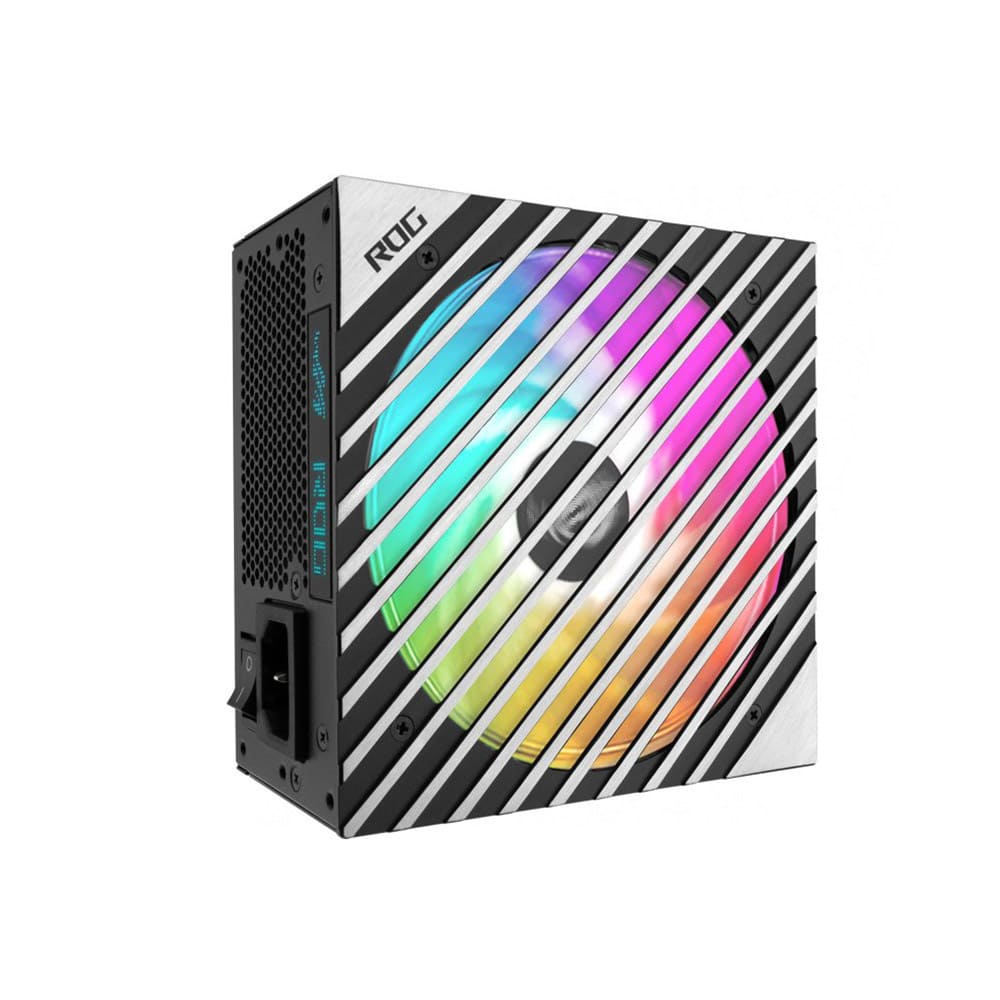

Axial-tech Fan Design. Better, faster, stronger
Axial-tech fan design features a smaller fan hub that facilitates longer blades and a barrier ring that increases downward air pressure. For Asus ROG LOKI SFX-L 750W 80 Plus Platinum ATX 3.0 Power Supply, we’ve scaled that design to 120mm so it keeps things cool at low RPMs while producing less noise.
Dual Ball Fan Bearings (2x longer lifespan)
The fan impeller spins on a dual ball bearing setup that will last up to twice as long as a sleeve bearing design.
0dB Technology, Quiet intelligence
To reduce noise output, the PWM-controlled fan shuts off entirely when the Asus ROG LOKI SFX-L 750W 80 Plus Platinum ATX 3.0 Power Supply load is 40% or below.
Lambda A+ Certification, Quietly deviant
On average, Asus ROG LOKI SFX-L 750W 80 Plus Platinum ATX 3.0 Power Supply emits less than 20 dB of noise – earning a coveted Cybenetics Lambda A+ certification.
80 PLUS Platinum Certified Effortless output
Low-ESR Japanese capacitors further improve efficiency and reduce heat, readying Asus ROG LOKI SFX-L 750W 80 Plus Platinum ATX 3.0 Power Supply to reliably fuel your build for years to come.
ATX 3.0 Compatible Step into the future
The latest power specification updates have landed. ATX 3.0 ushers in tighter voltage and current regulation guidelines for next-gen hardware – and Asus ROG LOKI SFX-L 750W 80 Plus Platinum ATX 3.0 Power Supply steps ahead of the curve by being fully compliant. A 16-pin PCIe cable ripe for piping up to 600W of power to PCIe Gen 5.0 graphics cards is bundled with the Asus ROG LOKI SFX-L 750W 80 Plus Platinum ATX 3.0 Power Supply, bringing large-scale capabilities to SFF rigs.
ARGB-illuminated Fan & Aura Sync (Magical glow)

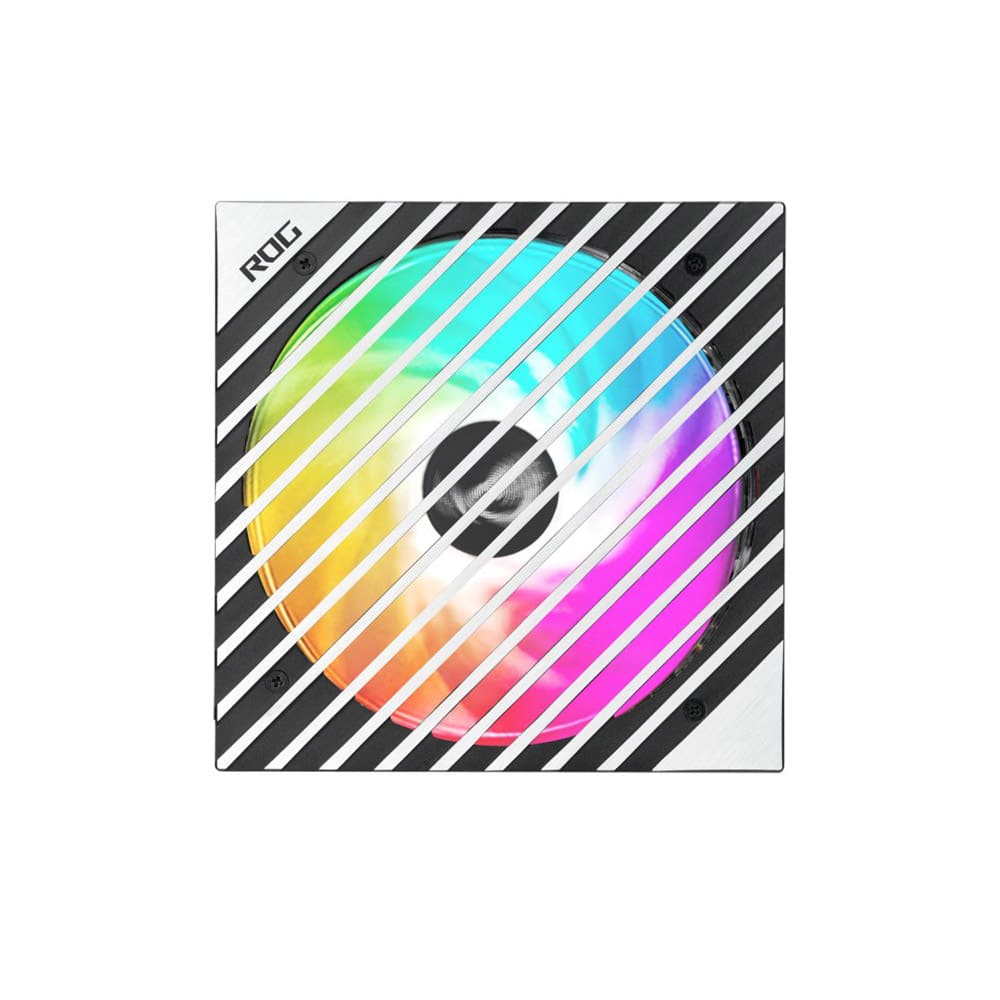

The Asus ROG LOKI SFX-L 750W 80 Plus Platinum ATX 3.0 Power Supply 120 mm fan features eight addressable LEDs ready to be customized with Aura Sync to create coordinated lighting patterns across your build.
10-Year Warranty. A decade of power
We’re so confident about the reliability of the Asus ROG LOKI SFX-L 750W 80 Plus Platinum ATX 3.0 Power Supply that we back it with a 10-year worldwide warranty.
|Intel Form Factor||SFX-L|
|Dimensions||125 x 125 x 63.5 mm|

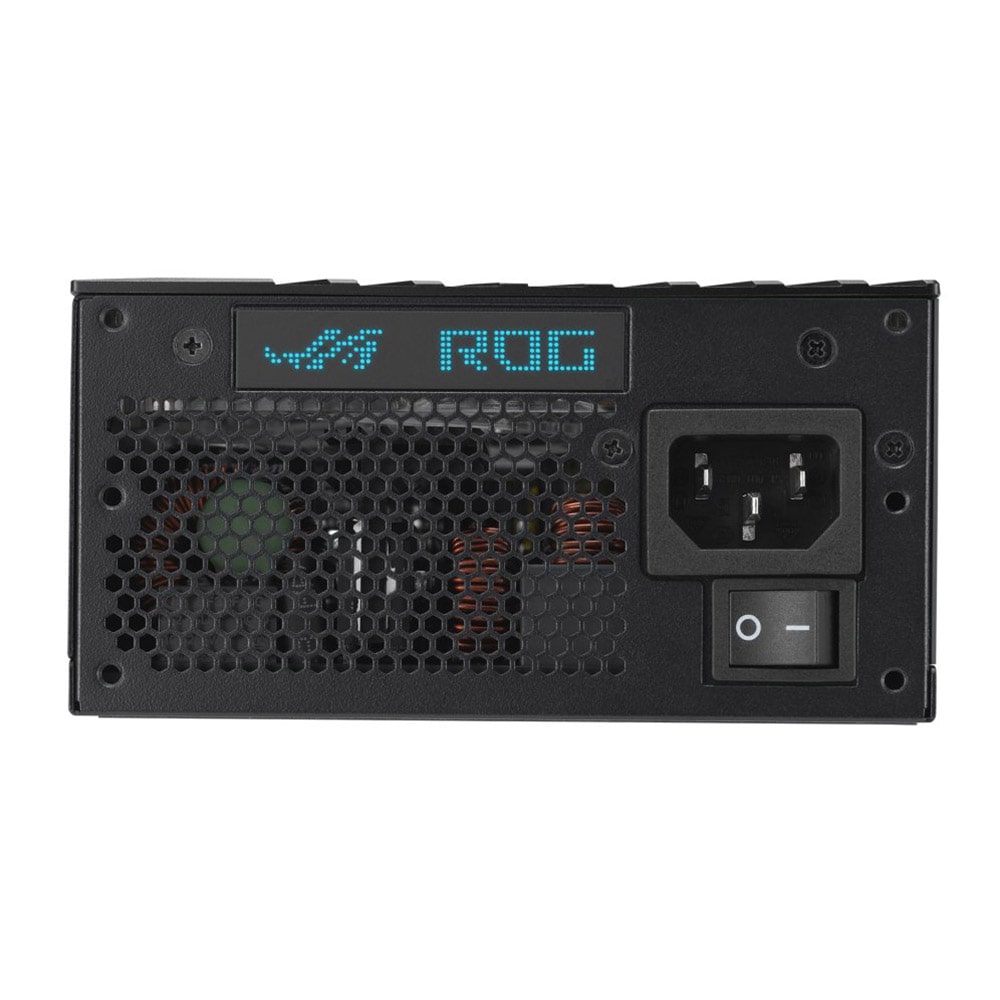

|AC Input Range||100-240Vac|
|DC Output Voltage||+3.3V +5V +12V -12V +5Vsb|
|Maximum Load||20A 20A 62.5A 0.8A 2.5A|
|Combined Load||110W 110W 750W 9.6W 12.5W|

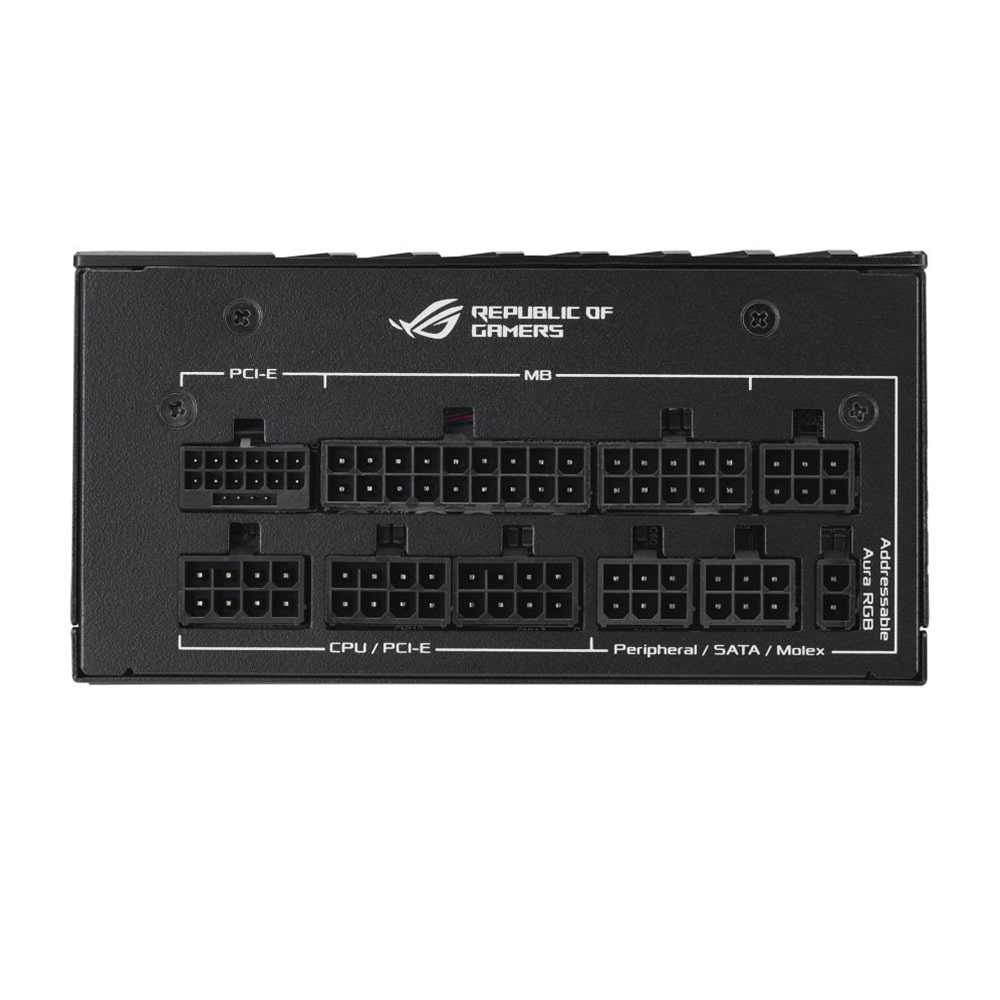

|MB 24/20-pin||x 1|
|CPU 4+4-pin||x 2|
|PCI-E 16-pin||x 1|
|PCI-E 8-pin||x 3|
|Power Cord||x 1|
|Motherboard Power Cable||x 1 (450mm)|
|CPU Cable||x 2 (550mm)|
|PCI-E Gen 5 16-pin Cable||x 1 (450mm)|
|PCI-E 1-to-1 Cable||x 1 (450mm)|
|PCI-E 1-to-2 Cable||x 1 (450mm)|
|SATA 1-to-3 Cable||x 2 (300+200+100mm)|
|Peripheral 1-to-4 Cable||x 1 (300+100+100+100mm)|
|Addressable RGB Cable||x 1 (800mm)|
|User Manual||x 1|
|ATX to SFX adapter bracket||x 1|
|Weight||1.815kg (single PSU)|
|0dB Fan Button||No|
|Cybenetics Noise Level Certification||A+|
