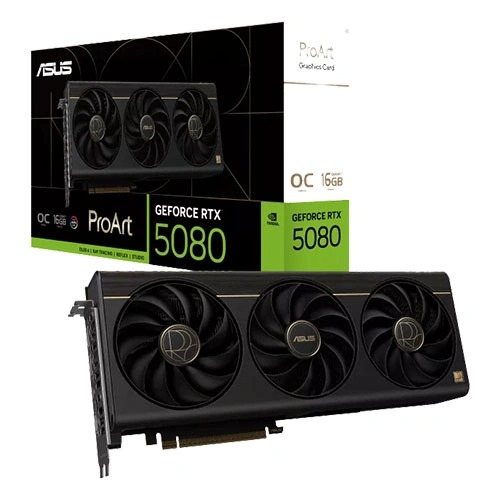

Asus ProArt RTX 5080 OC 16GB GDDR7 Triple Fan Graphics Card

Asus ProArt RTX 5080 OC 16GB GDDR7 Triple Fan Graphics Card

Feature:

ProArt GeForce RTX 5080 16GB GDDR7 OC Edition

The Asus ProArt RTX 5080 OC 16GB combines a compact 2.5-slot design with potent cooling – three Axial-tech fans, a vapor chamber, and a phase-change GPU thermal pad – to deliver GeForce RTX 50 Series performance to both full-scale towers and space-saving SFF builds. A USB Type-C port enhances versatility for content creation workflows, while a wood-patterned laminate trim and low-key Aura-lit logo help deliver a refined aesthetic.

SFF-Ready 2.5 Slot Design

Compatible with small-form-factor builds or full-scale towers loaded with multiple graphics cards

USB Type-C Port

Seamless connectivity with monitors ready to receive video signal via USB-C

Phase-Change GPU Thermal Pad

Optimal heat dissipation for GPU longevity

Axial-Tech Fans

Long blades promote airflow and disperse heat

USB Type-C Support

Asus ProArt RTX 5080 OC 16GB comes with a USB Type-C output for connecting to a monitor capable of using the port to receive video. It also features two DisplayPort 2.1b ports and one HDMI 2.1b port for multiple high-resolution displays, boosting productivity across creative workflows.

Illuminated Logo

The refined, aura-lighted ProArt logo provides a subtle and elegant accent.

Minimalist Looks

The brown wood-patterned laminate trim and refined ProArt gold elements seamlessly integrate into any designer’s build for a clean and sophisticated aesthetic.

Efficient Cooling in Compact 2.5-Slot Design

The Asus ProArt RTX 5080 OC 16GB features a 2.5-slot design and an advanced cooling system with Axial-tech fans plus heatpipes and a vapor chamber for efficient heat dissipation. This combination helps ensure low temperatures, low noise, and high performance.

Reverse Rotation and 0dB Technology

The two outer fans spin counterclockwise to minimize turbulence and to maximize air dispersion through the heatsink. All three fans come to a standstill when GPU temperatures are below 50°C, enabling you to perform light creative tasks in relative silence. Fans start up again when temps are over 55°C, referencing a speed curve that balances performance and acoustics for work or play.

Vapor Chamber

A vapor chamber, heatpipes and heatsink efficiently soak up heat from the GeForce RTX 5080 GPU, helping to ensure premium performance in a variety of scenarios.

Vented Backplate

Large backplate vents significantly enhance heat dissipation, helping to keep temperatures nominal during intense tasks. This additional airflow helps ensure optimal temperatures, performance, longevity and stability.

Dual BIOS

Performance mode lets the fans spin up to emphasize cooling, and Quiet mode keeps the same power target and top-end settings while offering a less aggressive fan curve for quieter operation at moderate temperatures.

MaxContact Design

MaxContact is an ASUS-exclusive manufacturing technique that effectively increases the surface area of the GPU heat spreader by 5% for improved thermal efficiency.

Phase-Change GPU Thermal Pad

By melting to effectively fill the gaps between the GPU and the thermal module, a premium phase-change GPU thermal pad provides superior thermal conductivity and enhanced heat dissipation, ensuring optimal performance and longevity for graphics cards under heavy loads.

ASUS GPU Guard & Bracket

Asus ProArt RTX 5080 OC 16GB GPU Guard applies adhesive to secure all four corners to reduce the risk of cracks, while a GPU bracket helps ensure uniform mounting pressure and extra stability.

Protective PCB Coating

A protective conformal coating envelops the circuit board to help protect against short-circuits caused by moisture, dust or debris.

Auto−Extreme Technology

This ASUS-exclusive automated manufacturing process sets a standard in the industry by allowing all soldering to be completed in a single pass, reducing thermal strain on components and avoiding the use of harsh cleaning chemicals. This unique process leads to reduced environmental impact, lower manufacturing power consumption and a more reliable product overall.

Specification:
