Asus Prime X870-P WIFI-CSM Motherboard

Asus Prime X870-P WIFI-CSM Motherboard :

Features :

• PLATFORM AMD
• SOCKET AM5
• ChipsetX870
• SUPPORTED MEMORY TYPE DDR5

Overview :

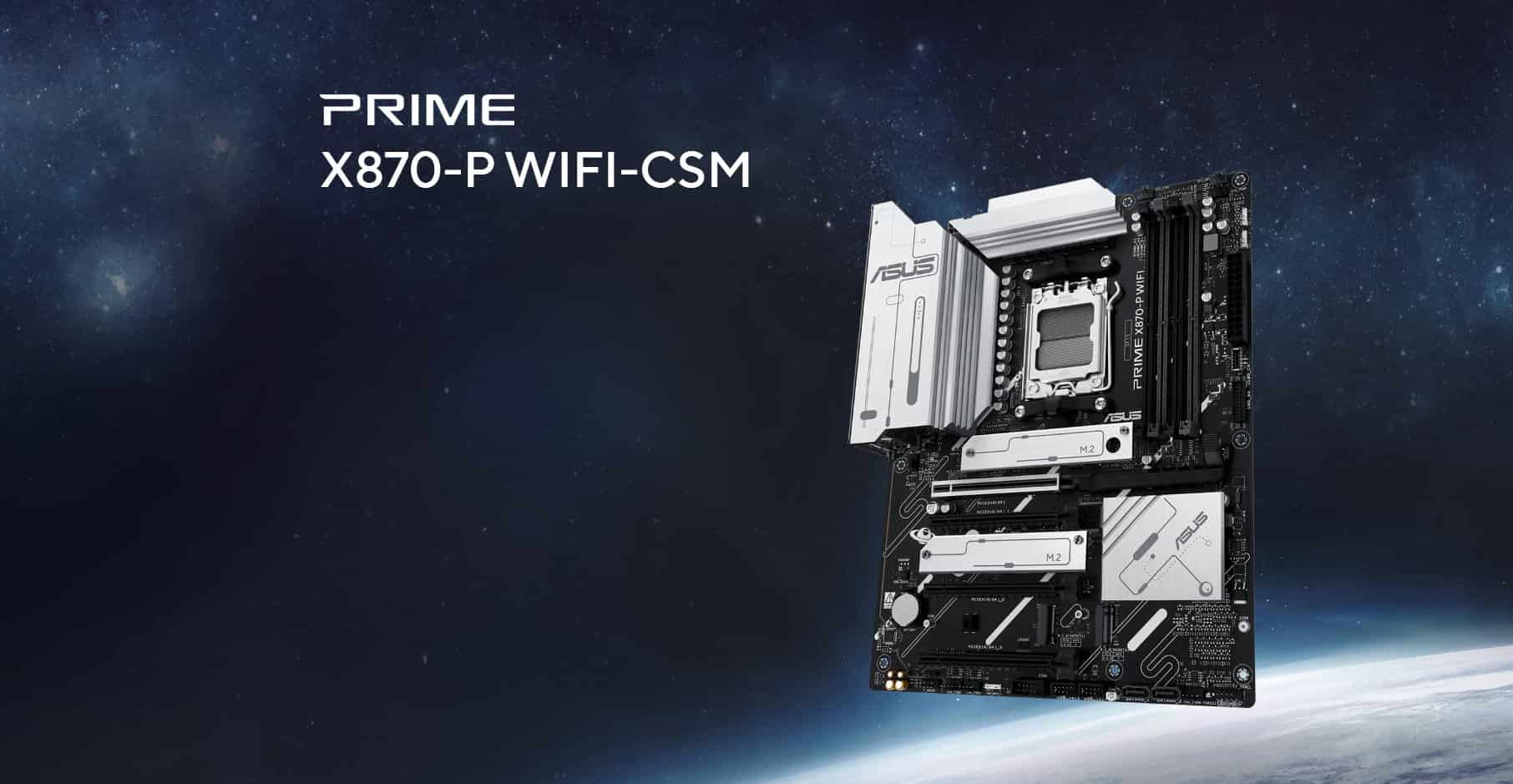

Asus Prime X870-P WIFI-CSM
Asus Prime X870-P WIFI-CSM motherboards are expertly engineered to unleash the full potential of AMD Ryzen™ 9000 series processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, the Asus Prime X870-P WIFI-CSM motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It’s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.

Robust power design
Stable power is crucial for maximizing the performance of AMD processors. The Asus Prime X870-P WIFI-CSM is designed to meet the needs of high-core-count CPUs. It features 14(80A) + 2(80A) + 1(80A) power stages that integrate high-side and low-side MOSFETs and drivers into packages rated for up to 80 amperes each. This configuration ensures optimal power delivery, efficiency, stability and performance for both current and future AMD processors.

Enhanced DDR5 performance
Comprehensive memory tuning options are the cornerstone of Asus Prime X870-P WIFI-CSM motherboards. The Asus Prime X870-P WIFI-CSM maximizes the potential of your DDR5 modules, from entry-level to extreme-speed kits.3
For entry-level modules without EXPO™ support, ASUS Enhanced Memory Profile (AEMP) automatically detects memory chips and provides optimized profiles for enhanced performance.
For those looking to surpass stock DDR5 speeds, the Asus Prime X870-P WIFI-CSM offers extensive AMD Extended Profiles for Overclocking (EXPO™) support and a wide array of UEFI settings for further performance tweaks4.

Four M.2 slots (up to 128 Gbps)
Asus Prime X870-P WIFI-CSM offers a total of four M.2 slots, including one that supports data-transfer speeds of up to 128 Gbps via PCIe 5.0, two that support 64 Gbps via PCIe 4.0, and one that supports PCIe 3.0. This enables quicker boot-up and app load times with OS or application drives5.

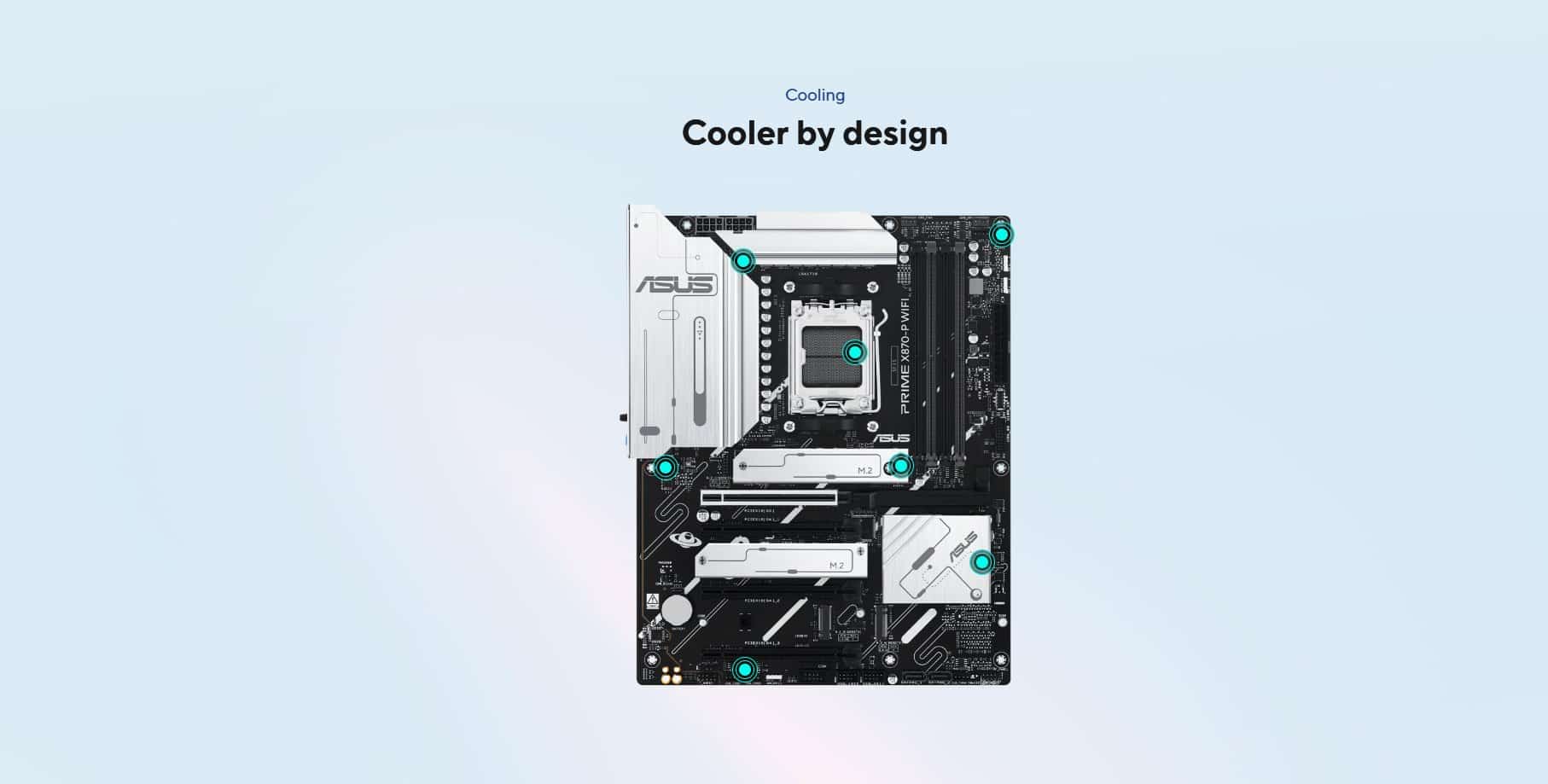

Cooler by design
The Asus Prime X870-P WIFI-CSM motherboard is engineered with multiple onboard heatsinks and an array of hybrid fan headers to help ensure your rig stays cool and stable under intense workloads.

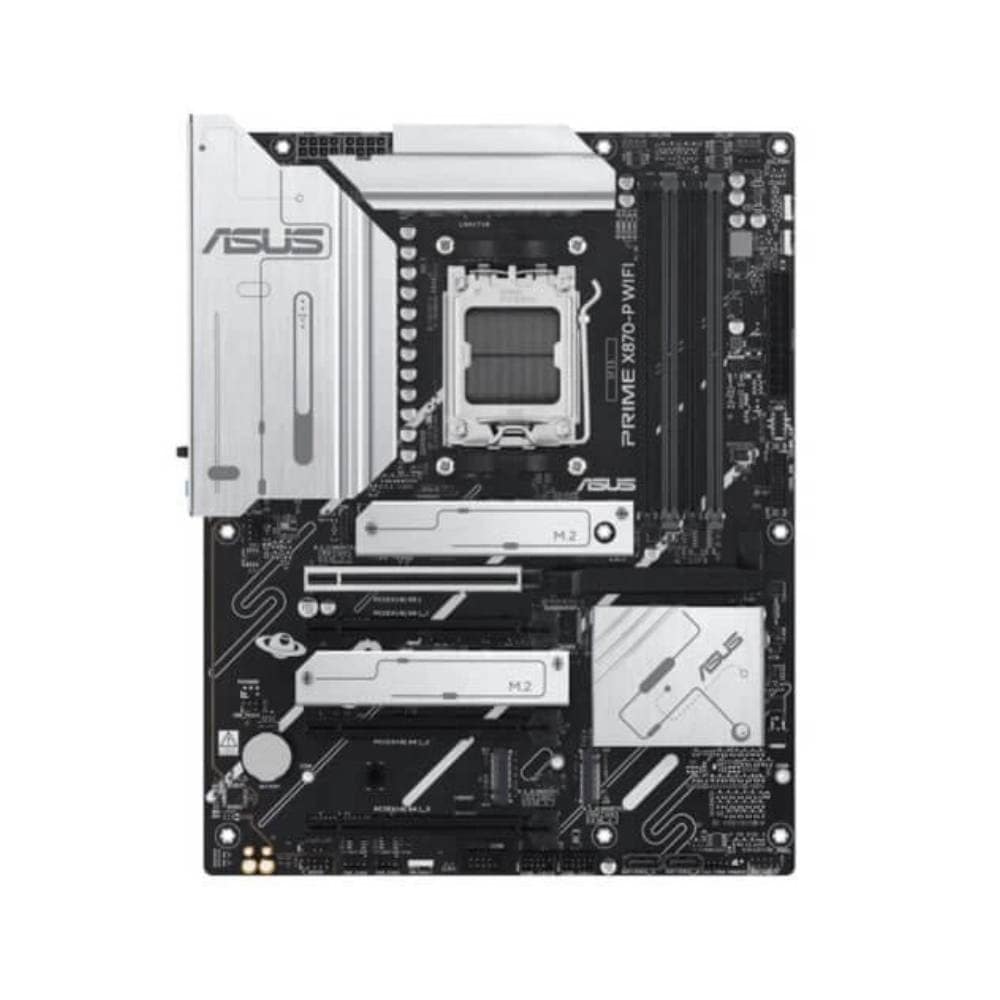

Asus Prime X870-P WIFI-CSM front view.

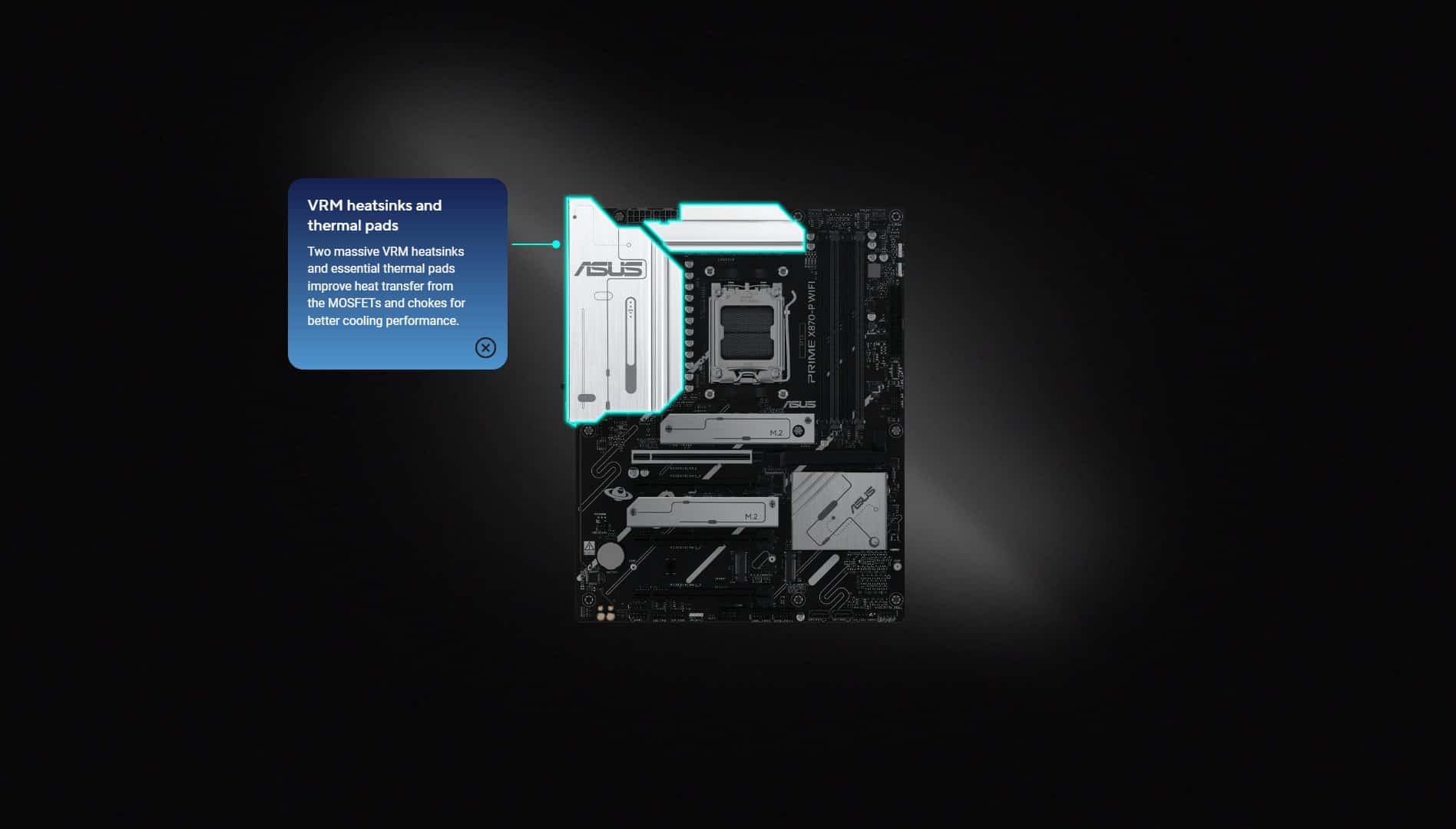

VRM heatsinks and thermal pads
Two massive VRM heatsinks and essential thermal pads improve heat transfer from the MOSFETs and chokes for better cooling performance.

ASUS Fan Xpert 4
Asus Prime X870-P WIFI-CSM has Fan Xpert 4 software offers comprehensive control over fans and AIO coolers. Auto-Tuning mode configures settings with one click, while Extreme Quiet mode reduces fan speeds for silent operation during light tasks. Controls are also available via the UEFI BIOS.

Cooler compatibility
Asus Prime X870-P WIFI-CSM AIO coolers offer robust performance, high overclocking potential, bold aesthetics and customizable functionality for new motherboards, empowering you to build your dream gaming rig.

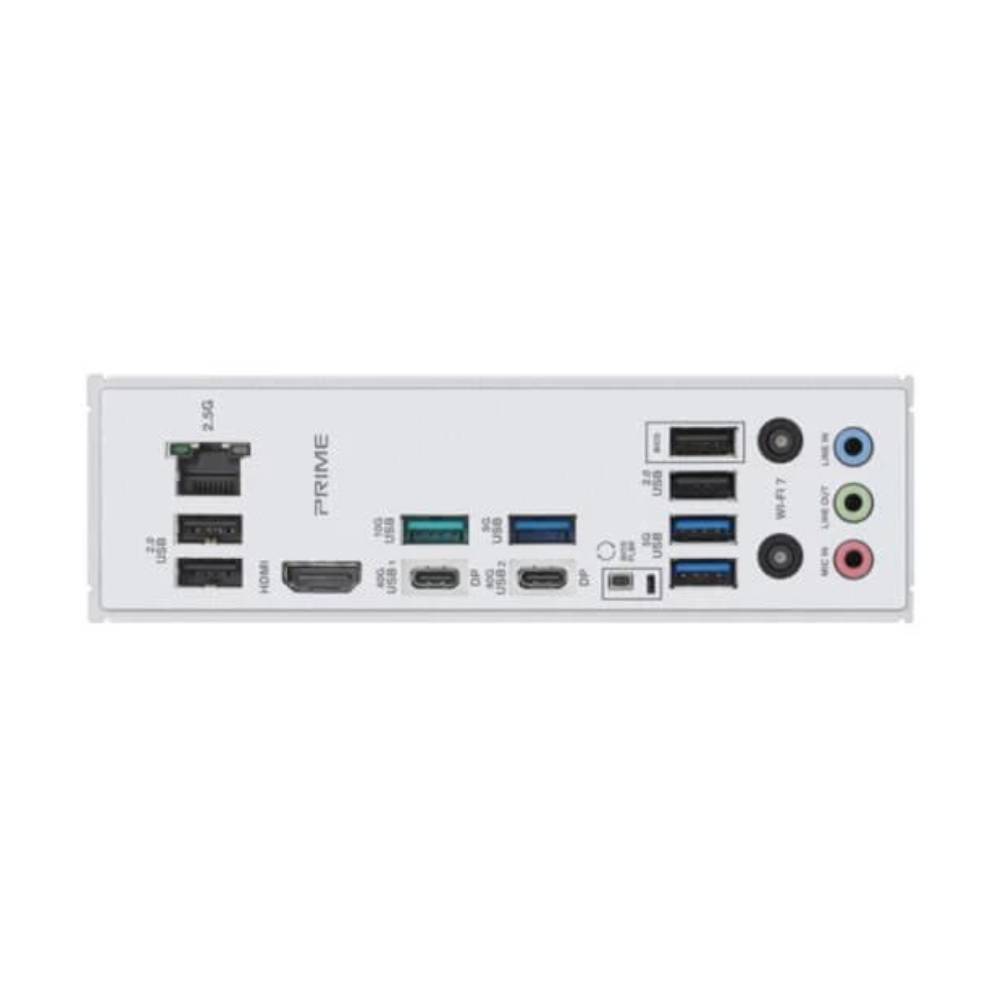

USB 40Gbps Type-C® ports
Asus Prime X870-P WIFI-CSM’s each port delivers up to 40Gbps of bi-directional bandwidth for the latest super-speed devices and drives. Both ports can be employed for up to two external 4K displays.
20

PCIe 5.0 slot
The latest processors introduce PCIe 5.0 support, doubling data transfer speeds compared to PCIe 4.0, enhancing signal integrity, and providing backward-compatible CEM connectors and support for previous PCIe versions.

Specifications :
