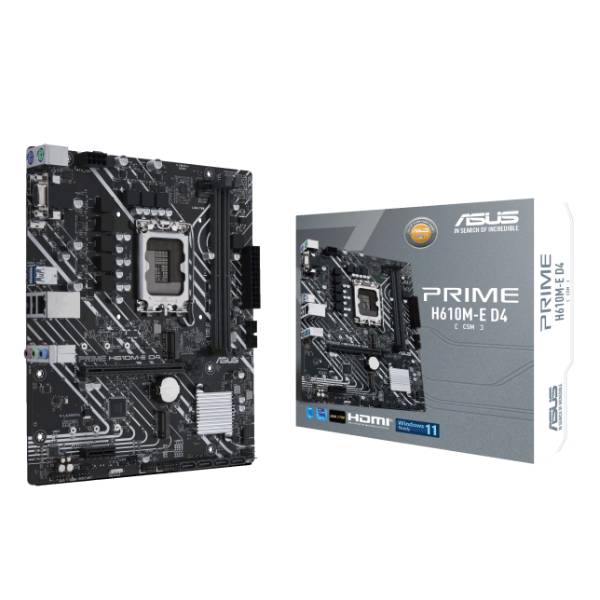

Asus Prime H610M-E D4-CSM M-ATX Motherboard (Intel Socket LGA1700, DDR4)
Asus Prime H610M-E D4-CSM M-ATX Motherboard (Intel Socket LGA1700, DDR4)
Asus Prime H610M-E D4-CSM M-ATX Motherboard (Intel Socket LGA1700, DDR4)
₹12,000 Original price was: ₹12,000.₹6,049Current price is: ₹6,049. (Inclusive of GST) Add to cart
Sale!

Asus Prime H610M-E D4-CSM M-ATX Motherboard (Intel Socket LGA1700, DDR4)

Original price was: ₹12,000.Current price is: ₹6,049. (Inclusive of GST)

-50%
Brand:

In stock

Asus Prime H610M-E D4-CSM M-ATX Motherboard (Intel Socket LGA1700, DDR4)

Intel H610 (LGA 1700) mic-ATX motherboard with DDR4, PCIe 4.0, dual M.2 slots, Realtek 1 Gb Ethernet, DisplayPort, HDMI, D-Sub, USB 3.2 Gen 1 ports, SATA 6 Gbps, COM header, RGB header

  • Intel LGA 1700 socket: Ready for 14th, 13th & 12th Gen Intel® processors
  • Comprehensive cooling: PCH heatsink and Fan Xpert 2+
  • Ultrafast connectivity: 32Gbps M.2 slot, Realtek 1 Gb Ethernet and USB 3.2 Gen 1
  • 5X Protection III: Multiple hardware safeguards for all-round protection
  • ASUS Control Center Express (ACCE) for easier IT endpoint management

ASUS Corporate Stable Model

Asus Prime H610M-E D4-CSM has ASUS Corporate Stable Model (CSM) is a commercial program designed to provide stable and reliable motherboards. Offering up to 36-month product lifecycle support and 6-month end-of-life notice to allow sufficient lead times for your organization to get ready for product transitions. Each purchase of an ASUS CSM motherboard comes with ASUS Control Center Express – server-grade IT management software.

ASUS Control Center Express

Asus Prime H610M-E D4-CSM has ASUS Control Center Express is an integrated IT monitoring and management software designed to deploy faster, simplify IT operations and improve productivity with comprehensive control and user-friendly functions. ASUS Control Center Express is compatible with over 100 ASUS motherboards to provide a high-quality, TCO-optimized solution for your business needs.

Optimize IT endpoint management

Designed to assist IT staff in monitoring and controlling devices within their corporate networks, and facilitate inventory checking in multiple locations remotely

Automate IT maintenance

Allows IT staff to schedule automatic updates of the latest BIOS, software and utilities to specific or all devices at off-peak times, enhancing system stability and IT operational flexibility

Securely manage all of endpoints

Securely manage endpoint configuration, portable storage access and PC software applications by enabling them to create grouping rules on individual devices

Specifications:

ModelPRIME H610M-E D4-CSM
CPUIntel Socket LGA1700 for Intel Core 14th & 13th Gen Processors, Intel Core 12th Gen, Pentium Gold and Celeron Processors

Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0

Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.

ChipsetIntel H610 Chipset
Memory2 x DIMM, Max. 64GB, DDR4 3200/3000/2933/2800/2666

/2400/2133 Non-ECC, Un-buffered Memory*

Dual Channel Memory Architecture

Supports Intel Extreme Memory Profile (XMP)

* Actual memory data rate depends on the CPU types and DRAM modules

Graphics
  • 1 x DisplayPort**
  • 1 x D-Sub port
  • 1 x HDMI® port***

* Graphics specifications may vary between CPU types

** Supports max. 4K@60Hz as specified in DisplayPort 1.4.
*** Supports 4K@60Hz as specified in HDMI 2.1.

Expansion SlotsIntel Core Processors (14th & 13th & 12th Gen)

1 x PCIe 4.0 x16 slot

Intel H610 Chipset

1 x PCIe 3.0 x1 slot

StorageTotal supports 2 x M.2 slots and 4 x SATA 6Gb/s ports

Intel H610 Chipset

M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode)

M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x2 mode)

4 x SATA 6Gb/s ports

Ethernet1 x Realtek 1Gb Ethernet
USBRear USB (Total 4 ports)

  • 2 x USB 3.2 Gen 1 ports (2 x Type-A)
  • 2 x USB 2.0 ports (2 x Type-A)

Front USB (Total 6 ports)

  • 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
  • 2 x USB 2.0 headers support additional 4 USB 2.0 ports
AudioRealtek 7.1 Surround Sound High Definition Audio CODEC*

– Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

– Supports up to 24-Bit/192 kHz playback

Audio Features

– Audio Shielding

– Premium audio capacitors

– Dedicated audio PCB layers
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

Back Panel I/O Ports
  • 2 x USB 3.2 Gen 1 ports (2 x Type-A)
  • 2 x USB 2.0 ports (2 x Type-A)
  • 1 x DisplayPort
  • 1 x D-Sub port
  • 1 x HDMI® port
  • 1 x Realtek 1Gb Ethernet port
  • 3 x Audio jacks
  • 1 x PS/2 Keyboard (purple) port
  • 1 x PS/2 Mouse (green) port
Internal I/O ConnectorsFan and Cooling related

  • 1 x 4-pin CPU Fan header
  • 2 x 4-pin Chassis Fan headers

Power related

  • 1 x 24-pin Main Power connector
  • 1 x 8-pin +12V Power connector

Storage related

  • 2 x M.2 slots (Key M)
  • 4 x SATA 6Gb/s ports

USB

  • 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
  • 2 x USB 2.0 headers support additional 4 USB 2.0 ports

Miscellaneous

  • 1 x RGB header
  • 1 x Clear CMOS header
  • 1 x Front Panel Audio header (AAFP)
  • 1 x COM Port header
  • 1 x S/PDIF Out header
  • 1 x Speaker header
  • 1 x SPI TPM header (14-1pin)
  • 1 x 10-1 pin System Panel header
Special FeaturesASUS 5X PROTECTION III

– DIGI+ VRM

– LANGuard

– Overvoltage Protection

– SafeSlot Core

– Stainless-Steel Back I/O

ASUS Q-Design

– Q-DIMM

– Q-Slot

ASUS Thermal Solution

– Aluminum heatsink design

ASUS Lighting Control
– RGB header

Software FeaturesASUS Exclusive Software

Armoury Crate

AI Suite 3

– Performance And Power Saving Utility

TurboV EVO

EPU

DIGI+ VRM

Fan Xpert 2+

ASUS CPU-Z

IT Management software supported

– ASUS Control Center Express(ACCE)

Norton Anti-virus software (Free Trial version)

WinRAR

UEFI BIOS

ASUS EZ DIY

– ASUS CrashFree BIOS 3

– ASUS EZ Flash 3
– ASUS UEFI BIOS EZ Mode

BIOS128 Mb Flash ROM, UEFI AMI BIOS
ManageabilityWOL by PME, PXE
AccessoriesCables

  • 2 x SATA 6Gb/s cables

Miscellaneous

  • 1 x I/O Shield
  • 1 x M.2 SSD screw package

Installation Media

  • 1 x Support DVD

Documentation

  • 1 x ACC Express Activation Key Card
  • 1 x User guide
Operating SystemWindows 11 64-bit, Windows 10 64-bit
Form FactormATX Form Factor

9.6 inch x 8.3 inch (24.4 cm x 21.1 cm)

Warranty3 Years
Note*** Features, Price, Specifications are subject to change without notice.

***Images used for representation purposes only



Additional information

Weight2 kg
Brand

Asus

Form Factor

M-ATX

Memory Slot

2 Slot

Memory Slot Type

DDR4

Platfrom

Intel

Socket

LGA1700
