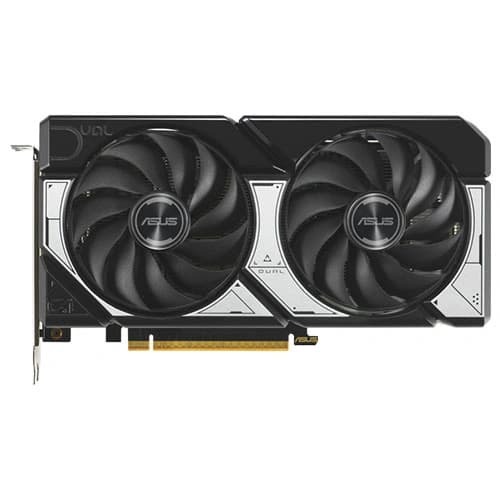

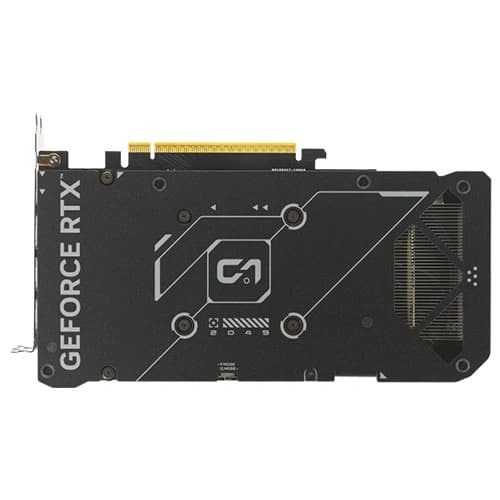

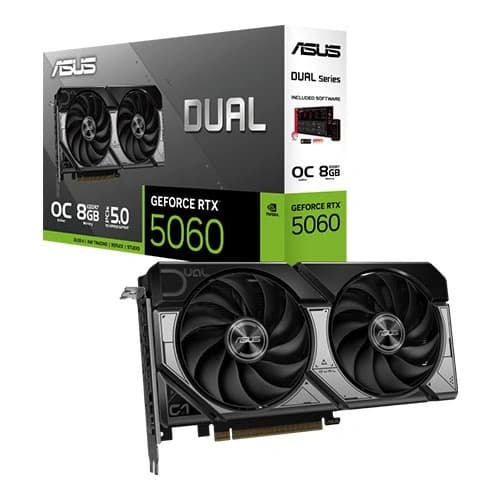

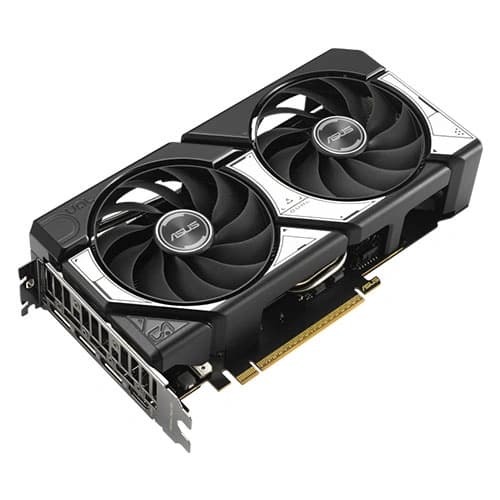

Asus Dual Nvidia GeForce RTX 5060 OC 8GB GDDR7 Dual Fan Graphics Card :
Overview :
The Asus Dual Nvidia GeForce RTX 5060 OC 8GB GDDR7 Dual Fan Graphics Card is engineered for gamers and creators seeking high performance in a compact form factor. Powered by NVIDIA’s Blackwell architecture, it delivers exceptional 1080p gaming experiences, enhanced by DLSS 4 and real-time ray tracing. Asus Dual Nvidia GeForce RTX 5060 OC 8GB GDDR7 Dual Fan Graphics Card dual-fan cooling system, combined with a 2.5-slot design, ensures efficient thermal management, making Asus Dual Nvidia GeForce RTX 5060 OC 8GB GDDR7 Dual Fan Graphics Card ideal for small-form-factor builds.
Key Features :
NVIDIA Blackwell Architecture: Offers advanced graphics performance with 3840 CUDA cores and support for DLSS 4 and ray tracing.
8GB GDDR7 Memory: Provides high-speed memory bandwidth of 448 GB/s for smooth gaming and rendering.
Dual Axial-tech Fans: Ensures efficient cooling with 0dB technology for silent operation during low loads.
Dual BIOS: Allows users to switch between Performance and Quiet modes to suit their needs.
Compact Design: SFF-ready with a 2.5-slot width, fitting easily into smaller cases.
Robust Build: Features a vented backplate, stainless steel bracket, and ASUS GPU Guard for enhanced durability.
Specifications :
| GPU Model | NVIDIA GeForce RTX 5060 |
| CUDA Cores | 3840 |
| Memory | 8GB GDDR7 |
| Memory Interface | 128-bit |
| Memory Bandwidth | 448 GB/s |
| Boost Clock (OC Mode) | 2565 MHz |
| Boost Clock (Default) | 2535 MHz |
| Bus Interface | PCI Express 5.0 x8 |

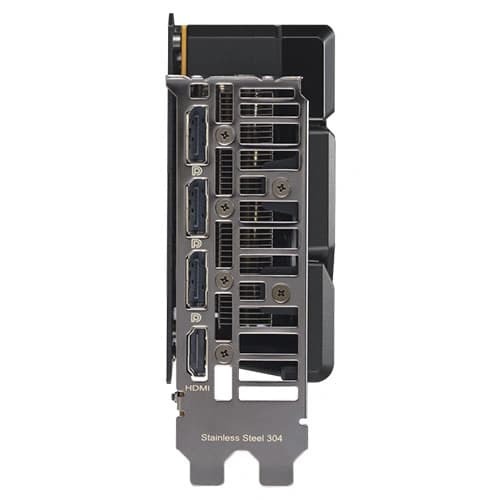

| Outputs | 1x HDMI 2.1b, 3x DisplayPort 2.1b |
| Maximum Resolution | 7680 x 4320 |
| Power Connector | 1x 8-pin |
| Recommended PSU | 550W |
| TDP | 145W |
| Dimensions (LxWxH) | 228 x 123 x 50 mm |
| Slot Width | 2.5-slot |
| Cooling | Dual Axial-tech fans with 0dB technology |
| Software | ASUS GPU Tweak III, MuseTree |
| Warranty | 3 years |
