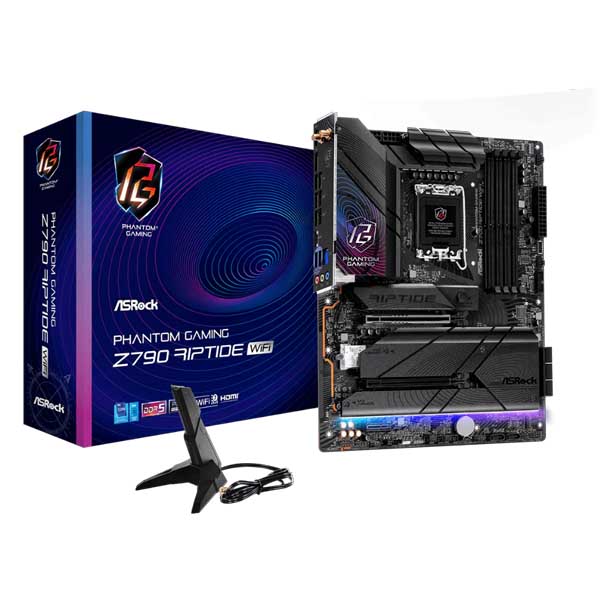

ASROCK Phantom Gaming Z790 Riptide WIFI ATX Motherboard (Intel Socket LGA 1700, DDR5, Wi-Fi 7)
Feature:
- ASROCK Phantom Gaming Z790 Riptide WIFI Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700)
- 16+1+1 Power Phase, SPS for VCore+GT, 8-Layer PCB
- 4 x DDR5 DIMMs, supports up to 8000+(OC)
- 1 PCIe 5.0 x16, 1 PCIe 4.0 x16, 1 PCIe 3.0 x1
- Graphics Output Options: 1 HDMI, 1 DisplayPort, 1 eDP
- Realtek ALC1220 7.1 CH HD Audio Codec,
- Nahimic Audio
- 8 SATA3, 1 Blazing M.2 (PCIe Gen5 x4),
4 Hyper M.2 (PCIe Gen4 x4) - 1 USB 3.2 Gen2x2 Type-C (Front)
2 USB 3.2 Gen2 Type-A (Rear)
1 USB 3.2 Gen1 Type-C (Rear)
6 USB 3.2 Gen1 Type-A (4 Rear, 2 Front) - Intel® Killer 2.5G LAN
- 802.11be WiFi 7 + Bluetooth
- Supports ASRock Lightning Gaming Ports, Toolless Multi-Layer M.2 Heatsink
PHANTOM GAMING Z790 Riptide WiFi
In ASROCK Phantom Gaming Z790 Riptide WIFI the Riptide is named after a specific kind of water current with strong waves that occurs in the ocean, representing the philosophy of sea’s double-side, calm and unlimited strength. Built around powerful gaming-related features, the Riptide has given a powerful smash and immersed users in the sense of stability.
FAST MYSTERIOUS UNBEATABLE
ASROCK Phantom Gaming Z790 Riptide WIFI is designed by gamers and for gamers! Underneath its relentless appearance lie plentiful gaming oriented features and excellent gaming capabilities. It’s all about bringing a new gaming experience to gamers!
Long Lasting 20K Cap
20K black capacitors with lifespans of at least 20,000 hours, provides even longer component durability compares with normal capacitors, extending MTBF to give better system stability.
16+1+1 Power Phase Design
Featuring sturdy components and completely smooth power delivery to the CPU. Plus, it offers unmatched overclocking capabilities and enhanced performance with the lowest temperature for advanced gamers as well.
SPS (Smart Power Stage)
ASROCK Phantom Gaming Z790 Riptide WIFI has Dr.MOS design features the latest SPS (Smart Power Stage) technology. It’s optimized for monitoring current and temperature of each phase, thus delivering smoother and neater power to the CPU with enhanced performance and OC capability.
Specification:
| Unique Feature | – PCIe Gen5 (Graphics, M.2) |
| – Dual Channel DDR5 | |
| Rock-Solid Durability | – Server-Grade Low-Loss PCB |
| – 16+1+1 Power Phase, 90A SPS for VCore+GT with Enlarged Heatsink Armor | |
| – Flexible Integrated I/O Shield | |
| – 20K Long-lasting Black Caps (high quality and conductive polymer capacitors) | |
| Ultrafast Connectivity | – Killer 2.5G LAN, 802.11be Wi-Fi 7 Module |
| – ASRock Lightning Gaming Ports | |
| EZ Update | – ASRock Auto Driver Installer |
| EZ Troubleshooter | – ASRock Post Status Checker |
| CPU | – Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700) |
| – Supports Intel® Hybrid Technology | |
| – Supports Intel® Turbo Boost Max 3.0 Technology | |
| – Supports Intel® Thermal Velocity Boost (TVB) | |
| – Supports Intel® Adaptive Boost Technology (ABT) | |
| Chipset | – Intel® Z790 |
| Memory | – Dual Channel DDR5 Memory Technology |
| – 4 x DDR5 DIMM Slots | |
| – Supports DDR5 non-ECC, un-buffered memory up to 8000+(OC)* | |
| – Max. capacity of system memory: 192GB | |
| – Supports Intel® Extreme Memory Profile (XMP) 3.0 | |
| BIOS | – 128Mb AMI UEFI Legal BIOS with GUI support |
| Graphics | – Intel® Xe Graphics Architecture (Gen 12) |
| – 1 x eDP 1.4, supports max. resolution up to Full HD 60Hz | |
| – 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz | |
| – 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz | |
| Audio | – 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec) |
| – Impedance Sensing on Rear Out port | |
| – Individual PCB Layers for R/L Audio Channel | |
| – Nahimic Audio | |
| LAN | – 2.5 Gigabit LAN 10/100/1000/2500 Mb/s |
| – Killer E3100G | |
| – Supports Killer LAN Software | |
| Wireless LAN | – 802.11be 2×2 Wi-Fi 7 Module |
| – Supports IEEE 802.11a/b/g/n/ac/ax/be | |
| – Supports 2.4GHz/5GHz/6GHz frequency band* | |
| – Supports 320MHz channel bandwidth with 6GHz frequency band* | |
| – 1 antenna to support 2 (Transmit) x 2 (Receive) diversity technology | |
| – Supports Bluetooth 5.4** | |
| – Supports MU-MIMO | |
| Slots | CPU: |
| – 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode* | |
| Chipset | – 1 x PCIe 4.0 x16 Slot (PCIE2), supports x4 mode* |
| – 1 x PCIe 3.0 x1 Slot (PCIE3)* | |
| – 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVio/CNVio2 (Integrated WiFi/BT) | |
| – Supports AMD CrossFire™ | |
| Storage | CPU: |
| – 1 x Blazing M.2 Socket (M.2_GEN5, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode* | |
| – 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* | |
| Chipset: | |
| – 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* | |
| – 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* | |
| – 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* | |
| – 8 x SATA3 6.0 Gb/s Connectors | |
| RAID | – Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
| – Supports RAID 0, RAID 1 and RAID 5 and RAID 10 for M.2 NVMe storage devices | |
| USB | – 1 x USB 3.2 Gen2x2 Type-C (Front) |
| – 2 x USB 3.2 Gen2 Type-A (Rear) | |
| – 1 x USB 3.2 Gen1 Type-C (Rear) | |
| – 6 x USB 3.2 Gen1 Type-A (4 Rear, 2 Front) | |
| – 6 x USB 2.0 (2 Rear, 4 Front) | |
| Connector | – 1 x eDP Signal Connector |
| – 1 x Thermistor Cable Header | |
| – 1 x SPI TPM Header | |
| – 1 x Power LED and Speaker Header | |
| – 1 x RGB LED Header* | |
| – 3 x Addressable LED Headers** | |
| – 1 x CPU Fan Connector (4-pin)*** | |
| – 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**** | |
| – 1 x Chassis Fan Connector (4-pin)***** | |
| – 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)****** | |
| – 1 x 24 pin ATX Power Connector | |
| – 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector) | |
| – 1 x Front Panel Audio Connector | |
| – 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card) | |
| – 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) | |
| – 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) | |
| – 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) | |
| Rear Panel I/O | – 2 x Antenna Mounting Points |
| – 1 x HDMI Port | |
| – 1 x DisplayPort 1.4 | |
| – 2 x USB 3.2 Gen2 Type-A Ports (10 Gb/s) | |
| – 1 x USB 3.2 Gen1 Type-C Port | |
| – 4 x USB 3.2 Gen1 Type-A Ports (USB32_56 are Lightning Gaming Ports.) | |
| – 2 x USB 2.0 Ports | |
| – 1 x RJ-45 LAN Port | |
| – HD Audio Jacks: Line in / Front Speaker / Microphone | |
| Software and UEFI | Software |
| – ASRock Motherboard Utility (Phantom Gaming Tuning) | |
| – Killer Control Center | |
| – ASRock Polychrome SYNC* | |
| UEFI | – ASRock EZ Mode |
| – ASRock Full HD UEFI | |
| – ASRock My Favorites in UEFI | |
| – ASRock Auto Driver Installer | |
| – ASRock Instant Flash | |
| – ASRock Easy RAID Installer | |
| Accessories | – 1 x User Manual |
| – 2 x SATA Data Cables | |
| – 1 x ASRock WiFi 2.4/5/6 GHz Antenna | |
| – 1 x ARGB Splitter Cable | |
| – 1 x Thermistor Cable | |
| Form Factor | – ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm |
| – 8 Layer PCB | |
| OS | – Microsoft Windows® 10 64-bit / 11 64-bit |
| Certifications | – FCC, CE |
| – ErP/EuP ready (ErP/EuP ready power supply is required) |
