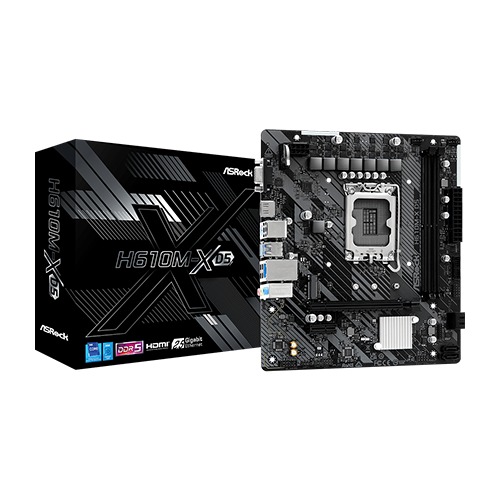

ASRock H610M-X D5 M-ATX Motherboard (Intel Socket LGA1700, DDR5)
Feature:
- Supports 14th, 13th & 12th Gen Intel Core Processors (LGA1700)
- 6+1+1 Power Phase
- 2 x DDR5 DIMMs
- Supports Dual Channel, up to 5600
- 1 PCIe 4.0 x16, 1 PCIe 3.0 x1
- Graphics Output Options: HDMI, D-Sub
- Realtek ALC897 7.1 CH HD Audio Codec
- 4 SATA3, 1 Ultra M.2 (PCIe Gen3x4)
- 4 USB 3.2 Gen1 Type-A (4 Rear, 2 Front),
- 6 USB 2.0 (4 Rear, 2 Front)
- Realtek 2.5G LAN
The ASRock H610M-X D5 motherboard provides a high-value solution, balancing performance and versatility within a compact form factor. It’s highly capable in handling a wide range of tasks, from professional productivity to everyday usage, striking an excellent balance between affordability, reliability, and efficiency.
6+1+1 Power Phase Design
Featuring sturdy components and completely smooth power delivery to the CPU, offering enhanced performance for gamers.
Ultra M.2 32Gb/s (PCIe Gen3 x4)
The PCIe Gen3 x4 Ultra M.2 interface pushes data transfer speeds up to 32Gb/s.
Dragon 2.5 Gb/s LAN
The intelligent 2.5Gb/s LAN platform is built for maximum networking performance for the demanding requirements of home networking, content creators, online gamers and high-quality streaming media. Boost networking performance up to 2.5X the bandwidth compared to the standard gigabit Ethernet, you’ll enjoy the faster and uncompromised connectivity experience for gaming, file transfers and backups.
Auto Driver Installer
No need to worry about lack of disk drive! Asrock preinstall LAN driver to ensure that you are able to install all drivers needed in an easier way than using SCD.
step1: Install Auto Driver Installer
step2: Update drivers needed
step3: Done!
Dual Graphics Outputs
Complete with two types of most used connectors! Packed with a D-Sub + HDMI combo, you have more graphics output options now.
HDMI 4k @60Hz
Supports the most recent HDMI 4K 60Hz graphics output specification. With the larger bandwidth and increased frame rate, the motion on your screen becomes more fluid and less blurry.
Specification:
| Platform | INTEL |
| Socket | LGA1700 |
| Cpu Type | 14th Gen,13th Gen,12th Gen |
| Chipset | H610 |
| Memory Speed | up to 5600 |
| Max Memory Support | 96 GB |
| Supported Memory Type | DDR5 |
| Channel Supported | Dual Channel |
| Memory Feature | 2 x DDR5 DIMM Slots 13th Gen Intel Core Processors support DDR5 non-ECC, un-buffered memory up to 5600 12th Gen Intel Core Processors support DDR5 non-ECC, un-buffered memory up to 4800 |
| Graphics Port | 2 |
| Expansion Slots | CPU: 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode Chipset: 1 x PCIe 3.0 x1 Slot (PCIE2) * Supports NVMe SSD as boot disks |
| Back Panel I/O Ports | 1 x PS/2 Mouse/Keyboard Port 1 x D-Sub Port 1 x HDMI Port 2 x USB 3.2 Gen1 Type-A Ports 4 x USB 2.0 Ports 1 x RJ-45 LAN Port HD Audio Jacks: Line in / Front Speaker / Microphone |
| Internal I/O Connector | 1 x SPI TPM Header 1 x Chassis Intrusion and Speaker Header 1 x CPU Fan Connector (4-pin) 1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control) 1 x 24 pin ATX Power Connector 1 x 8 pin 12V Power Connector 1 x Front Panel Audio Connector 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) * CPU_FAN1 supports the fan power up to 1A (12W). ** CHA_FAN1/WP supports the fan power up to 2A (24W). CHA_FAN1/WP can auto detect if 3-pin or 4-pin fan is in use. |
| Form Factor | Micro-ATX |
| Warranty | 3 Years |
| Note | Features, Price and Specifications are subject to change without notice. Images used for Representation Purpose Only. |
