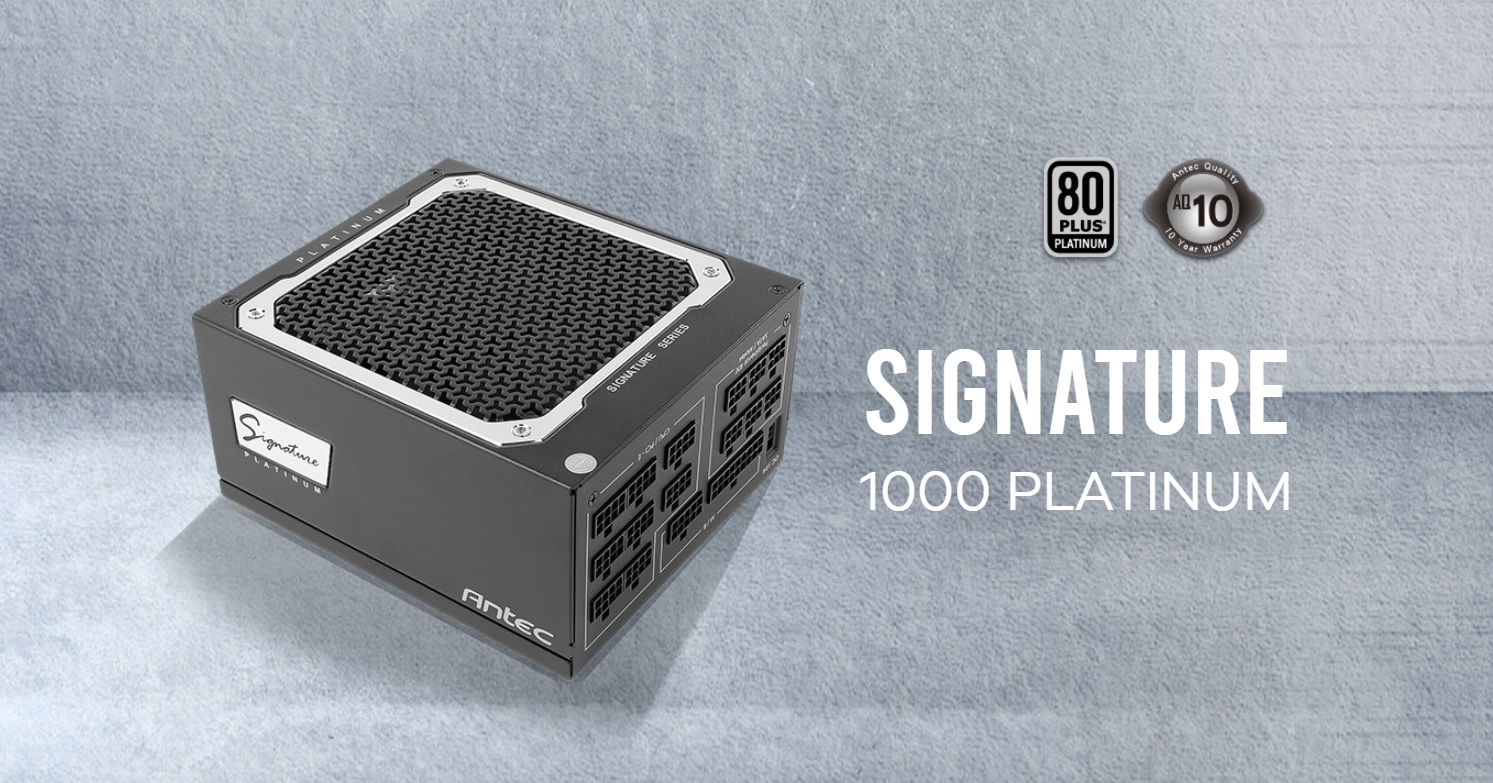

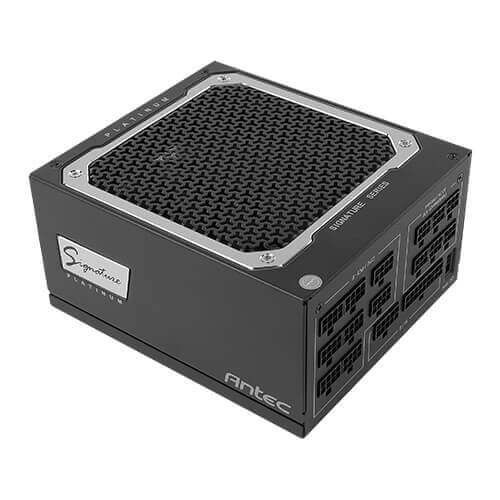

Antec SP1000 80 Plus Platinum Power Supply :
Antec SP1000 80 Plus Platinum Equipped with superior features that ensure peak performance for the enthusiast and gaming-oriented segment, the Signature power supply Series boasts unparalleled stability and 80 PLUS® Platinum-certified efficiencies. Advanced thermal control with the Zero RPM mode enables the optimal balance between silence and cooling. The CircuitShield™ suite of industrial-grade protections ensures that the power delivered to your system is safe and reliable in any environment. Signature Series are a great choice for a reliable and efficient PC system for gamers and professionals.
Overview :

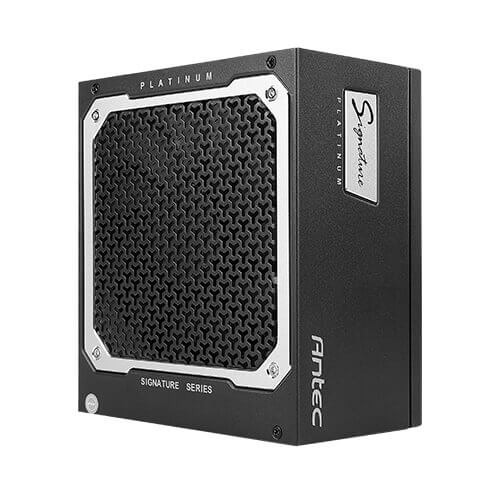

FDB 135mm Silent Fan
Antec SP1000 80 Plus Platinum Featuring whisper-quiet, fluid dynamic bearing 135mm fan provides high airflow with durability and longevity.

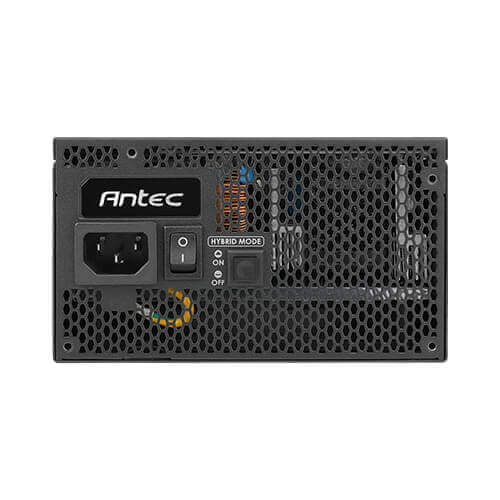

Zero RPM Mode
Antec SP1000 80 Plus Platinum Have Zero RPM fan mode further ensures a longer-lasting and quieter system by using thermal sensors to activate the fan only when you need it.
100% Top-Grade Japanese Capacitors
Antec SP1000 80 Plus Platinum Achieve unprecedented tight voltage regulation & low ripple & noise to maximize your system’s performance.
PhaseWavetm Design
A server-class full-bridge LLC design with a synchronous rectification based on a DC-DC topology.

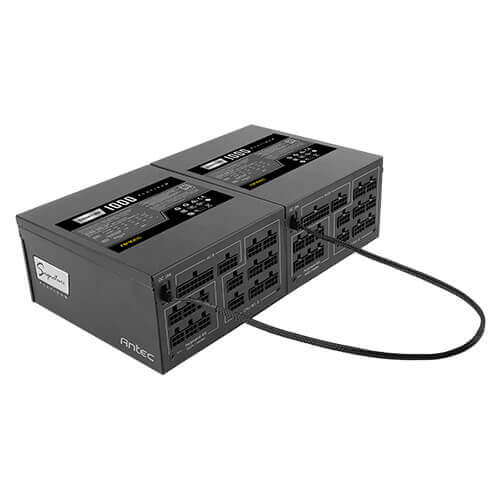

OC Linktm Feature
Allows 2 Signature PSUs to work in tandem to power the most demanding systems.
10-year Warranty
This new PSU line from Antec pushes the standard for excellence with the circuit shield suite of industrial protections and is backed by a 10-year warranty.

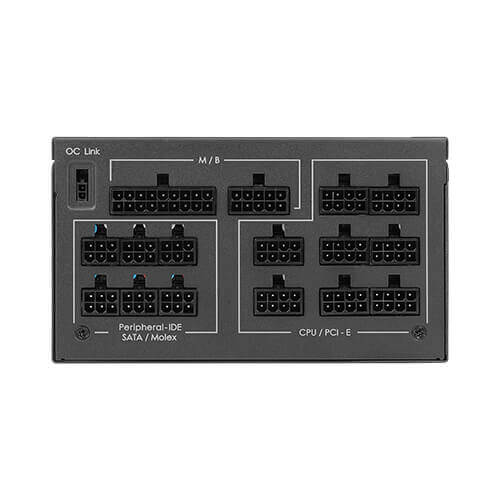

Full Modular Cable Management
Enables users to use only the cables which are needed and help clear out excess cables that can obstruct and reduce airflow.
Specifications :
Product Name | SP1000 Platinum |
Model Name | X8000A505-18 |
Type | ATX |
Modular | Fully |
Dimension (W x L x H) | 150 x 170 x 86mm |
Warranty | 10 years |
Input Voltage | 100-240 |
Input Current | 13A ~ 6.5A |
Input Frequency Range | 47Hz ~ 63Hz |
PFC | APFC |
PFC at half / full load: | |
>0.95 at AC 110v 60Hz(typical) | |
>0.90 at AC 230v 50Hz(typical) | |
Power Good Signal | 100 ~ 500mS |
Efficiency | At 20% / 50% / 100% load AC 115V internal, |
the power efficiency should be at least 90% / 92% / 89%. | |
Protection | OCP / OVP / UVP / SCP / OPP / OTP / SIP / NLO |
Output Capacity | 1000W |
Operation Temperature | 0 ~ 40°C |
Regulatory | cTUVus / TUV / CB [IEC62368 Compliant] / CE / |
FCC / BSMI / 3C / RCM | |
Fan | 135 x 135 x 25(mm) FDB Silent Fan |
Certifications | 80 Plus Platinum |
Connector | 1 x MB 24(20+4) Pin |
2 x 8(4+4) Pin EPS 12V | |
8 x 8(6+2) Pin PCI-E | |
14 x SATA | |
5 x Molex | |
1 x FDD | |
UPC# | 0-761345-11700-5 |
Net Weight | 2.11 Kgs |
Gross Weight | 3.93 Kgs |
