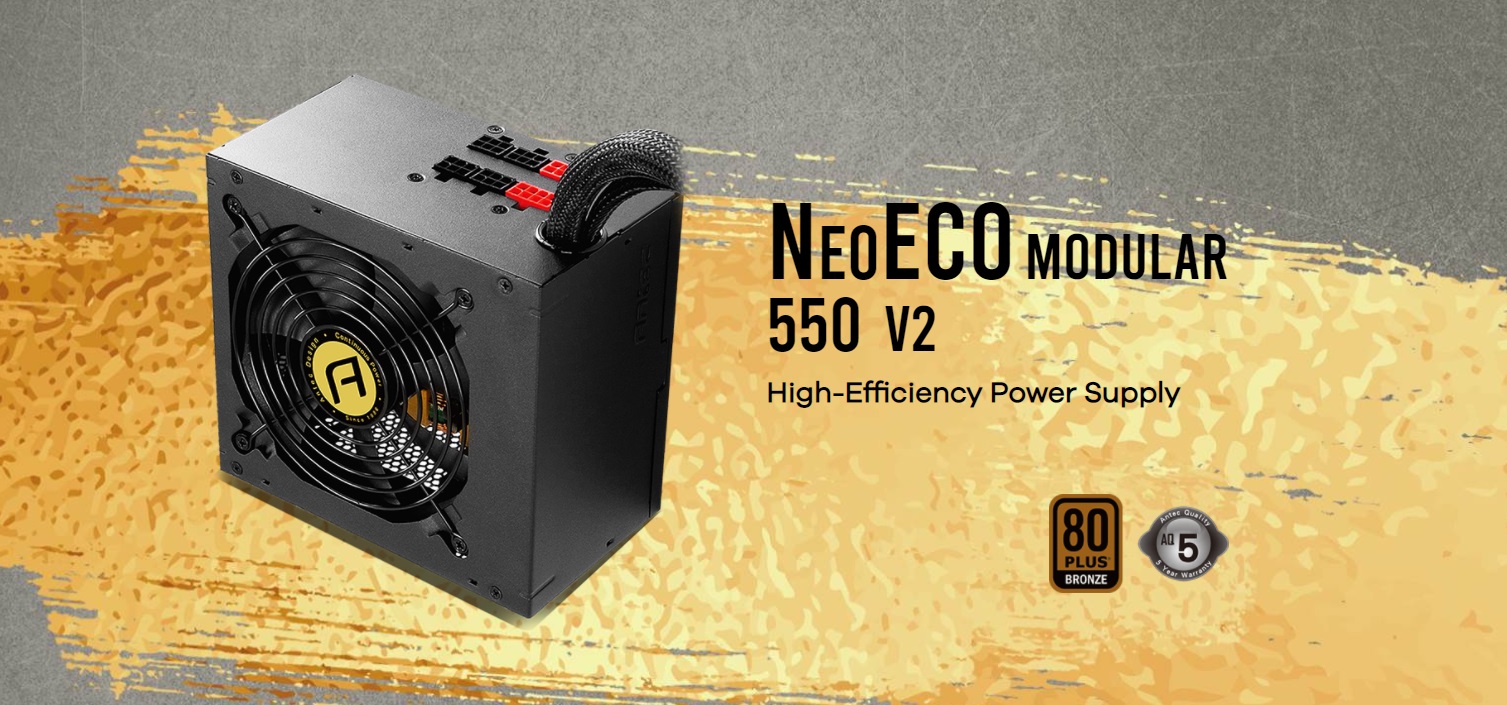

Antec NE550M V2 80 Plus Bronze Power Supply :
Get economical power today with the Antec NE550M V2 80 Plus Bronze Modular, Antec’s high-efficiency power supply solution. Featuring 80 PLUS® BRONZE certification, a quiet 120 mm fan, Japanese capacitors and Universal Input with Active Power Factor Correction, Antec NE550M V2 80 Plus Bronze Modular gives you a cooler, quieter system, all powered by Continuous Power.
Overview :
80 PLUS Bronze Certified
Up to 88% efficient, to reduce your electricity bill.
Japanese Heavy-duty Caps
Japanese High-performance capacitors ensure tightest DC stability and regulation.
Advanced Hybrid Cable Management
Improves airflow and reduces clutter.
120mm silent Fan
Whisper-quiet high-quality silent fan with long lifetime.
stealth flat cable
For easier & better cable management.
Specifications :
| Model | NE550M V2 |
| Type | ATX 12V 2.4 |
| Modular | Semi-Modular |
| Dimension | 140(L) x 150(W) x 86(H) |
| Warranty | 5 years |
| Input Voltage | 100-240 VAC |
| Input Current | 8A-4A |
| Input Frequency Range | 47Hz-63Hz |
| PFC | Active PFC |
| Power Good Signal | 100-500ms |
| Efficiency | Up to 88% |
| Protection | OCP / OVP / UVP / SCP / OPP / NLO |
| Output Capacity | 550W |
| Operation Temperature | 0-40°C |
| Regulatory | cTUVus / TUV / CB[IEC62368 Compliant] / RCM / |
| CE / CCC / BSMI / FCC | |
| Fan | 120 mm Silence Fan |
| Certifications | 80 Plus Bronze |
| Connector | 1 x MB 24(20+4) Pin |
| 1 x 8(4+4) Pin EPS 12V | |
| 2 x 8(6+2) Pin PCI-E | |
| 5 x SATA | |
| 3 x Molex | |
| Net Weight | 2.20 Kgs |
| Gross Weight | 2.33 Kgs |
| UPC# | 0-761345-10573-6 |
