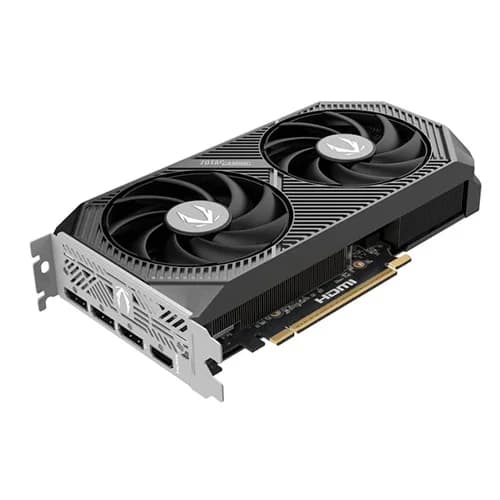

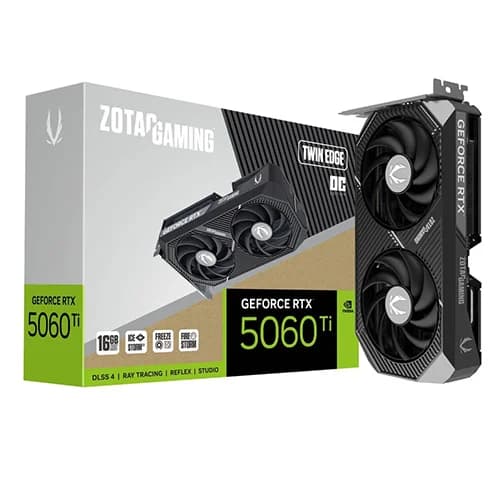

Zotac Nvidia GeForce RTX 5060 Ti Twin Edge OC 16GB GDDR7 Dual Fan Graphics Card :
Overview :
The Zotac Nvidia GeForce RTX 5060 Ti Twin Edge OC 16GB GDDR7 Dual Fan Graphics Card is a compact dual-fan graphics card powered by NVIDIA’s Blackwell architecture. With 16GB of high-speed GDDR7 memory and support for DLSS 4, Zotac Nvidia GeForce RTX 5060 Ti Twin Edge OC 16GB GDDR7 Dual Fan Graphics Card delivers smooth performance for gaming and creative tasks. The card features IceStorm 2.0 cooling, BladeLink fans, and a metal backplate, ensuring efficient thermal management and durability. Zotac Nvidia GeForce RTX 5060 Ti Twin Edge OC 16GB GDDR7 Dual Fan Graphics Card compact design makes it suitable for small form factor builds.
Key Features :
NVIDIA Blackwell Architecture: Provides significant performance and efficiency improvements.
16GB GDDR7 Memory: Offers ample high-speed memory for demanding applications.

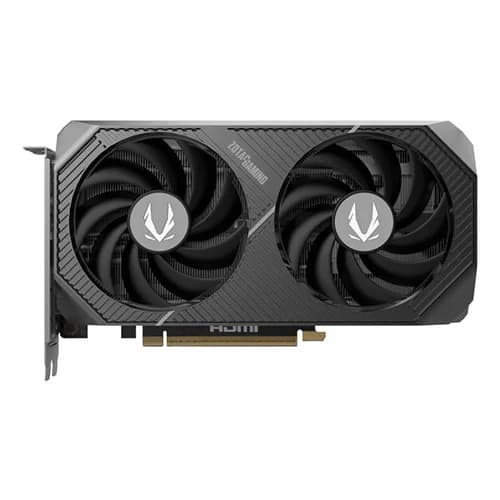

Dual-Fan Cooling: IceStorm 2.0 with BladeLink fans ensures efficient cooling.
DLSS 4 Support: Utilizes AI to boost frame rates and generate high-quality images.
Real-Time Ray Tracing: Delivers realistic lighting and shadows for immersive experiences.
PCIe 5.0 Interface: Ensures high-bandwidth communication with the latest motherboards.
Compact Form Factor: Suitable for small form factor (SFF) builds.

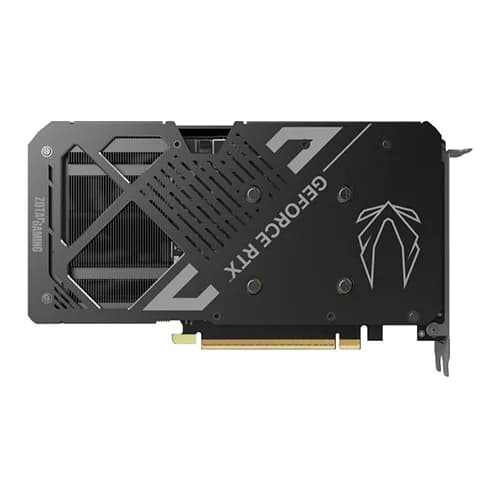

Metal Backplate: Adds structural rigidity and aids in heat dissipation.
FireStorm Utility: Provides tools for monitoring, tweaking, and optimizing GPU performance.
Specifications :
| Graphics Processing Unit | NVIDIA® GeForce RTX™ 5060 Ti |
| Architecture | Blackwell |
| CUDA® Cores | 4608 Units |
| Engine Clock | 2602 MHz |
| Memory Speed | 28 Gbps |
| Memory | 16GB GDDR7 |
| Memory Bus | 128-bit |
| Interface | PCI Express® Gen 5 x8 |

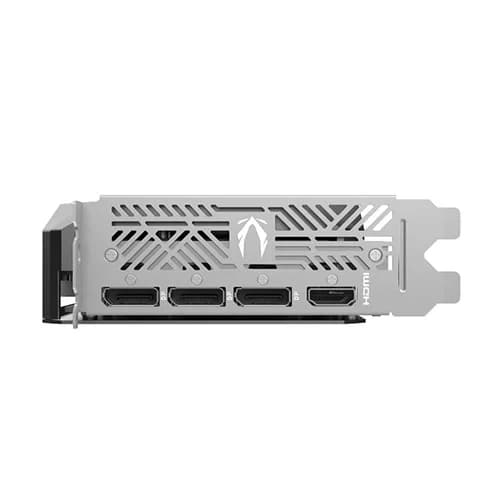

| Display Outputs | 3 x DisplayPort v2.1b (up to 4K 480Hz or 8K 165Hz with DSC), 1 x HDMI™ v2.1b (Supports 4K 480Hz HDR or 8K 120Hz HDR with DSC, and Gaming VRR as specified in the HDMI 2.1b Specification) |
| HDCP Support | Yes (2.3) |
| Power Consumption (TDP) | 180 W |
| Power Connectors | 1 x 8-pin |
| Recommended PSU | 600 W |
| Cooling System | IceStorm 2.0 with BladeLink Fans, FREEZE Fan Stop |
| Slot Size | 2 |
| DirectX Version Support | 12 Ultimate |
| OpenGL Version Support | 4.6 |
| Maximum Displays | 4 |
| Digital Maximum Resolution | 7680 x 4320 (8K UHD) |
| Supported OS | Windows 11 / Windows 10 64-bit (v1809 November 2018 or later) |
| Card Dimensions (L x W x H) | 220.5mm x 120.25mm x 41.6mm / 8.7″ x 4.7″ x 1.6″ |
| Accessories | User Manual |
| Warranty | 5 Years |
