Thermaltake TOUGHAIR 110 CPU Air Cooler :
Thermaltake TOUGHAIR 110 A top flow designed CPU cooler equipped with an optimized 120 mm high static pressure fan and a newly designed heat sink, which guarantees its outstanding performance.
Overview :

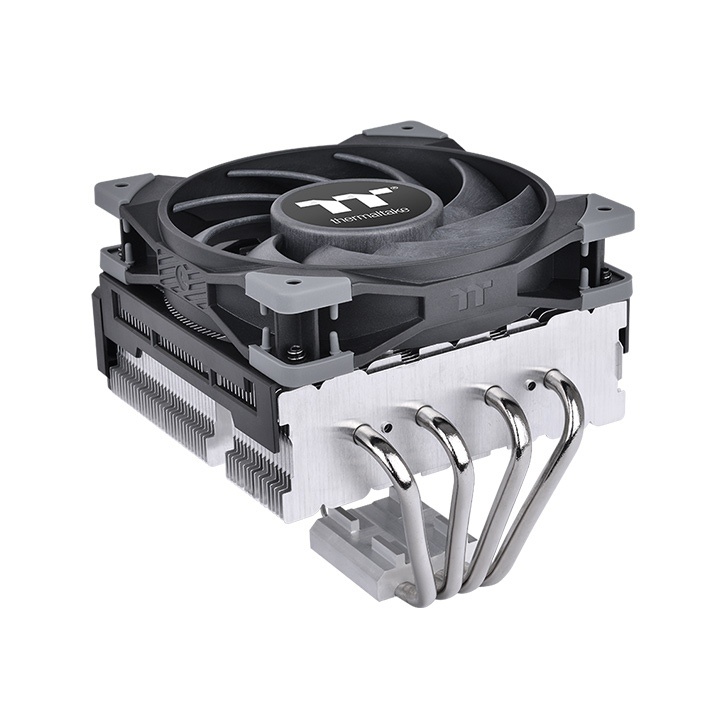

Top-flow design
TOUGHAIR 110 is a 114 mm tall top-flow air cooler that supports up to 140 W. The top-flow design is also beneficial in cooling other components on the motherboard while cooling the CPU.

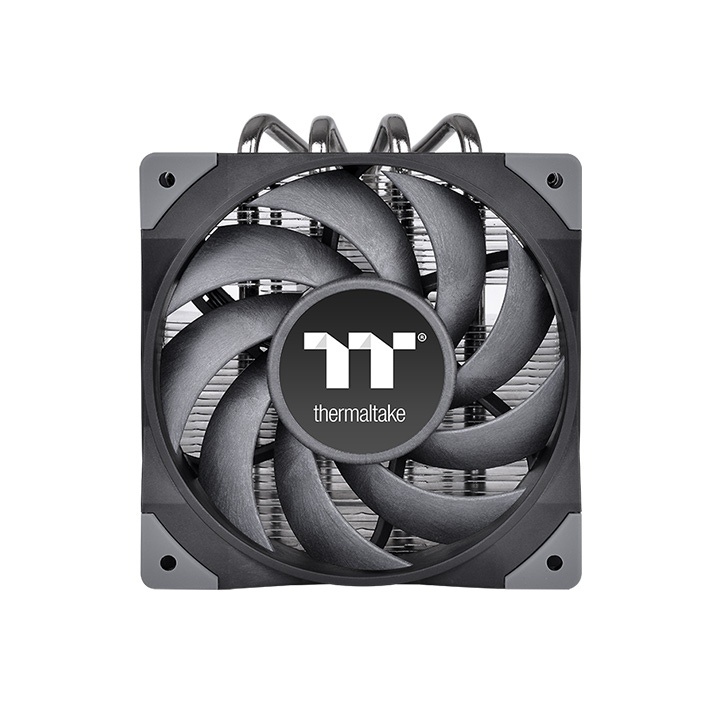

Enhanced 120 mm high static pressure Fan
TOUGHAIR series utilizes high static pressure fans, which leverages the TOUGHFAN 12 design and boosts the fan speed to 2000 RPM, providing a new level of cooling performance to our CPU cooler.
Asymmetric Fin Structure
The fin is designed with an asymmetric structure that allows larger air intake through the fins. This design lowers the air turbulence and straightens out the airflow making it easier to disperse heat from the fins, delivering superb cooling performance.

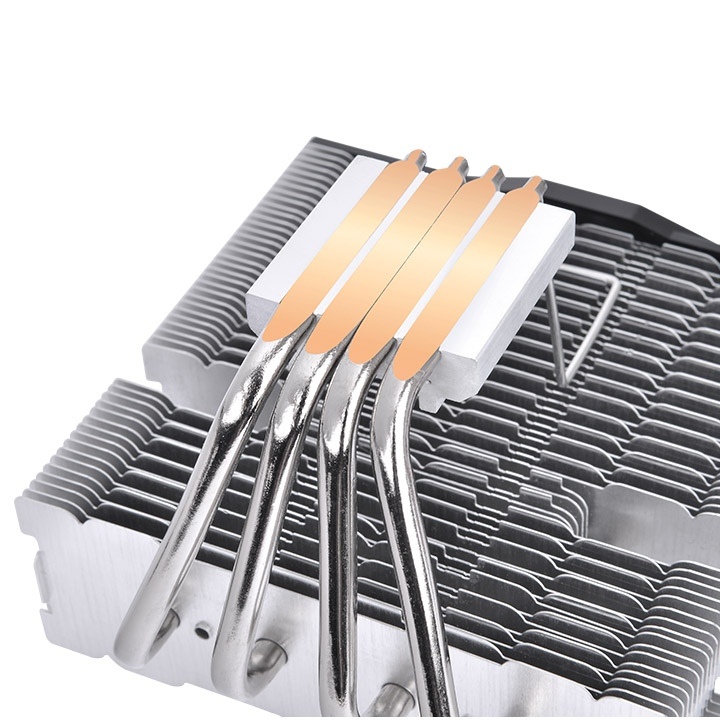

High-Performance copper heat pipes
4 x Ø6 mm heat pipes directly touch the CPU and thermal paste, providing direct and outstanding heat dissipation to the CPU.

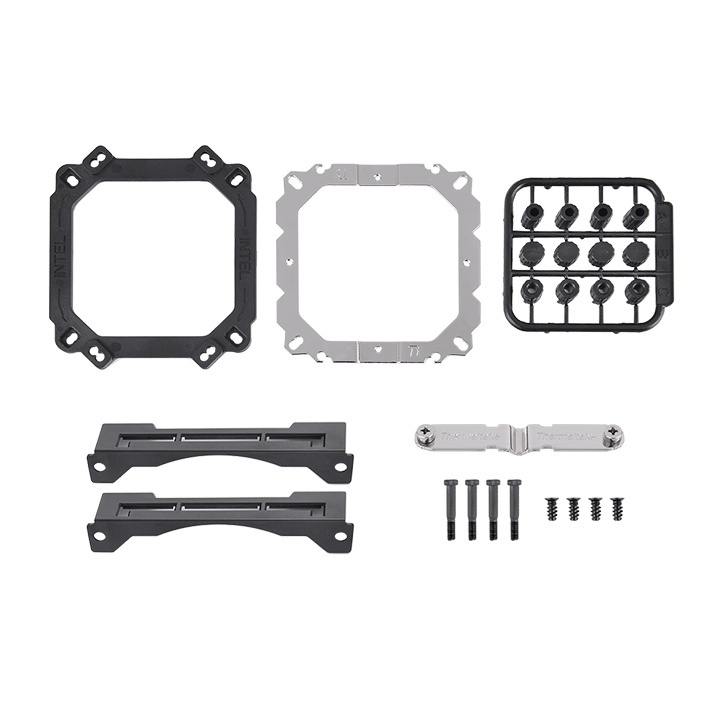

Universal Compatibility
TOUGHAIR Series is designed to fit Intel and AMD sockets, including the following models:
Intel LGA 1700/1200/1156/1155/1151/1150
AMD AM4/AM3+/AM3/AM2+/AM2/FM2/FM1
Specifications :
| P/N | CL-P073-AL12BL-A |
| COMPATIBILITY | Intel LGA 1700/1200/1156/1155/1151/1150 |
| AMD AM4/AM3+/AM3/AM2+/AM2/FM2/FM1 | |
| DIMENSIONS | 137.7 x 123.6 x 114.1 mm ( L x W x H) |
| HEATSINK MATERIAL | Aluminum Fins |
| Copper Heatpipes | |
| HEATPIPE | Φ6mm x 4 pcs |
| FAN DIMENSION | 120 x 120 x 25 mm ( L x W x H) |
| FAN QUANTITY | 1pcs |
| FAN SPEED | PWM 500 ~ 2000 RPM |
| RATED VOLTAGE | 12V |
| START VOLTAGE | 9.0 V |
| RATED CURRENT | 12.48 AM |
| POWER INPUT | 5.76 W |
| AIR FLOW | 58.35 CFM |
| AIR PRESSURE | 2.41 mm-H2O |
| ACOUSTICAL NOISE | 23.6 dBA |
| LIFE TIME/FAN LIFE TIME | 40,000 hours |
| PIN CONNECT | 2510 – 4Pin |
| COOLING POWER | 140 W |
