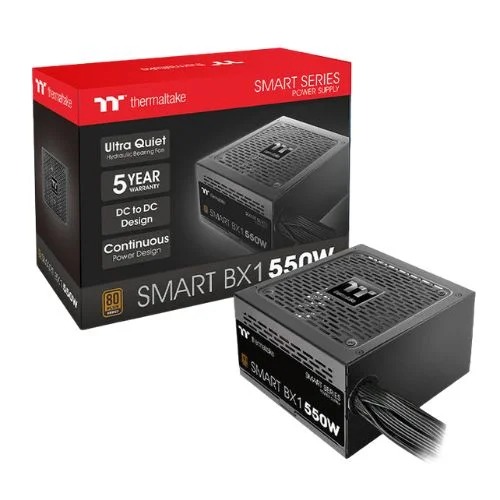

Thermaltake Smart BX1 550W 80 Plus Bronze ATX Non-Modular Power Supply – DC To DC Version
Feature:
Built to deliver 80 PLUS with 85% power efficiency, the Smart BX1 series is available in 550W – 750W models. With an ample 5-year warranty, the Smart BX1 is able to satisfy the market, where value-oriented users are looking for a new power supply with reliable performance.
Ultra Quiet 120mm
Fan Equipped with 120mm cooling fan with intelligent RPM control guarantees cool performance and silent operation.
High-Quality 105°C/221°F main capacitor.
Providing great durability as well as offering the highest stability, while remaining reliable.
High Amperage Single +12V Rail & DC to DC Design
Thermaltake Smart BX1 550W is equipped with powerful +12V rails, superior performance under all types of system loading. The use of DC to DC circuit design provides very stable operation and enhanced voltage regulation.
| AC INPUT | |
|---|---|
| Input Voltage | 100-240Vac |
| Input Current | 12A Max. |
| Frequency | 50Hz – 60Hz |
| DC OUTPUT | |
| Output Rail | Max Output Current |
| +3.3V | 18A |
| +5V | 18A |
| +12V | 45.8A |
| -12V | 0.3A |
| +5VSB | 0.25A |
| Max Output Power | |
| +3.3V / +5V | 100W |
| +12V | 549.6W |
| -12V | 3.6W |
| +5VSB | 12.5W |
| Total Power | |
| Total Power | 550W |
Built-in Industrial Grade Protection
To protect the hardware, Smart BX1 series is built with industry grade protections: OCP(Over Current Protection), OVP (Over Voltage Protection), UVP(Under Voltage Protection), OPP(Over Power Protection), SCP(Short Circuit Protection), OTP(Over Temperature Protection).
80 PLUS Bronze Certified and Intel C6/C7 States Ready
Smart BX1 Series saves energy through its high energy efficiency of up to 85% and is 80 PLUS® Bronze certified. It has been optimized to work with all generations of Intel’s processors to achieve maximum energy saving.
Specification:
| Wattage | 550 Watt |
| Series | SMART SERIES |
| Certification | 80 Plus Bronze |
| Modular | NON MODULAR |
| PCIe Connector (6+2) | 2 |
| SATA Connector | 6 |
| Peripheral (4-Pin) | 4 |
| Warranty | 5 Years |
| Note*** | Features, Price, Specifications are subject to change without notice. Images used for representation purposes only |
