Thermaltake S100 Black Cabinet :
Thermaltake S100 Black is a simple yet elegant Micro-ATX case offering a sleek design and hinged tempered glass panel. A 200mm fan can be installed up top or up to five 120mm or four 140mm fans.

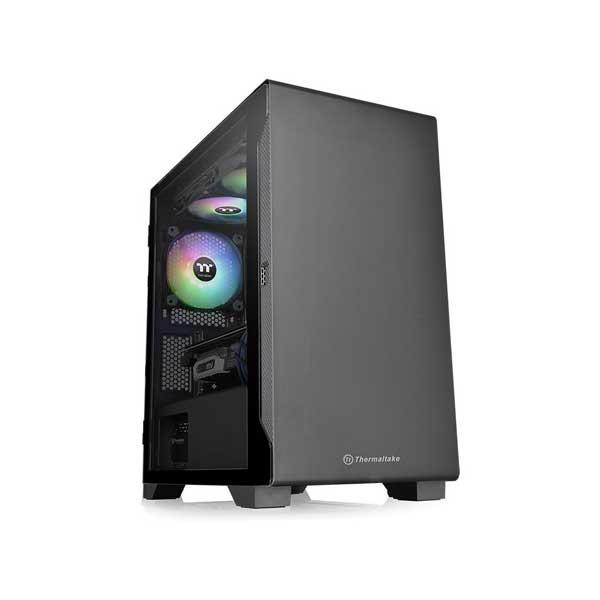

Thermaltake S100 Black Tempered Glass Edition Micro Chassis

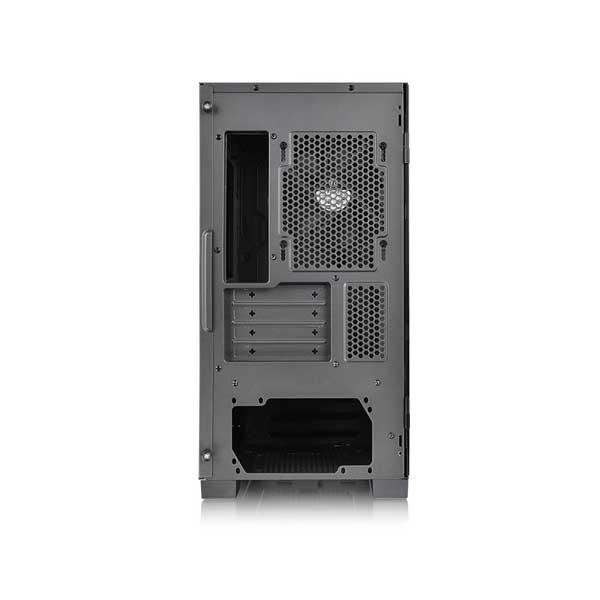

The Thermaltake S100 Black Micro Chassis brings elegance to your micro-ATX rig! Fusing steel construction and sleek design in a compact size, the S100 TG gives your small form-factor build a stylish look in a small footprint. A magnetic hinged tempered glass panel gives you a panoramic view of your components while making accessing them simple. The vented front panel gives your fans ample room for airflow, and the preinstalled 120mm fan at the rear and perforated top panel give your case more ways to exhaust heat. The S100 TG’s roomy interior can fit CPU coolers up to 165mm in height, radiators up to 280mm and GPUs up to 330mm long. The S100 TG supports up to five 120mm fans or four 140mm fans at the top and front; up to one 200mm fan is supported up top. With features like these, it’s not hard to see how the S100 TG Snow can bring elegance to your next M-ATX build.
Slim and Compact Design

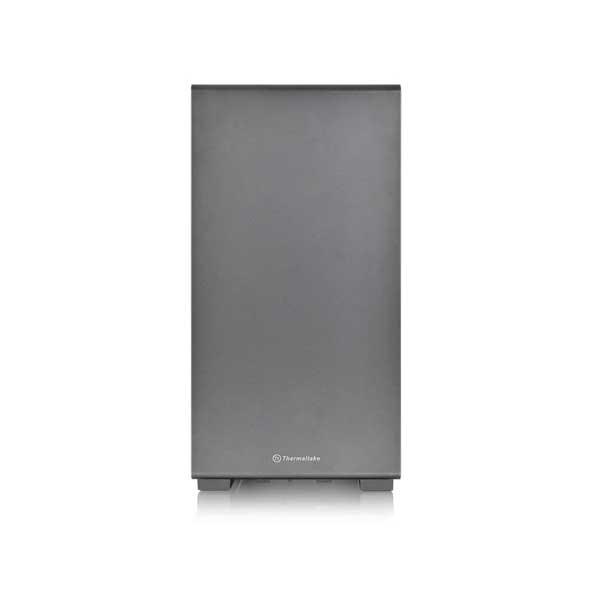

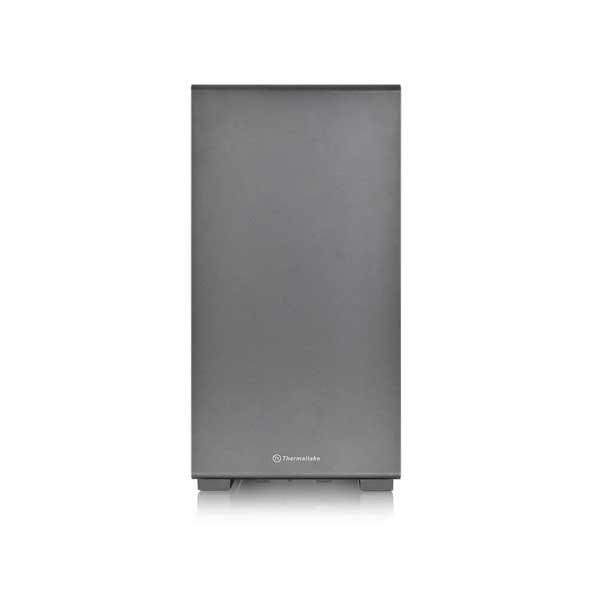

The S100 TG’s full steel construction and compact design are complemented by the sleek front panel to create a simple yet elegant look.
Built-in PSU Shroud
The built-in ventilated PSU shroud gives your components a cleaner look by hiding those unsightly cables.

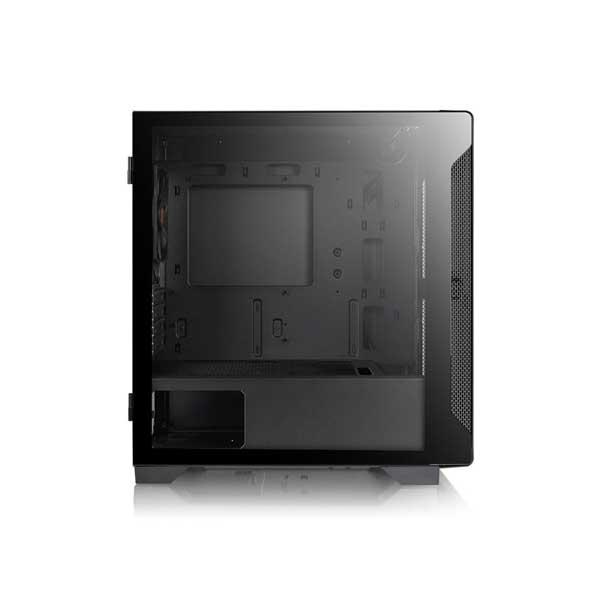

Enjoy an unobstructed view of your internal components with a magnetic hinged 4mm tempered glass panel.
A magnetic filter at the top panel and an additional filter at the bottom help protect your system from dust, keeping your system looking clean.
The roomy interior of the S100 TG can support CPU coolers up to 165mm in height, Graphics cards up to 330mm long and power supplies up to 160mm long. It comes with a preinstalled 120mm rear exhaust fan and can house up to five 120mm fans or four 140mm fans; up to one 200mm fan is supported up top, and up to a 280mm radiator will fit at the top and front.
Handy I/O Ports

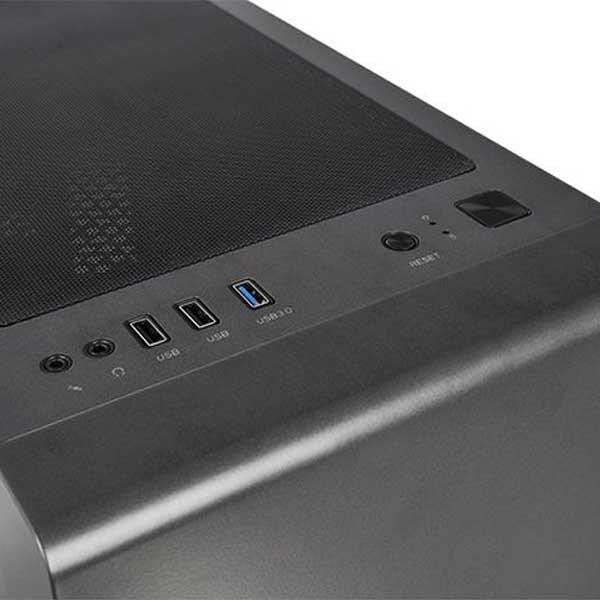

Easily connect your favorite peripherals or devices with a USB 3.0 and two USB 2.0 ports on the top-front panel.
|CASE TYPE||Micro Case|
|DIMENSION (H X W X D)||441 x 220 x 411 mm|
|(17.36 x 8.66 x 16.18 inch)|
|NET WEIGHT||6.1 kg / 13.45 lbs.|
|SIDE PANEL||Tempered Glass x 1|
|COLOR||Exterior & Interior : Black|
|COOLING SYSTEM||Rear (exhaust) :|
|120 x 120 x 25 mm fan|
|(1000rpm, 16 dBA)|
|-HIDDEN||2 x 2.5” (HDD Bracket); 2 x 3.5“ or 2 x 2.5” (HDD Rack);|
|MOTHERBOARDS||6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX),|
|I/O PORT||1 x USB 3.0, 2 x USB 2.0, 1 x HD Audio,|
|PSU||Standard PS2 PSU (optional)|
|3 x 120mm, 2 x 140mm|
|2 x 120mm, 2 x 140mm, 1 x 200mm|
|1 x 120mm,|
|1x 240mm, 1 x 280mm|
|1 x 240mm, 1x 280mm|
|1 x 120mm,|
|CLEARANCE||CPU cooler height limitation: 165mm|
|PSU length limitation: 160mm|
|VGA length limitation: 330mm|
