Thermaltake Pacific Core P5 DP-D5 Plus Distro-Plate with Pump Combo
Thermlatake Pacific Core P5 DP-D5 Plus is a Liquid cooling Distribution plate and D5 pump combo unit built for the Core P5 chassis. This simplifies the tube structure of hard tubing water cooling and adds a smarter way for beginners and experienced modders to present their water-cooled builds.
Overview:

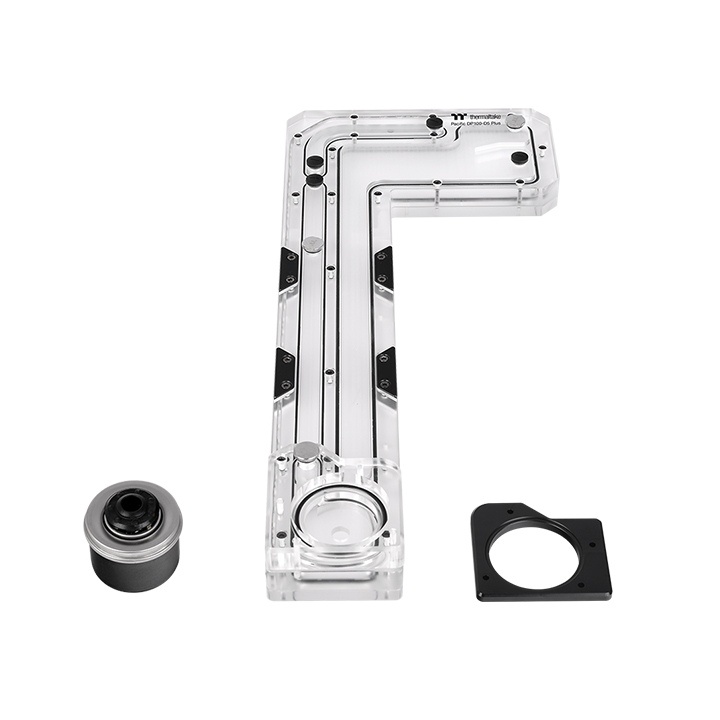

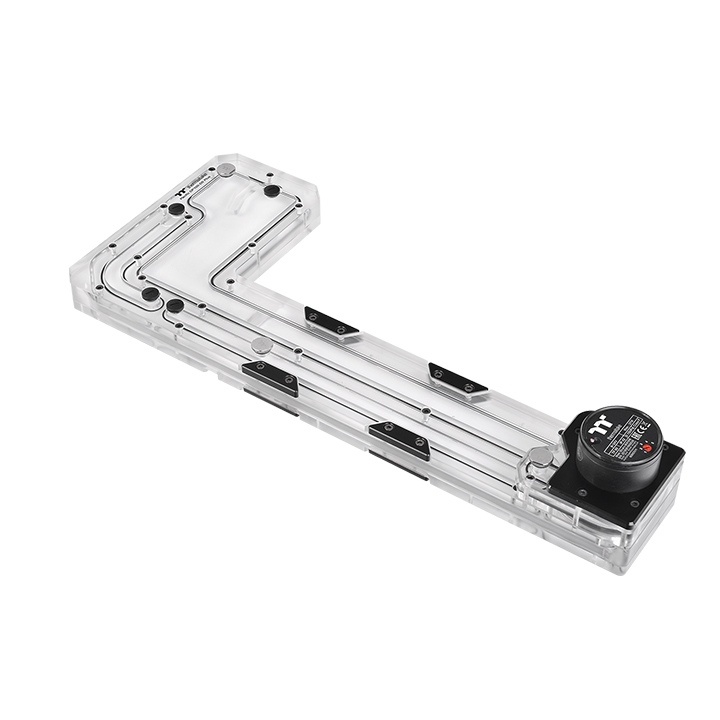

Pacific Core P5 DP-D5 Plus
The Thermaltake Core P5 DP-D5 Plus is a distribution plate with a pre-installed D5 pump, the distro is designed for our Core P5 Chassis allowing you to mount it directly to the chassis. Furthermore can be synced with our TT RGB PLUS Ecosystem.

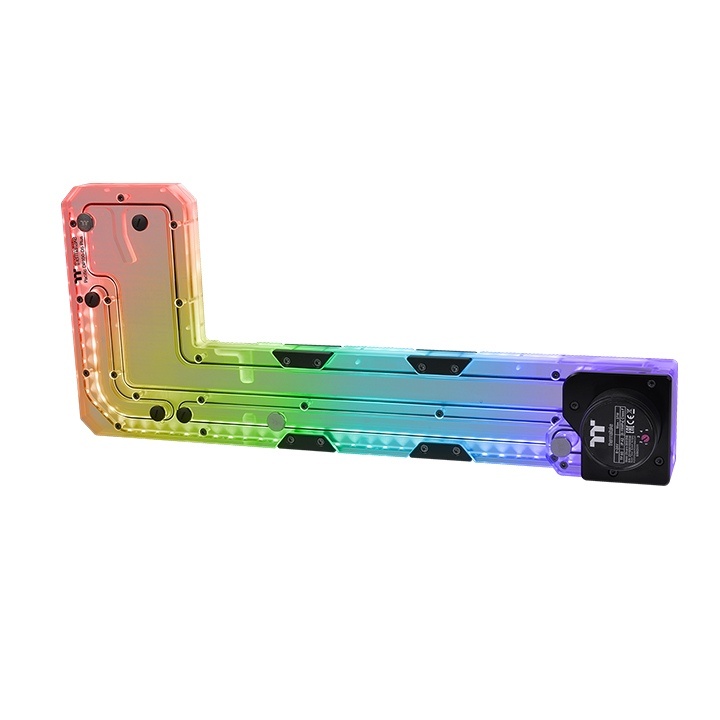

Full RGB Illumination Design
Thermaltake Pacific Core P5 DP-D5 Plus have built-in 48 addressable LEDs feature great light coverage. The lighting is compatible with TT RGB PLUS and ASUS, GIGABYTE, MSI, and ASROCK RGB software.
Straightforward Installation

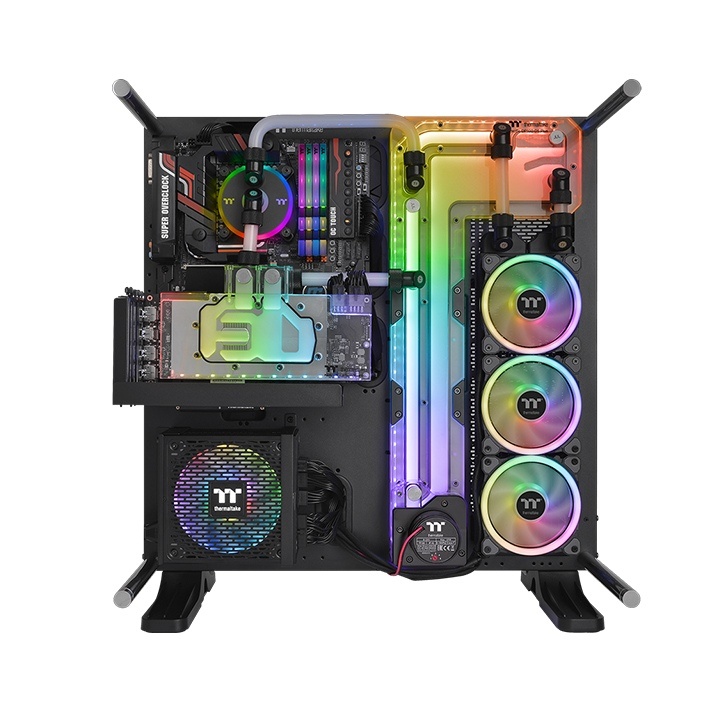

Compatible with the Core P5 Chassis
Vivid RGB Lighting from Every Angle
Controlled by the patented TT RGB PLUS Software and the app, DP100-D5’s 48 LEDs light up the distro with stunning customizable RGB lighting.
High quality 18mm thick PMMA
The reservoir is made with 18mm thick PMMA which guarantees quality and pressure resistance.
D5 Pump
Thermaltake Pacific Core P5 DP-D5 Plus features exceptional performance and unrivalled reliability, having a lifecycle of 50,000 hours MTBF.
Specifications:
P/N | CL-W264-PL00SW-A |
DIMENSIONS | 544 (L) x 234 (W) x 84.8 (H) |
INTERFACE | USB 2.0 connectors (9 Pin) |
SYSTEM COMPATIBILITY | Windows 7 / 8 / 8.1 / 10 |
POWER INPUT | 37 W / 9 W |
PUMP | P1: 1,800 RPM |
P2: 2,550 RPM | |
P3: 3,300 RPM | |
P4: 4,050 RPM | |
P5: 4,800 RPM | |
CONNECTOR | 4 Pin |
MATERIAL | POM+ PMMA |
MAX AIR FLOW | 1135 L/h |
MAX. AIR PRESSURE | 50 PSI |
