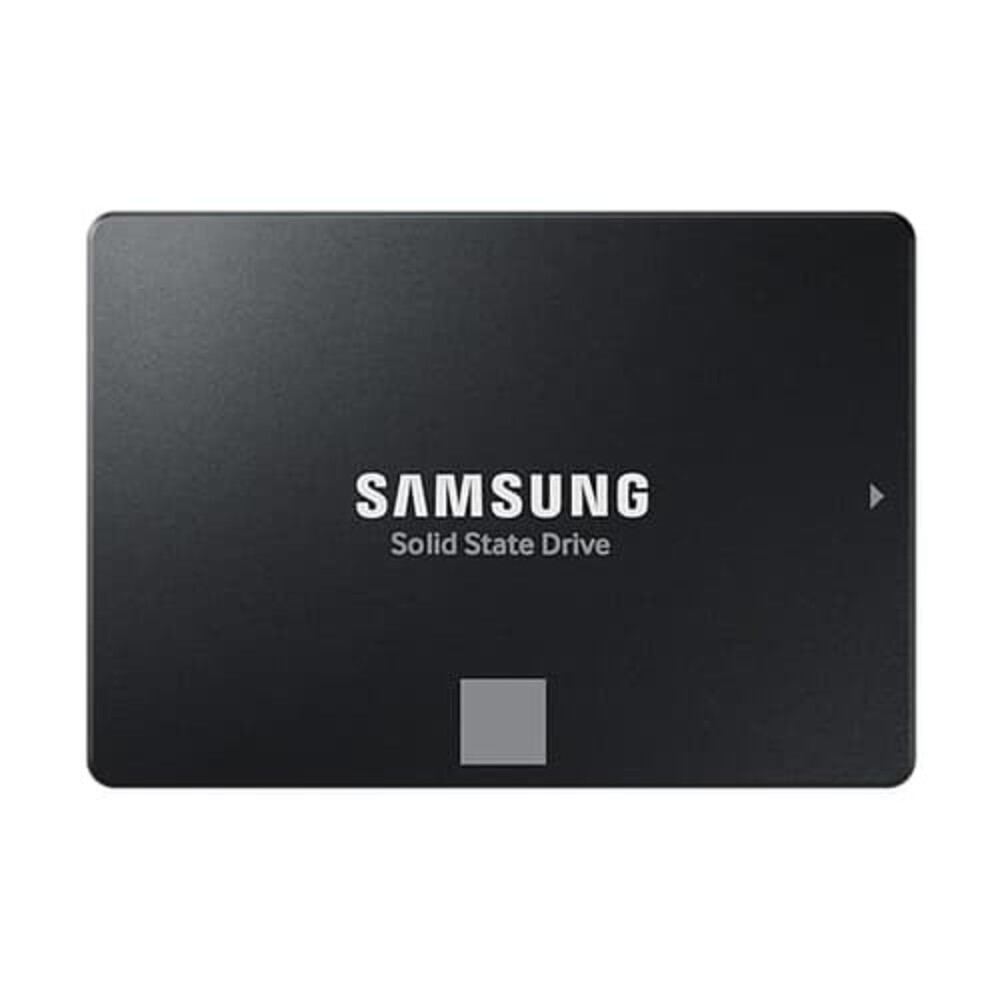

Samsung 870 Evo 500GB 2.5 Inch SATA Internal SSD Up To 560 MB/s Read Speed :
Overview :
The Samsung 870 Evo 500GB 2.5 Inch SATA Internal SSD Up To 560 MB/s Read Speed is a high-performance SATA III 2.5-inch internal storage drive designed for laptops and desktops. Known for its reliability and speed, Samsung 870 Evo 500GB 2.5 Inch SATA Internal SSD Up To 560 MB/s Read Speed delivers up to 560 MB/s sequential read and 530 MB/s sequential write speeds, making it a top upgrade option for users who need faster boot times, smooth multitasking, and efficient data handling.Built using Samsung’s advanced V-NAND technology and the MKX controller, Samsung 870 Evo 500GB 2.5 Inch SATA Internal SSD Up To 560 MB/s Read Speed ensures stable, long-term performance. Its 512 MB DDR4 cache accelerates everyday tasks, while features like TRIM support, S.M.A.R.T., hardware-level encryption, and low power consumption make it ideal for both casual and professional use.
Key Features :
Up to 560 MB/s read and 530 MB/s write speeds
Samsung V-NAND 3-bit MLC (TLC) flash memory
512 MB LPDDR4 cache for boosted performance
Highly reliable MKX controller
Compatible with most laptops and desktops (2.5″ SATA)
Low power consumption for longer battery life in laptops
Supports TRIM, S.M.A.R.T., Garbage Collection, DevSlp
AES-256 hardware encryption & TCG/Opal support
1.5M hours MTBF and 300 TBW endurance
5-year limited warranty
Specification Table :
| Model / Capacity | Samsung 870 EVO – 500GB |
| Form Factor | 2.5-inch |
| Interface | SATA III (6 Gb/s) |
| Controller | Samsung MKX |
| Flash Memory | Samsung V-NAND 3-bit MLC (TLC) |
| Cache Memory | 512 MB LPDDR4 |
| Sequential Read Speed | Up to 560 MB/s |
| Sequential Write Speed | Up to 530 MB/s |
| Random Read (QD1) | ~13,000 IOPS |
| Random Write (QD1) | ~36,000 IOPS |
| Random Read (QD32) | ~98,000 IOPS |
| Random Write (QD32) | ~88,000 IOPS |
| Dimensions | 100 x 69.85 x 6.8 mm |
| Weight | ~45 g |
| Power (Idle) | ~30 mW |
| Power (Active) | ~2.0–2.2 W average |
| Shock Resistance | 1,500 G for 0.5 ms |
| Operating Temperature | 0°C to 70°C |
| Endurance (TBW) | 300 TBW |
| MTBF | 1.5 million hours |
| Encryption | AES-256, TCG/Opal, IEEE1667 |
| Features | TRIM, S.M.A.R.T., Garbage Collection, DevSlp |
| Compatibility | Laptops, desktops, consoles, NAS (where SATA supported) |
| Warranty | 5 years limited |
