NZXT N7 B650E White Motherboard

₹29,989 (Inclusive of GST)

-40%
Brand:

Out of stock

Email when back in stock

NZXT N7 B650E White AMD Motherboard with Wi-Fi and NZXT CAM Features

Features :

  • The NZXT B650E White Motherboard enables a visually seamless backdrop for any build with all the features of the reliable AMD B650E chipset.
  • Seamless cover with integrated heat spreader
  • Digital RGB lighting control through CAM
  • NZXT N7 B650E White has Digital fan control for convenient fan profiles with seven independent fan channels
  • NZXT N7 B650E White has Integrated rear I/O shield and efficient layout
  • 16+2+1 Power phase design with 90A Smart Power Stage(SPS)

Specifications :

CPUAMD Socket AM5 Ryzen™ 7000 Series Processors:Supported
ColorWhite
ChipsetAMD:B650
Memory
  • DIMM Slots:4
  • Max Memory Support:128GB
  • Memory Architecture:Dual-Channel
  • OC Frequency:DDR5 Non-ECC, Un-buffered Memory up to 6000+ (OC).
  • Extreme Memory Profile (XMP):Supported
  • EXTended Profiles for Overclocking (EXPO):Supported
Expansion Slots
  • PCIe 5.0 ×16 slot (PCIEX16_1), supports ×16 mode:1 (Supports NVMe SSD as boot disks)
  • PCIe 4.0 ×16 slots (PCIEX16_2 and PCIEX16_3), support ×2 mode:2 (Supports NVMe SSD as boot disks)
  • M.2 Socket (Key E), supports Type 2230 Wi-Fi/BT PCIe Wi-Fi module:1
Integrated Graphics
  • Integrated AMD RDNA™ 2 graphics:Supported
  • HDMI 2.1 TMD Compatible:1
  • HDR:Supported
  • HDCP 2.3:max. resolution up to 4K 60Hz
Storage
  • M.2_1, Type 2242/2260/2280 (PCIe 5.0 ×4 mode):1
  • M.2_2, Type 2242/2260/2280 (PCIe 4.0 ×4 mode):1
  • M.2_3, Type 2242/2260/2280 (PCIe 4.0 ×2 mode):1
  • SATA 6Gb/s ports:4
  • RAID 0/1/10 for SATA storage devices:Supported
  • RAID 0/1/10 for M.2 NVMe storage devices:Supported
  • NVMe SSD as boot disks:Supported
LANRealtek®:RTL8125BG 2.5G LAN
Wireless802.11ax Wi-Fi 6E Module:Supported

Bluetooth:V5.2

AudioRealtek®:ALC1220 Codec

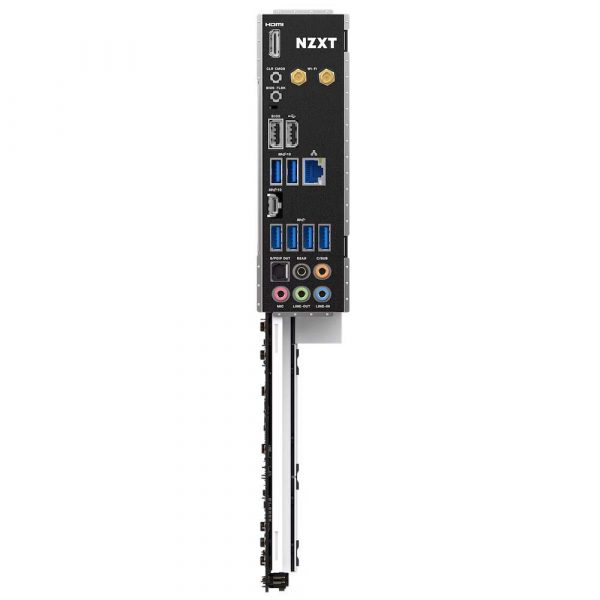

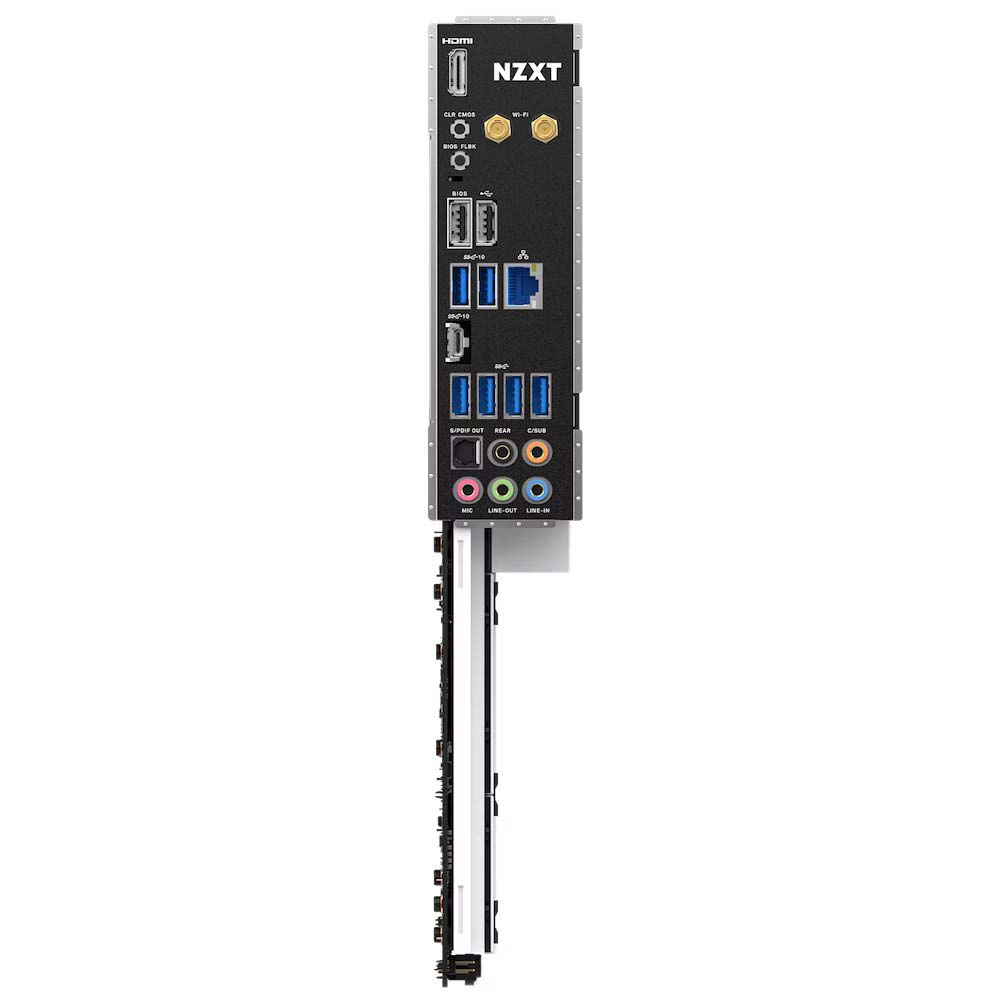

Rear I/O
  • Wireless antenna SMA connectors:2
  • HDMI™ port:1
  • USB 2.0:2
  • USB 3.2 Gen 2 Type-C port:1
  • USB 3.2 Gen 2 ports:2
  • USB 3.2 Gen 1 ports:4
  • Clear CMOS button:1
  • BIOS Flashback button:1
  • LAN (RJ45) port:1
  • Audio jacks:5
  • Optical S/PDIF Out port:1
Internal I/O
  • 24-pin ATX power connector:1
  • 8+4-pin ATX 12V power connector:1
  • 4-pin CPU_FAN connector:1
  • 4-pin AIO_PUMP connector:1
  • 4-pin SYS_FAN connectors:5
  • NZXT RGB LED connectors:4
  • 5V ARGB LED connector:2
  • USB 2.0 header (Up to 6 USB 2.0 ports):3
  • USB 3.2 Gen1 header (Up to 4 USB 3.2 Gen 1 ports):2
  • USB 3.2 Gen2 front panel header (For USB Type-C):1
  • Front panel audio connector:1
  • Power button:1
  • Reset button:1
  • POST LEDs:4
GeneralSystem Requirements:NZXT CAM software requires Microsoft Windows® 11/10 operating system.
Form FactorATX
CertificationsFCC, CE, WHQL, ErP/EuP Ready
Warranty3 Years

Additional information

Weight5 kg
Brand

NZXT

Platfrom

AMD

Chipset

B650E

Socket

AM5

Memory Slot

4 Slot

Memory Slot Type

DDR5

Form Factor

ATX
