NZXT N7 B550 Black Motherboard

23,599 (Inclusive of GST)

Available Models: N7-B550-BLACK
Brand:

Out of stock

Email when back in stock

Nzxt N7 B550 Black Motherboard:

Features:

  • Nzxt N7 B550 Black come WiFi 6E connectivity
  • Nzxt N7 B550 Black Digital RGB lighting control through NZXT CAM
  • Digital fan control for fan profiles within NZXT CAM for seven independent fan channels
  • Nzxt N7 B550 Black Integrated rear I/O shield and efficient layout
  • Compatible with 3rd Gen AMD™ Ryzen™ processors (3000, 4000, and 5000 Series Processors)
  • Nzxt N7 B550 Black come Intel® Wi-Fi 6E wireless connectivity and Bluetooth V5.2
  • Two M.2 connectors for storage devices
  • Multi-GPU support with AMD CrossFireX™ Technology
  • Supports memory overclocking up to 4600+ MHz and XMP
  • 8-channel high-definition audio

Specifications:

Product ModelN7-B55XT-B1
CPU & Socket
  • AMD Socket AM4 Ryzen™ Processors (3000, 4000, and 5000 Series Processors) – Supported
  • AMD Ryzen™ 5 3400G and Ryzen™ 3200G – Not Supported
ChipsetAMD® B550
Memory4 x DIMM, Max. 128GB, DDR4

  • 4666+ MHz – OC Frequency (Vermeer CPUs)
  • 4666+ MHz – OC Frequency (Matisse CPUs)
  • 4733+ MHz – OC Frequency (Renoir APUs)
  • 3200/2933/2667/2400/2133 – Base Frequency
  • ECC & non-ECC, un-buffered memory type
  • Dual-channel memory architecture
  • XMP Supported
Integrated GraphicsAMD Radeon™ Vega Series Graphics in Ryzen Series APU – HDMI

  • HDMI™ with max. resolution of 4096×2160@60Hz
  • Maximum shared memory of 16GB with 32GB installed
  • Microsoft PlayReady® Supported
Multi-GPU SupportSupports AMD 2-Way CrossFireX™ Technology
Storage
  • 1 x M.2 Type 2242/2260/2280 (x4 mode) – (Vermeer & Matisse – PCIe 4.0, Renoir – PCIe 3.0)
  • 1 x M.2 Type 2242/2260/2280 (PCIe 3.0 x2 & SATA mode)
  • 6 x SATA 6Gb/s – (M2_2 and SATA3_5_6 share lanes)
  • RAID 0/1/5/10 Supported
LANRealtek® RTL8125BG 2.5G
Wireless
  • Intel® Dual-Band Wireless – AX210 Wi-Fi 6E
  • 802.11 a/b/g/n/ac/ax Protocol
  • 2.4 / 5 / 6GHz Frequency Bands
  • Supports MU-MIMO
BluetoothBluetooth V5.2
Audio
  • Realtek® ALC1220 Codec
  • 8-Channel High Definition Audio, 32-bit / 192KHz DAC
  • Nichicon Fine Gold Series Audio Capacitors

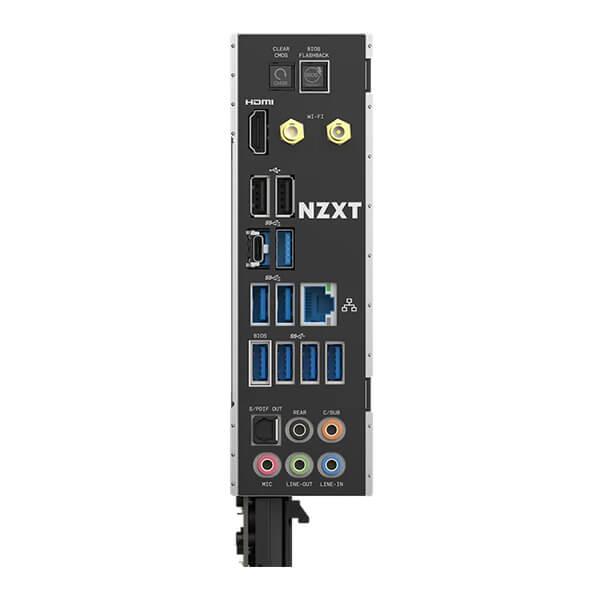

Rear I/O
  • 1 x USB 3.2 Gen 2 Type-C
  • 3 x USB 3.2 Gen 2 Type-A
  • 4 x USB 3.2 Gen 1 ports
  • 2 x USB 2.0 ports
  • 1 x HDMI 2.1
  • 2 x Wireless Antenna (2T2R)
  • 1 x LAN (RJ45) Port
  • 1 x 5.1-Channel Audio Jacks
  • 1 x Optical S/PDIF
  • 1 x BIOS Flashback Button
  • 1 x Clear CMOS Button
Expansion Slots
  • 1 x PCIe x16 (x16 mode) – (Vermeer & Matisse – PCIe 4.0, Renoir – PCIe 3.0)
  • 1 x PCIe x16 (x4 mode)
  • 2 x PCIe 3.0 x1
Internal I/O
  • 1 x 24-pin EATX power connector
  • 1 x 8-pin ATX 12V power connector
  • 1 x 4-pin CPU_FAN connector
  • 1 x 4-pin AIO_PUMP connector (Up to 24W)
  • 5 x 4-pin SYS_FAN connectors (Up to 24W)
  • 1 x CPU_FAN Connector (Up to 24W)
  • 2 x NZXT RGB LED connectors
  • 1 x 5V Addressable RGB connector
  • 1 x 12V RGB connector
  • 1 x M.2 (M Key), Type 2242/2260/2280 – (PCIe 4.0/3.0 x4 mode), 1 (PCIe 3.0 x2 & SATA mode)
  • 1 x M.2 (E Key) (For wireless cards)
  • 6 x SATA 6Gbps Ports
  • 1 x USB 3.2 Gen 2 Header (Type-C)
  • 1 x USB 3.2 Gen 1 Header (Up to 2 ports)
  • 3 x USB 2.0 Header (Up to 6 ports)
  • 1 x Front Panel Audio
  • 1 x Power Button
  • 1 x Reset Button
  • 4 x POST LEDs
Operating SystemMicrosoft® Windows® 10 (64-bit)
Form FactorATX
Warranty3 Years

Additional information

Weight5 kg
Dimensions125 × 135 × 170 mm
Brand

NZXT

Color

Black

Platfrom

AMD

Socket

AM4

Chipset

B550

Memory Slot

4 Slot

Memory Slot Type

DDR4

Form Factor

ATX

Available Models

N7-B550-BLACK

EAN/UPC

5060301696680
