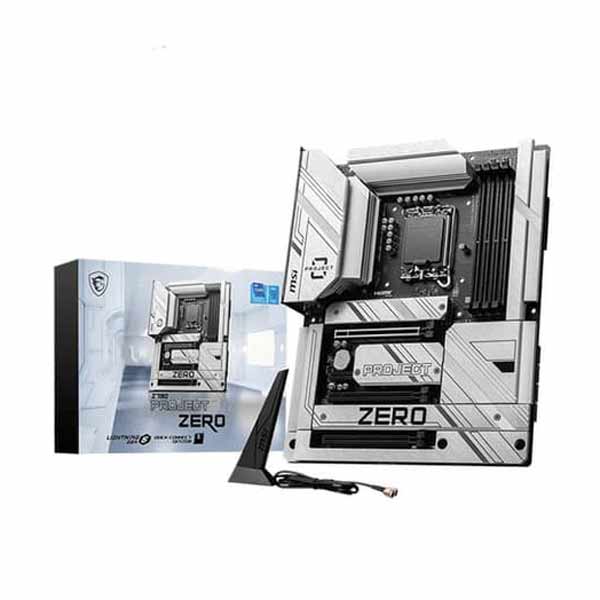

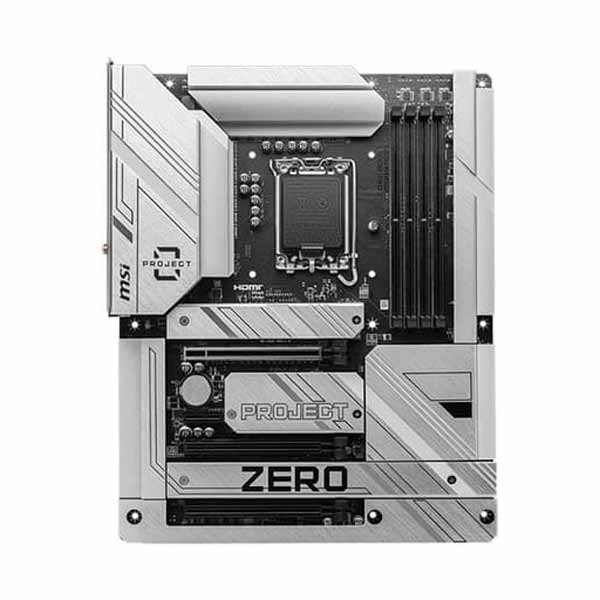

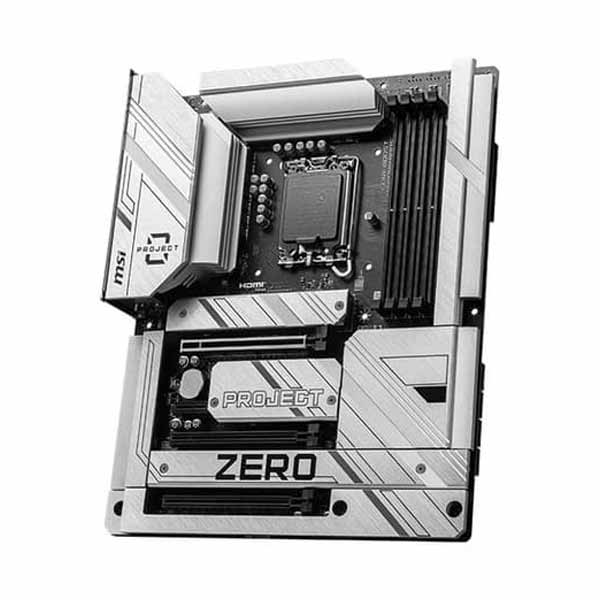

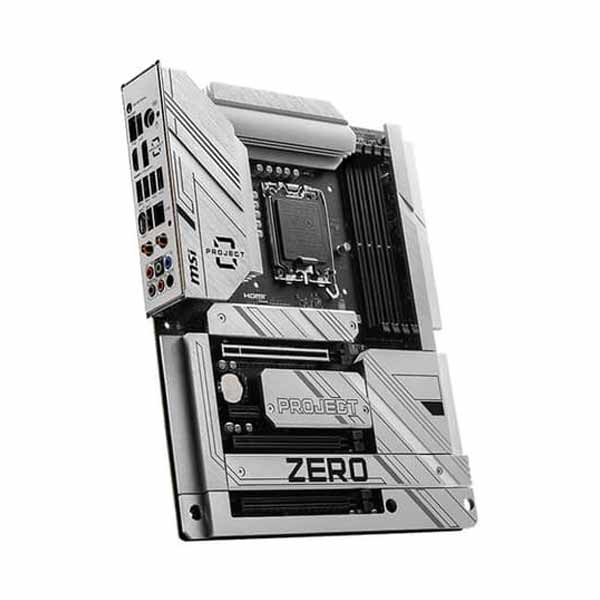

MSI Z790 Project Zero Intel LGA 1700 ATX DDR5 WiFi 7 PCIe 5.0 Gaming Motherboard
Overview :
The MSI Z790 Project Zero is a cutting-edge ATX motherboard designed for enthusiasts seeking a clean and efficient build. Its innovative Back-Connect Design relocates power connectors and headers to the rear, ensuring a clutter-free front view and improved cable management. Supporting 12th, 13th, and 14th Gen Intel Core processors via the LGA 1700 socket, it offers DDR5 memory support, PCIe 5.0 for graphics cards, and Wi-Fi 7 for ultra-fast wireless connectivity. With premium thermal solutions and robust power delivery, it’s an ideal choice for high-performance systems.
Features :
- Supports 12th, 13th & 14th Gen Intel Core processors (LGA 1700)
- DDR5 memory support up to 7200+ MHz (OC), up to 256GB
- 14+1+1 Duet Rail Power System with dual 8-pin CPU power connectors
- 1 x PCIe 5.0 x16 slot for next-gen graphics cards
- 4 x M.2 slots supporting PCIe 4.0 with M.2 Shield Frozr
- Wi-Fi 7 and 2.5G LAN for high-speed networking
- USB 3.2 Gen 2×2 Type-C for 20Gbps data transfer
- Audio Boost with Realtek ALC897 codec
- Back-Connect Design for streamlined cable management
- Mystic Light RGB with ARGB/RGB headers for customization
Specifications :
| Model | MSI Z790 PROJECT ZERO |
| CPU Socket | LGA 1700 |
| Chipset | Intel Z790 |
| Form Factor | ATX |
| Memory Support | DDR5, Dual Channel, 4 DIMMs, up to 7200+ MHz (OC), Max 256GB |
| Expansion Slots | 1 x PCIe 5.0 x16, 1 x PCIe 4.0 x4, 2 x PCIe 3.0 x1 |
| Storage Interface | 4 x M.2 (PCIe 4.0 x4), 6 x SATA 6Gb/s |

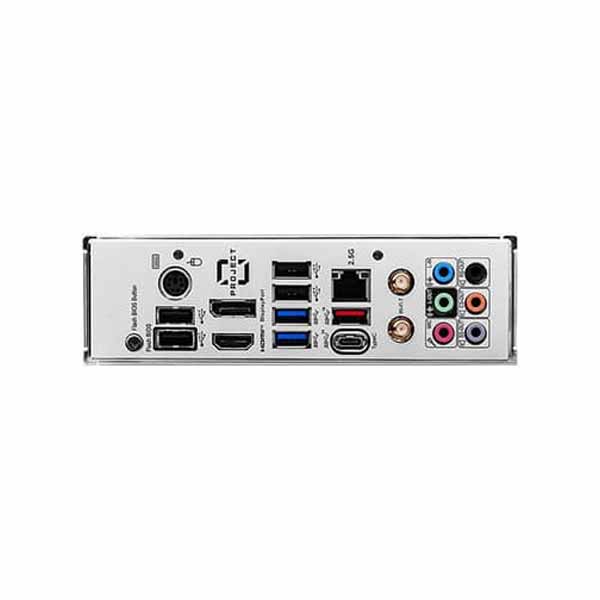

| USB Ports (Rear) | 1 x USB 3.2 Gen 2×2 Type-C, 1 x USB 3.2 Gen 2 Type-A, 2 x USB 3.2 Gen 1 Type-A, 4 x USB 2.0 |
| USB Ports (Internal) | USB 3.2 Gen 2×2 Front Type-C, USB 3.2 Gen 1 Headers, USB 2.0 Headers |
| Networking | Intel Wi-Fi 7, Intel 2.5G LAN |
| Audio | Realtek ALC897 with Audio Boost |
| RGB Lighting | Mystic Light with ARGB & RGB headers |
| Power Phases | 14+1+1 Duet Rail VRM with dual 8-pin CPU power connectors |
| Cooling Features | Extended Heatsinks, M.2 Shield Frozr, 7W/mK Thermal Pads, Multiple Fan Headers |
| BIOS Features | Click BIOS 5, Flash BIOS Button, EZ Debug LED |
| OS Compatibility | Windows 11 / 10 64-bit |
| Warranty | 3 Years |
