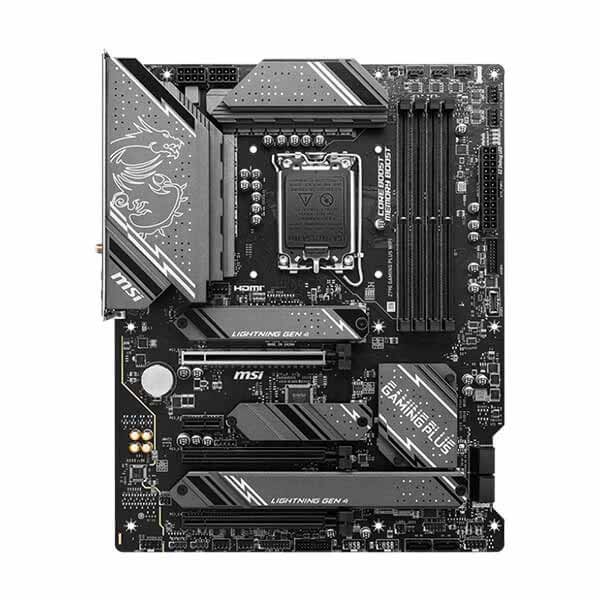

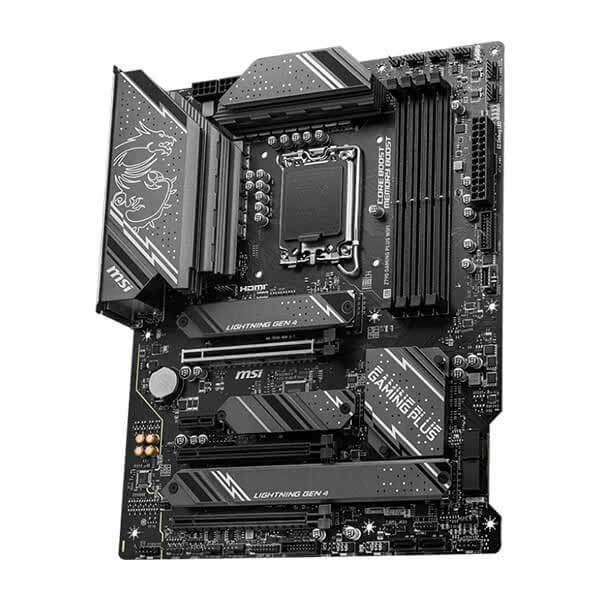

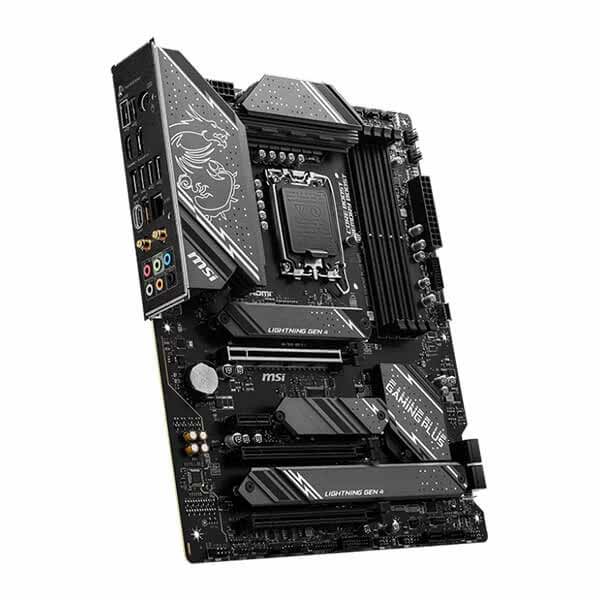

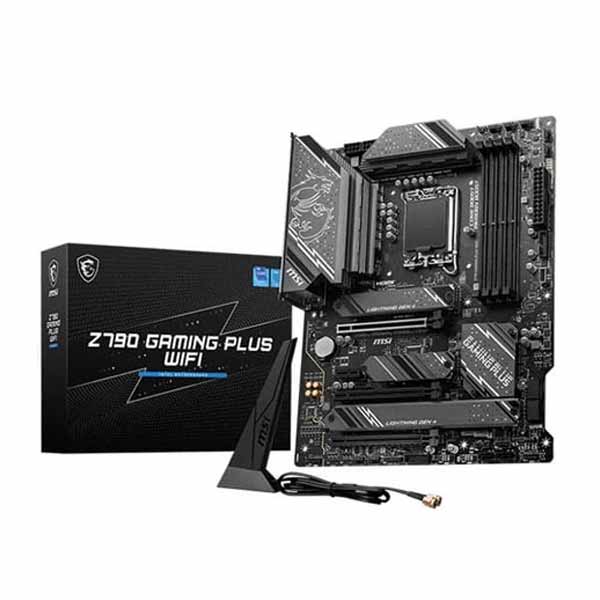

MSI Z790 Gaming Plus WiFi Intel LGA 1700 ATX DDR5 WiFi 6E PCIe 5.0 Gaming Motherboard
Overview :
The MSI Z790 Gaming Plus WiFi is engineered for gamers and PC enthusiasts seeking robust performance and connectivity. Supporting 12th, 13th, and 14th Gen Intel Core processors via the LGA 1700 socket, it offers DDR5 memory support, PCIe 5.0 for graphics cards, and Wi-Fi 6E for high-speed wireless networking. Its comprehensive thermal solutions, including extended heatsinks and M.2 Shield Frozr, ensure optimal cooling, making it an ideal choice for high-performance gaming setups.
Features :
- Supports 12th, 13th & 14th Gen Intel Core processors (LGA 1700)
- DDR5 memory support up to 7200+ MHz (OC), up to 128GB
- 14+1+1 Duet Rail Power System with 55A DrMOS
- 1 x PCIe 5.0 x16 slot for next-gen graphics cards
- 4 x M.2 slots supporting PCIe 4.0 with M.2 Shield Frozr
- Wi-Fi 6E and 2.5G LAN for high-speed networking
- USB 3.2 Gen 2×2 Type-C for 20Gbps data transfer
- Audio Boost with Realtek ALC897 codec
- Pre-installed I/O Shield for streamlined installation
- Mystic Light RGB with ARGB/RGB headers for customization
Specifications :
| Model | MSI Z790 GAMING PLUS WIFI |
| CPU Socket | LGA 1700 |
| Chipset | Intel Z790 |
| Form Factor | ATX |
| Memory Support | DDR5, Dual Channel, 4 DIMMs, up to 7200+ MHz (OC), Max 128GB |
| Expansion Slots | 1 x PCIe 5.0 x16, 1 x PCIe 3.0 x16 (x4 mode), 2 x PCIe 3.0 x1 |
| Storage Interface | 4 x M.2 (PCIe 4.0 x4), 4 x SATA 6Gb/s |

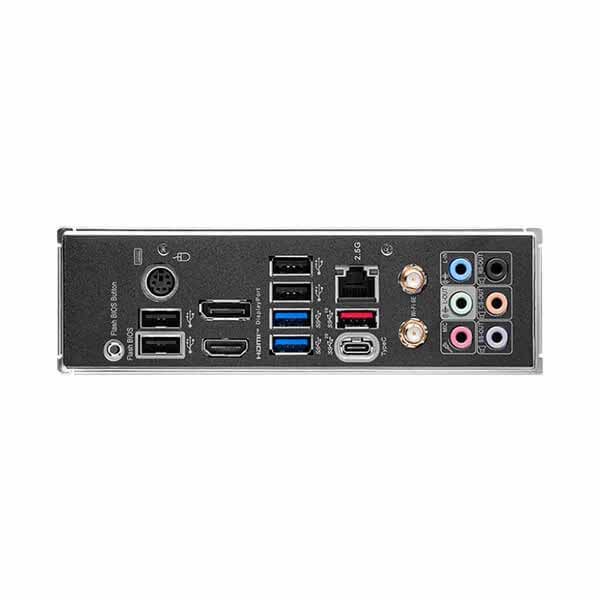

| USB Ports (Rear) | 1 x USB 3.2 Gen 2×2 Type-C, 3 x USB 3.2 Gen 2 Type-A, 4 x USB 2.0 |
| USB Ports (Internal) | USB 3.2 Gen 1 Headers, USB 2.0 Headers |
| Networking | Intel Wi-Fi 6E, Realtek 2.5G LAN |
| Audio | Realtek ALC897 with Audio Boost |
| RGB Lighting | Mystic Light with ARGB & RGB headers |
| Power Phases | 14+1+1 Duet Rail VRM with 55A DrMOS |
| Cooling Features | Extended Heatsinks, M.2 Shield Frozr, Multiple Fan Headers |
| BIOS Features | Click BIOS 5, Flash BIOS Button, EZ Debug LED |
| OS Compatibility | Windows 11 / 10 64-bit |
| Warranty | 3 Years |
