MSI RTX 5090 Vanguard SOC 32GB GDDR7 Graphics Card :
Overview :
The MSI RTX 5090 Vanguard SOC 32GB GDDR7 Graphics Card is a high-performance flagship graphics card, designed for 4K and beyond gaming, AI-driven rendering, and extreme multitasking. Powered by the cutting-edge NVIDIA Ada Lovelace architecture, this MSI RTX 5090 Vanguard SOC 32GB GDDR7 Graphics Card features massive 32GB GDDR7 memory, DLSS 3.5 frame generation, and advanced ray tracing. With MSI’s premium cooling solutions and SOC (Super Overclock) tuning, the MSI RTX 5090 Vanguard SOC 32GB GDDR7 Graphics Card ensures unmatched power efficiency and stability for the most demanding users.
Features :
- NVIDIA Ada Lovelace Architecture – Advanced efficiency and raw power for next-gen gaming.
- 32GB GDDR7 Memory – Lightning-fast memory speeds for seamless high-resolution gameplay.
- Super Overclock (SOC) Edition – Factory overclocked for maximum performance.
- Ray Tracing & DLSS 3.5 – AI-enhanced upscaling and real-time ray tracing for immersive visuals.

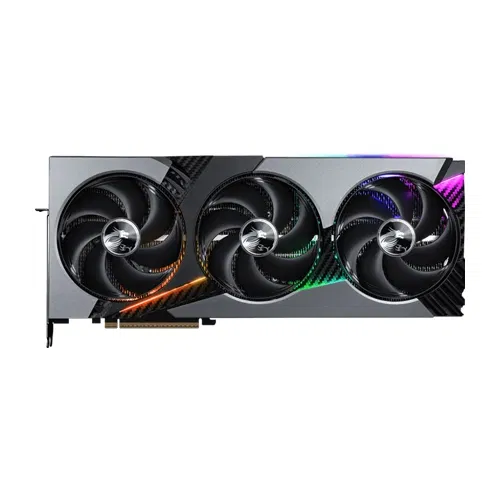

- MSI Tri-Frozr 3 Thermal Design – Triple-fan cooling with precision airflow for optimal temperatures.

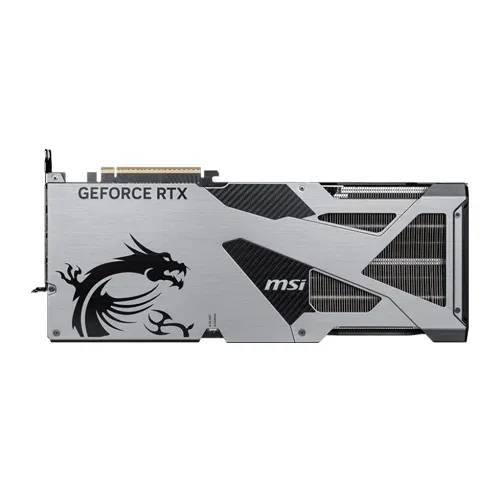

- Metal Reinforced Backplate – Enhanced durability with passive cooling benefits.
- PCIe 5.0 Support – Future-proofed bandwidth for high-speed data transfer.
- HDMI 2.1 & DisplayPort 2.1 – Supports up to 8K resolution and high refresh rates.
- Dual BIOS Mode – Switch between performance and quiet mode for optimized settings.
- RGB Mystic Light – Customizable lighting to sync with your gaming setup.
- MSI Afterburner Support – Advanced overclocking tools for enthusiasts.
Specifications :
| Graphics Engine | NVIDIA GeForce RTX 5090 Vanguard SOC |
| Architecture | Ada Lovelace |
| Bus Standard | PCI Express 5.0 |
| CUDA Cores | 20480 |
| Ray Tracing Cores | 3rd Gen |
| Tensor Cores | 4th Gen |
| Video Memory | 32GB GDDR7 |
| Memory Speed | 28 Gbps |
| Memory Interface | 512-bit |
| Engine Clock | OC Mode: 2950MHz Default Mode: 2900MHz (Boost Clock) |
| Maximum Resolution | 8K (7680 x 4320) |
| Display Outputs | 1 x HDMI 2.1 3 x DisplayPort 2.1 |
| HDCP Support | Version 2.3 |
| Maximum Display Support | Up to 4 displays |

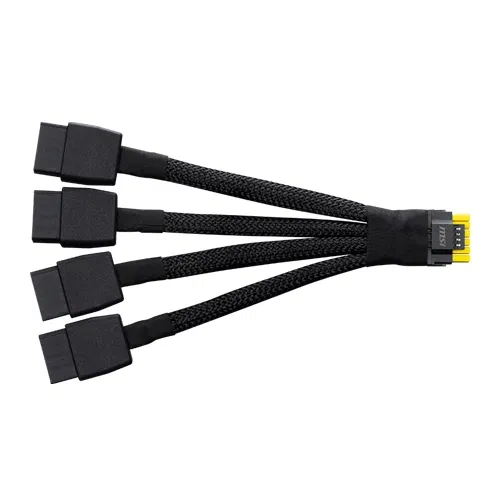

| Power Connectors | 1 x 16-pin |
| Recommended PSU | 1000W |
| Slot Design | 3.5-slot |
| Cooling System | MSI Tri-Frozr 3 with TORX Fan 5.0 |
| Backplate | Yes, premium metal backplate |
| RGB Lighting | MSI Mystic Light |
| Accessories Included | GPU Support Bracket, User Manual |
| Software Bundled | MSI Afterburner, NVIDIA GeForce Experience |
| Warranty | 3 Years |
