MSI Pro Z890-S WiFi PZ DDR5 Intel LGA 1851 ATX WiFi 7 PCIe 5.0 Gaming Motherboard
Overview :

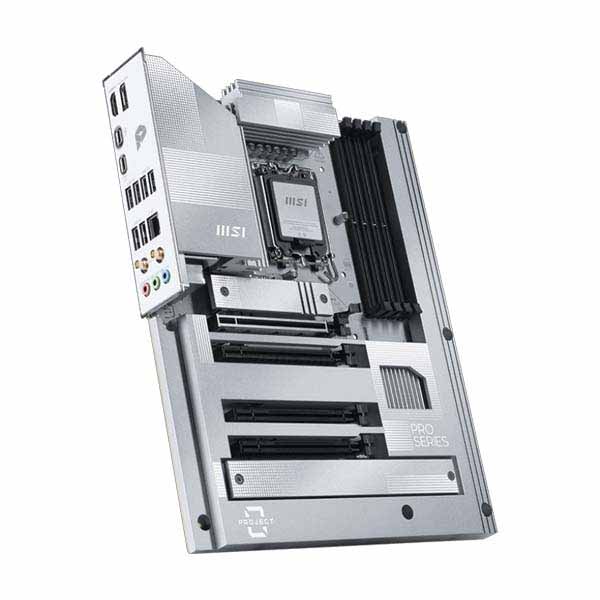

The MSI Pro Z890-S WiFi PZ.is a sleek, back‑connect ATX motherboard built on the Intel Z890 chipset, designed for Intel Core Ultra Series 2 (LGA 1851) processors. MSI Pro Z890-S WiFi PZ Targeted at creators and clean-build enthusiasts, it features a minimalist silver-white aesthetic, DDR5 up to 8,800 MT/s (OC), PCIe 5.0, Gen 5 M.2, Wi-Fi 7, 2.5 GbE LAN, and Thunderbolt 4. MSI Pro Z890-S WiFi PZ innovative rear-connect design moves power, fan, and storage headers to the backside for uncluttered front layouts and superior cable management.
Features :
- Back‑Connect Design: All major ports & connectors on rear for clean look
- Supports Intel Core Ultra Series 2 (LGA 1851) on Z890 chipset
- DDR5 memory: 4 DIMMs, up to 256 GB, OC to 8,800 MT/s
- 12 +1 +1 +1 Duet Rail VRM with robust thermal design
- Expansion: 1× PCIe 5.0 x16, 2× PCIe 4.0 x16 (x4), 1× PCIe 3.0 x1
- Storage: 1× Gen5 M.2 x4, 2× Gen4 M.2 x4, 4× SATA 6 Gb/s
- Networking: Wi‑Fi 7 & Bluetooth 5.4, Realtek 2.5 GbE
- Connectivity: Thunderbolt 4, USB 3.2 Gen 2×2 Type-C, 6× USB 3.2 Gen 1, HDMI/DP outputs
- Audio: Realtek ALC897 with Audio Boost
- DIY-Friendly: Frozr heatsink design, M.2 Shield Frozr, EZ PCIe/M.2 Clip II, pre‑installed I/O shield, 6-layer PCB
Specifications :
| Model | MSI PRO Z890‑S WiFi PZ |
| CPU Socket | LGA 1851 (Intel Core Ultra Series 2) |
| Chipset | Intel Z890 |
| Form Factor | ATX (243.84 × 304.8 mm) |
| Memory | DDR5, 4× UDIMM, up to 8,800 MT/s OC, 256 GB max |
| Power Design | 12+1+1+1 Duet Rail VRM with Frozr thermal design |
| PCIe Slots | 1× PCIe 5.0 x16, 2× PCIe 4.0 x16 (x4 mode), 1× PCIe 3.0 x1 |
| M.2 Slots | 1× Gen5 x4, 2× Gen4 x4 (with Shield Frozr) |
| SATA Ports | 4× SATA 6 Gb/s |

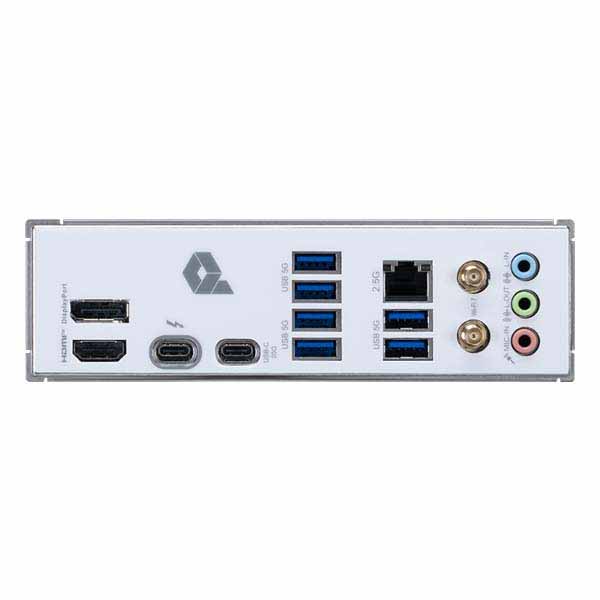

| Rear USB & TB4 | 1× Thunderbolt 4, 1× USB‑C 20 Gb/s, 6× USB 3.2 Gen 1, HDMI 2.1, DP 1.4 |
| Internal USB Headers | USB 3.2 Gen 2×2 Type-C, USB 3.2 Gen 1 headers, USB 2.0 headers |
| Networking | Realtek 2.5 GbE LAN, Wi‑Fi 7, Bluetooth 5.4 |
| Audio | Realtek ALC897, 7.1-channel with Audio Boost |
| Back‑Connect Design | Power, fan, SATA, USB & audio headers on rear PCB |
| Cooling Solutions | Frozr Heatsink, M.2 Shield Frozr, MOSFET pads, 6-layer PCB |
| DIY Features | EZ PCIe & M.2 Clip II, pre‑installed I/O shield, Debug LED |
| OS Support | Windows 11 / 10 64‑bit |
| Warranty | 3 Years |
