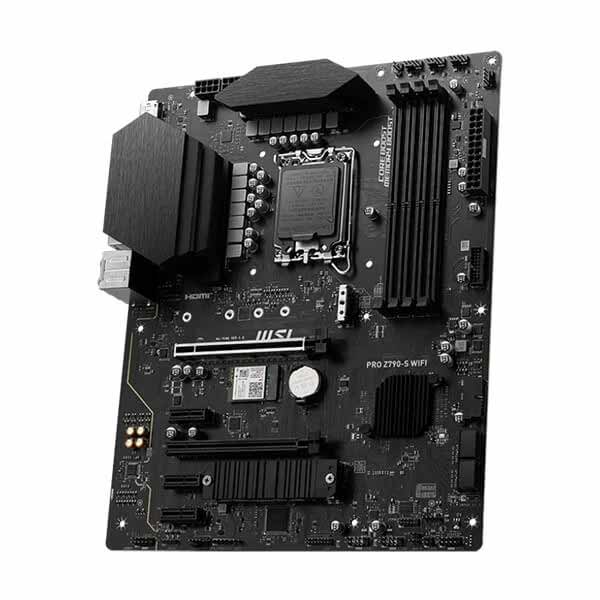

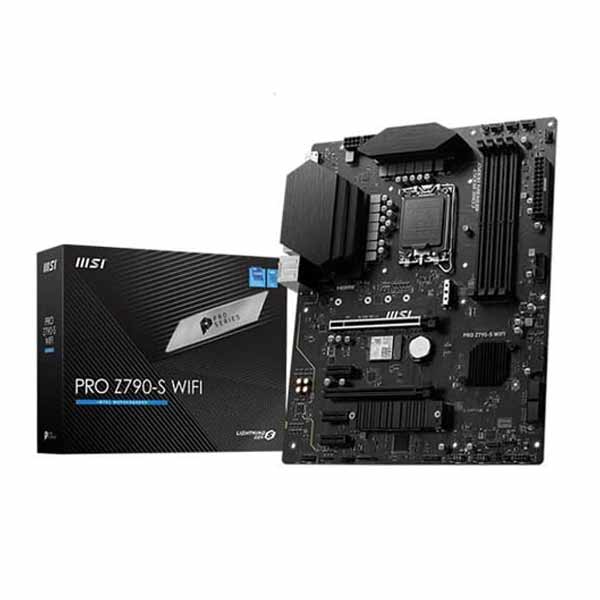

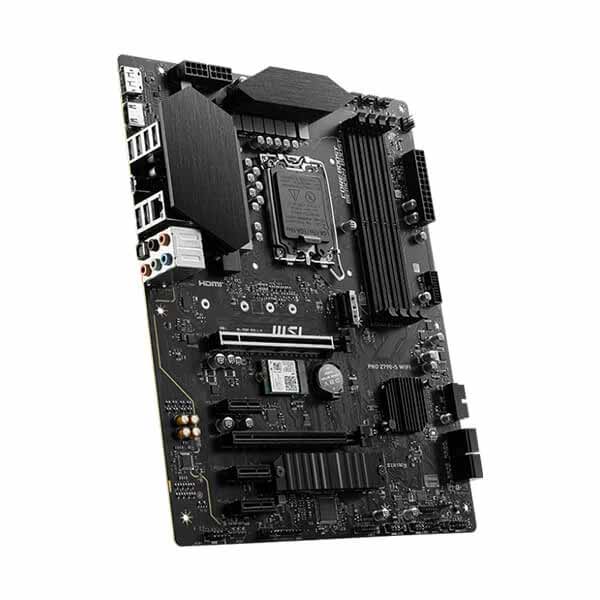

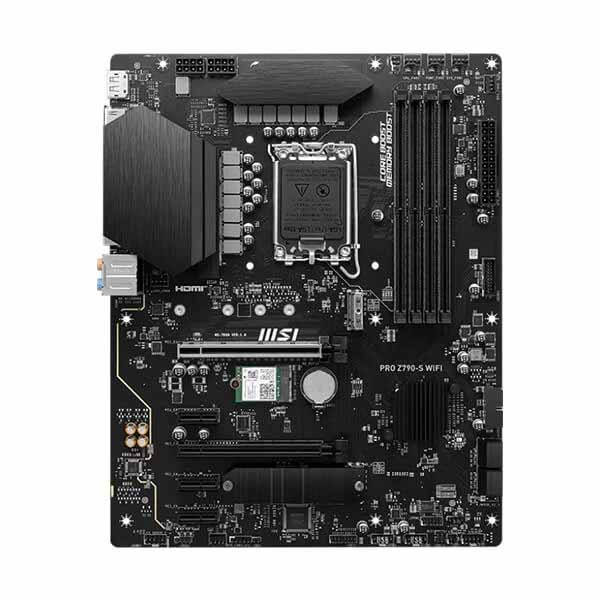

MSI Pro Z790-S WiFi Intel LGA 1700 ATX DDR5 WiFi 6E PCIe 5.0 Gaming Motherboard
Overview :
The MSI Pro Z790-S WiFi is a feature-rich ATX motherboard designed for professionals and enthusiasts seeking robust performance and connectivity. Supporting 12th, 13th, and 14th Gen Intel Core processors via the LGA 1700 socket, it offers DDR5 memory support, PCIe 5.0 for graphics cards, and Wi-Fi 6E for high-speed wireless networking. Its comprehensive thermal solutions, including extended heatsinks and M.2 Shield Frozr, ensure optimal cooling, making it an ideal choice for high-performance computing tasks.
Features :
- Supports 12th, 13th & 14th Gen Intel Core processors (LGA 1700)
- DDR5 memory support up to 6600+ MHz (OC), up to 192GB
- 12+1+1 Duet Rail Power System with P-PAK and dual 8-pin CPU power connectors
- 1 x PCIe 5.0 x16 slot for next-gen graphics cards
- 2 x M.2 slots supporting PCIe 4.0 with M.2 Shield Frozr
- Wi-Fi 6E and 2.5G LAN for high-speed networking
- USB 3.2 Gen 2×2 Type-C for 20Gbps data transfer
- Audio Boost with Realtek ALC897 codec
- Pre-installed I/O Shield for streamlined installation
- Business-focused design with a clean aesthetic
Specifications :
Model | MSI PRO Z790-S WIFI |
CPU Socket | LGA 1700 |
Chipset | Intel Z790 |
Form Factor | ATX |
Memory Support | DDR5, Dual Channel, 4 DIMMs, up to 6600+ MHz (OC), Max 192GB |
Expansion Slots | 1 x PCIe 5.0 x16, 1 x PCIe 3.0 x16 (x4 mode), 3 x PCIe 3.0 x1 |
Storage Interface | 2 x M.2 (PCIe 4.0 x4), 4 x SATA 6Gb/s |

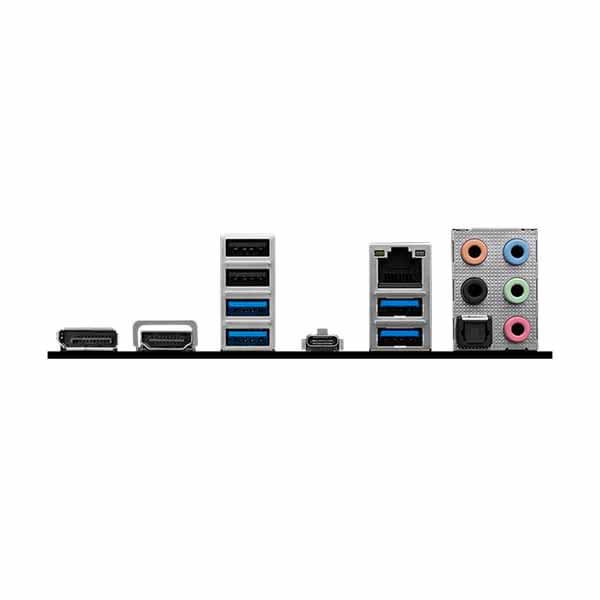

USB Ports (Rear) | 1 x USB 3.2 Gen 2×2 Type-C, 4 x USB 3.2 Gen 1 Type-A, 2 x USB 2.0 |
USB Ports (Internal) | USB 3.2 Gen 1 Headers, USB 2.0 Headers |
Networking | Intel Wi-Fi 6E, Realtek 2.5G LAN |
Audio | Realtek ALC897 with Audio Boost |
RGB Lighting | None (Professional-focused design) |
Power Phases | 12+1+1 Duet Rail VRM with P-PAK |
Cooling Features | Extended Heatsinks, M.2 Shield Frozr, Multiple Fan Headers |
BIOS Features | Click BIOS 5, Flash BIOS Button, EZ Debug LED |
OS Compatibility | Windows 11 / 10 64-bit |
Warranty | 3 years |
