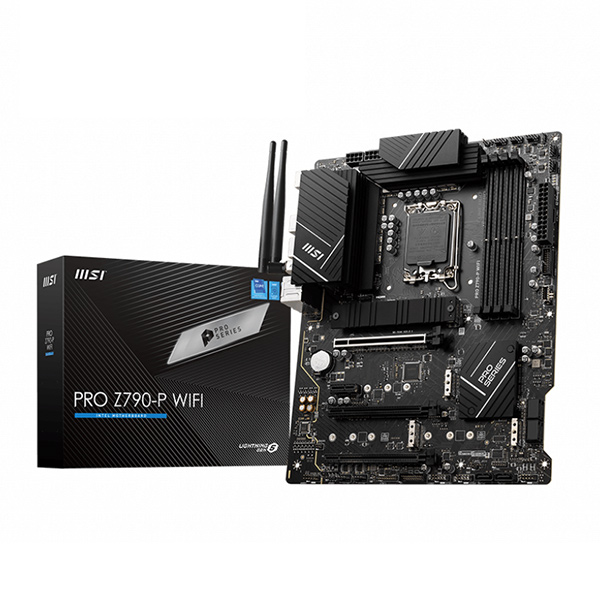

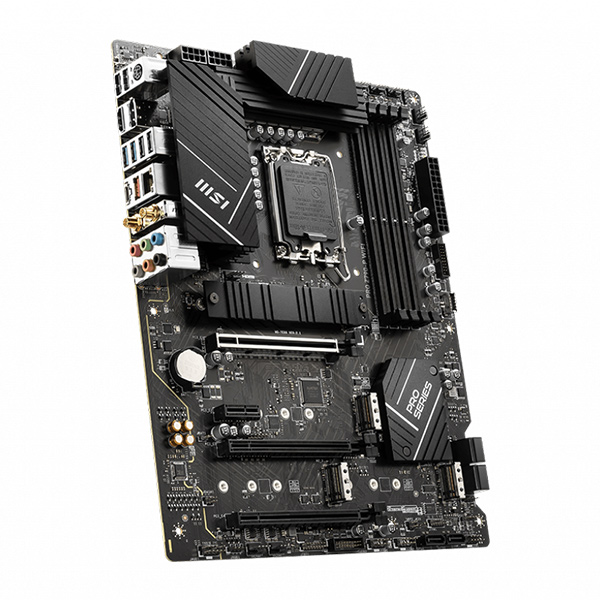

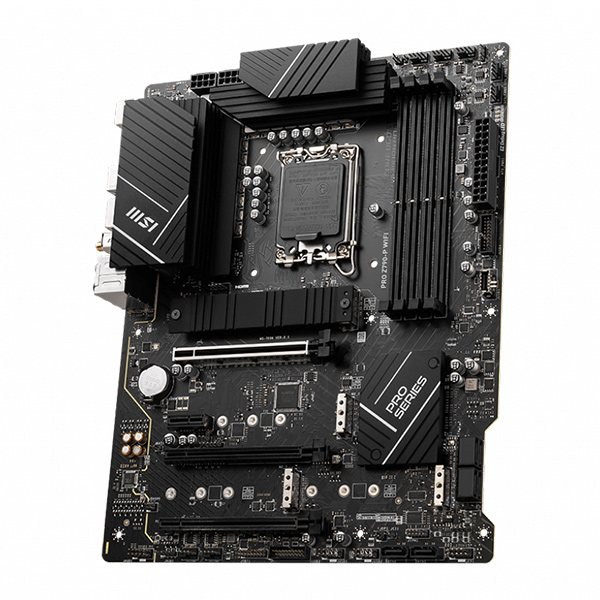

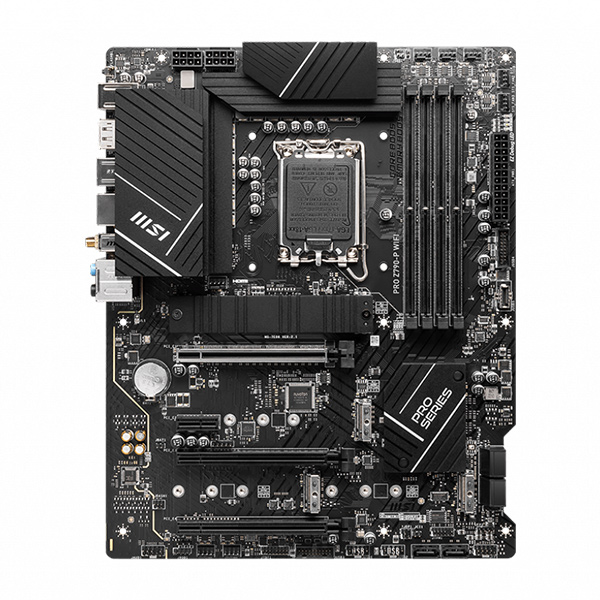

MSI Pro Z790-P WiFi Intel LGA 1700 ATX DDR5 WiFi 6E PCIe 5.0 Gaming Motherboard :
The MSI Pro Z790-P WiFi is engineered for professionals and enthusiasts seeking a balance between performance and reliability. Supporting 12th, 13th, and 14th Gen Intel® Core™ processors via the LGA 1700 socket, it offers DDR5 memory support up to 7000+ MHz (OC), PCIe 5.0 for next-generation graphics cards, and Wi-Fi 6E for high-speed wireless networking. With a robust power design, advanced thermal solutions, and extensive storage options, this motherboard is ideal for high-performance computing tasks.
Features :
- Supports 12th, 13th & 14th Gen Intel® Core™ processors (LGA 1700)
- DDR5 memory support up to 7000+ MHz (OC), up to 128GB
- PCIe 5.0 x16 slot for next-gen graphics cards
- 4 x M.2 slots supporting PCIe 4.0 with M.2 Shield Frozr
- Wi-Fi 6E and 2.5G LAN for high-speed networking
- USB 3.2 Gen 2×2 Type-C for 20Gbps data transfer
- Audio Boost with Realtek ALC897 codec
- Extended Heatsink Design for enhanced thermal performance
- EZ Debug LED for troubleshooting
Specifications :
| Model | MSI PRO Z790-P WIFI |
| CPU Socket | LGA 1700 |
| Chipset | Intel Z790 |
| Form Factor | ATX |
| Memory Support | DDR5, Dual Channel, 4 DIMMs, up to 7000+ MHz (OC), Max 128GB |
| Expansion Slots | 1 x PCIe 5.0 x16, 1 x PCIe 4.0 x16 (x4 mode), 1 x PCIe 3.0 x1 |
| Storage Interface | 4 x M.2 (PCIe 4.0 x4), 6 x SATA 6Gb/s |

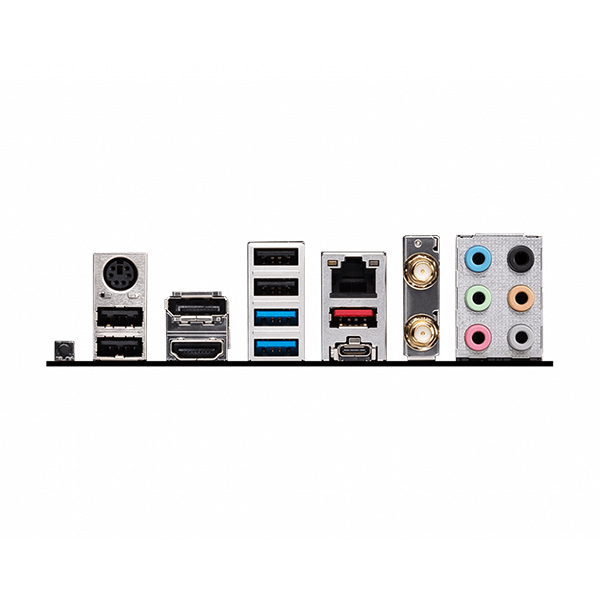

| USB Ports (Rear) | 1 x USB 3.2 Gen 2×2 Type-C, 1 x USB 3.2 Gen 2 Type-A, 2 x USB 3.2 Gen 1 Type-A, 4 x USB 2.0 |
| USB Ports (Internal) | 1 x USB 3.2 Gen 2 Type-C, 2 x USB 3.2 Gen 1 Headers, 2 x USB 2.0 Headers |
| Networking | Intel Wi-Fi 6E, Intel 2.5G LAN |
| Audio | Realtek ALC897 with Audio Boost |
| RGB Lighting | EZ Debug LED |
| Power Phases | 14+1+1 Duet Rail VRM |
| Cooling Features | Extended Heatsinks, M.2 Shield Frozr, Multiple Fan Headers |
| BIOS Features | Click BIOS 5, Flash BIOS Button, EZ Debug LED |
| OS Compatibility | Windows 11 / 10 64-bit |
| Warranty | 3 Years |
