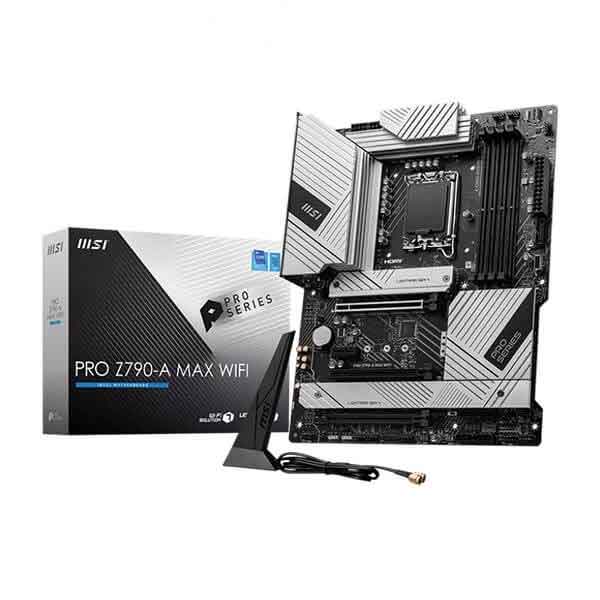

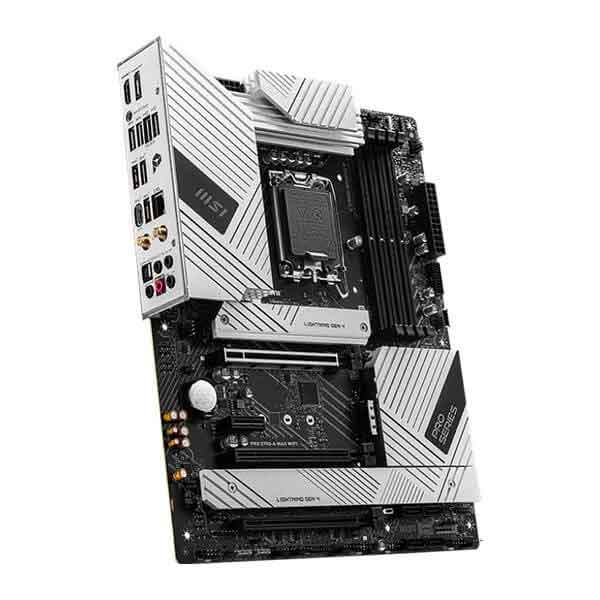

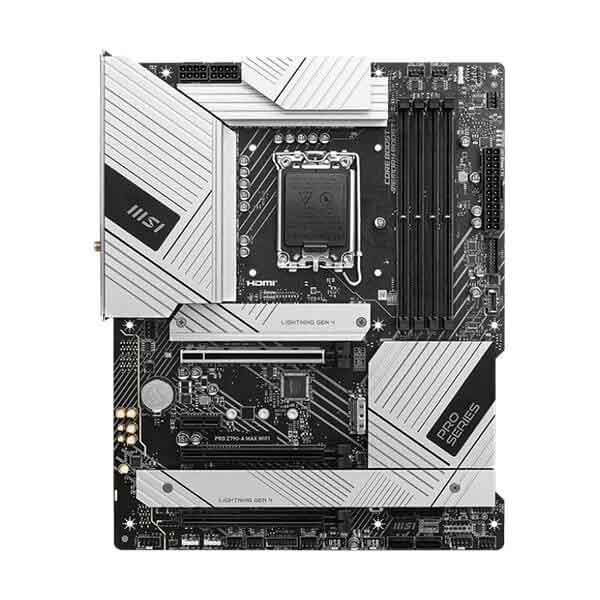

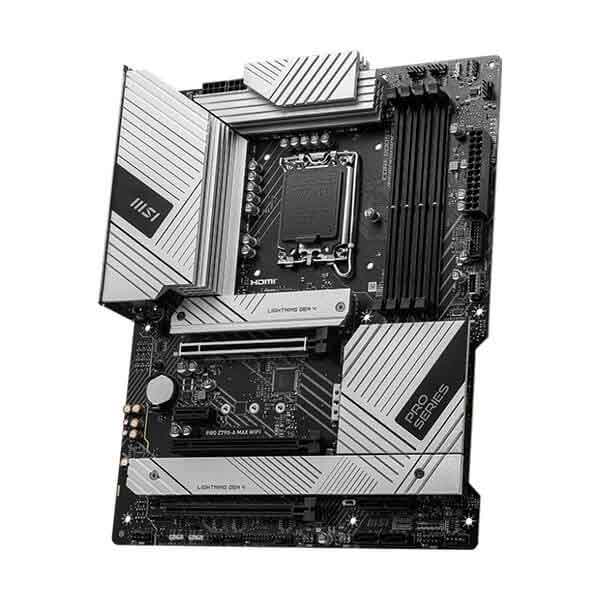

MSI Pro Z790-A Max WiFi Intel LGA 1700 ATX DDR5 WiFi 7 PCIe 5.0 Gaming Motherboard
Overview :
The MSI Pro Z790-A Max WiFi is a professional-grade ATX motherboard designed for stability, performance, and future-ready connectivity. Built on the Intel Z790 chipset and compatible with 13th & 14th Gen Intel Core processors (LGA 1700), it delivers cutting-edge features like DDR5 support, PCIe 5.0, and WiFi 7, making it ideal for professionals, creators, and power users. With a robust VRM design, extended thermal solution, high-speed storage options, and a clean, minimalist aesthetic, this board ensures reliable performance in any work or productivity build. Whether you’re editing, rendering, or multitasking, the MSI Pro Z790-A Max WiFi ensures your system runs smooth and cool under pressure.
Features :
- Supports 13th & 14th Gen Intel Core processors (LGA 1700)
- DDR5 memory support up to 7800+ MHz (OC), max 192GB
- PCIe 5.0 x16 slot for future-proof GPU support
- 4x M.2 slots, including 1x PCIe 5.0 M.2 with M.2 Shield Frozr
- WiFi 7 + 2.5G LAN for high-speed, low-latency connectivity
- 14+1+1 Duet Rail VRM with premium power delivery
- USB 3.2 Gen 2×2 Type-C (20Gbps) for high-speed external devices
- Extended Heatsinks and M.2 thermal pads for efficient cooling
- Pre-installed I/O Shield for easy and clean installation
- MSI Center & BIOS FlashBack for easy tuning and updates
Specifications :
| Model | MSI Pro Z790-A Max WiFi |
| CPU Socket | LGA 1700 |
| Chipset | Intel Z790 |
| Form Factor | ATX |
| Memory Support | DDR5, Dual Channel, 4 DIMMs, up to 7800+ MHz (OC), Max 192GB |
| Expansion Slots | 1 x PCIe 5.0 x16, 1 x PCIe 4.0 x16 (x4 mode), 2 x PCIe 3.0 x1 |
| Storage Interface | 4 x M.2 (1x PCIe 5.0, 3x PCIe 4.0/SATA), 6 x SATA 6Gb/s |

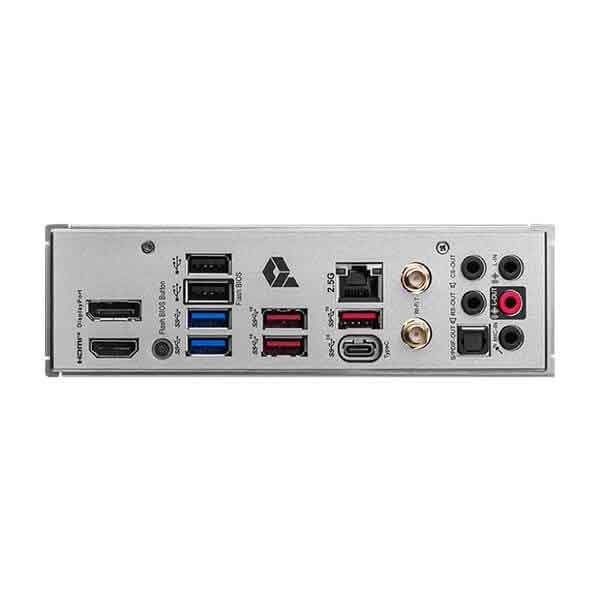

| USB Ports (Rear) | 1 x USB 3.2 Gen 2×2 Type-C, 4 x USB 3.2 Gen 2, 4 x USB 2.0 |
| USB Ports (Internal) | USB 3.2 Gen 2×2 Front Type-C, USB 3.2 Gen 1, USB 2.0 Headers |
| Networking | Intel WiFi 7, Intel 2.5G LAN |
| Audio | Realtek ALC897 with Audio Boost |
| RGB Lighting | N/A (Business-style design) |
| Power Phases | 14+1+1 Duet Rail VRM with 55A DrMOS |
| Cooling Features | Extended Heatsinks, M.2 Shield Frozr, Pump Fan Header |
| BIOS Features | Click BIOS 5, Flash BIOS Button, EZ Debug LED |
| OS Compatibility | Windows 11 / 10 64-bit |
| Warranty | 3 Years |
