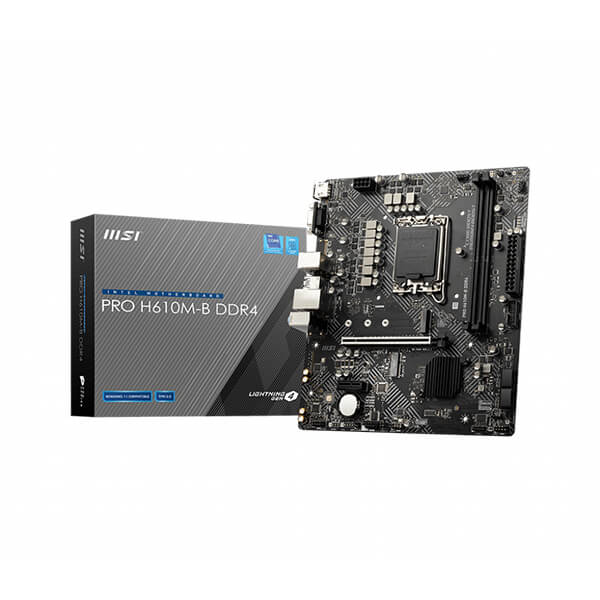

MSI Pro H610M-B M-ATX Motherboard (Intel Socket LGA1700, DDR4)
Feature:
MSI Pro H610M-B PRO series helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity.
- Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors for LGA 1700 socket
- MSI Pro H610M-B Supports DDR4 Memory, up to 3200(MAX) MHz
- Core Boost : With premium layout and digital power design to support more cores and provide better performance
- Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
- Lightning Fast Experience: PCIe 4.0
- Audio Boost: Reward your ears with studio grade sound quality
- Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength.
Specification:
| Platform | INTEL |
| Socket | LGA1700 |
| Cpu Type | 14th Gen,13th Gen,12th Gen,Pentium Gold,Celeron |
| Chipset | H610 |
| Memory Speed | up to 3200 |
| Max Memory Support | 64 GB |
| Supported Memory Type | DDR4 |
| Channel Supported | Dual Channel |
| Memory Feature | Supports non-ECC, un-buffered memory |
| Graphics Port | 1x HDMI,1x VGA |
| Expansion Slots | 1x PCIe x16 slot (From CPU) Supports up to PCIe 4.0 x16 1x PCIe x1 slot Supports PCIe 3.0 x1 1x M.2 slot with E-key for PCIe WiFi module only (M2_WIFI1) |
| Back Panel I/O Ports | HDMI VGA Keyboard/Mouse USB 3.2 Gen 1 5Gbps Type-A LAN port Audio connector USB 2.0 |
| Internal I/O Connector | 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x TPM module connector 1x Serial port connector 1x 4-pin CPU fan connector 1x 4-pin System fan connector |
| Form Factor | Micro-ATX |
| Warranty | 3 Years |
| Note | *** Features, Price, Specifications are subject to change without notice. |
