MSI PRO B760M-P DDR5
MSI PRO B760M-P DDR5 Motherboard
23,999 11,899 (Inclusive of GST) Add to cart
Sale!

MSI PRO B760M-P DDR5 Motherboard

11,899 (Inclusive of GST)

-50%
Brand:

In stock

MSI PRO B760M-P DDR5 Motherboard :

Features:

  • Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors for LGA 1700 socket
  • Supports DDR5 Memory, Dual Channel DDR5 6800+MHz (OC)
  • Core Boost : With premium layout and digital power design to support more cores and provide better performance
  • Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
  • Lightning Fast Experience: PCIe 4.0, Lightning Gen4 x4 M.2 with M.2 Shield Frozr
  • AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience
  • Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength

Overview:

PRO SERIES BUSINESS ELEGANCE

The MSI PRO B760M-P DDR5 Motherboard Series is tailored to professionals from all walks of life. The lineup features impressive performance and high quality, while aiming to provide users incredible experience. Users who care about productivity and efficiency can definitely count on the MSI PRO Series to assist you with multitasking and increasing efficiency.

COOLING OVERVIEW
M.2 Shield Frozr
Strengthened M.2 thermal solution helps keep M.2 SSD safe and ensures incredible performance.
Chipset Heatsink
The chipset heatsink is designed to reduce dust and noise and also capable of maintaining high efficiency of PCH.

CONTROL IN ONE CLICK
MSI PRO B760M-P DDR5 Motherboard lets you manage speeds and temperatures for all your system and CPU fans in BIOS and software with a simplified graphical interface. You can also set up to 4 temperature targets, which will adjust the fan speeds automatically.

FROZR AI COOLING

Detecting CPU & GPU temperatures and automatically adjusting fan duty of system fans to a proper value by adopting MSI AI ENGINE.

AUTO DETECT YOUR FAN

MSI fan headers automatically detect fans running in DC or PWM mode for optimal tuning of fan speeds and silence. Hysteresis also makes your fans spin up fluently to make sure your system stays silent, no matter what.

CORE BOOST

MSI PRO B760M-P comes with Core Boost technology combines MSI’s premium layout and optimized power design which allows for faster and undistorted current delivery to the CPU at pin-point precision. Not only supporting multi-core CPU, also creating the perfect conditions for your CPU overclocking.All you need is MSI PRO B760M-P.

EZ M.2 clip

Have trouble turning screws? MSI innovative EZ M.2 clip assist you install an M.2 SSD quickly and effortlessly.\

LIGHTNING GEN 4 PCI-E

Doubling over the previous generation, the bandwidth of a x16 interface can reach 64GB/s

FAST AND FUTURE-READY STORAGE

MSI PRO B760M-P DDR5 Motherboard support all the latest storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster and have a real advantage over your enemies.

LATEST DDR5 MEMORY WITH SMT SLOT

MSI PRO B760M-P A huge step of DDR performance enhancement with the latest DDR5 memory. Combines with dedicated SMT welding process and MSI Memory Boost technology, MSI PRO B760M-P motherboard is ready to deliver the world class memory performance.

EXCLUSIVE UI OF AIDA64 EXTREME

MSI motherboards provide 60 days free trial of AIDA64 Extreme – MSI edition. AIDA64 Extreme is an almighty application for system information, diagnostics and benchmarks. With the application, you can monitor the detailed hardware and software information on PC and save it to file in multiple formats such as CSV and HTML.

SYSTEM SAFETY

All MSI PRO series motherboards have SECURITY function in BIOS to protect every private files for no matter business or daily use in MSI PRO B760M-P.

EXTEND YOUR RGB EXPERIENCE WITH EASE

Add more color if you want with MSI PRO B760M-P! Mystic Light Extension pin header provides an intuitive way to control additional RGB strips and other RGB peripherals added to a system, without needing a separate RGB controller.

Specifications:

CHIPSETINTEL B760
CPUSupport Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors LGA 1700
MEMORY4x DDR4, Maximum Memory Capacity 128GB Memory Support 5333(OC)/ 5200(OC)/ 5066(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC) Max. overclocking frequency: • 1DPC 1R Max speed up to 5333+ MHz • 1DPC 2R Max speed up to 4800+ MHz • 2DPC 1R Max speed up to 4400+ MHz • 2DPC 2R Max speed up to 4000+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel® Extreme Memory Profile (XMP)
ONBOARD GRAPHICS.2x HDMI™ Support HDMI™ 2.1, maximum resolution of 4K 60Hz* 1x DisplayPort Support DP 1.4, maximum resolution of 4K 60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed
SLOT1x PCI-E x16 slot

2x PCI-E x1 slot

PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)

PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset)

PCI_E3 Gen PCIe 4.0 supports up to x1 (From Chipset)

STORAGE2x M.2

M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices

M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices

4x SATA 6G

* SATA5 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.

RAIDSupports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
USB4x USB 2.0 (Rear)

4x USB 2.0 (Front)

1x USB 3.2 Gen1 Type A (Rear)

2x USB 3.2 Gen1 Type A (Front)

1x USB 3.2 Gen2 Type C (Rear)

LANRealtek® RTL8125BG 2.5G LAN
WIRELESS LAN & BLUETOOT.Intel® Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth® 5.3, FIPS, FISMA * Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11. ** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11
AUDIORealtek® ALC897 Codec 7.1-Channel High Definition Audio
INTERNAL IO1x Power Connector(ATX_PWR)

1x Power Connector(CPU_PWR)

1x CPU Fan

2x System Fan

2x Front Panel (JFP)

1x Chassis Intrusion (JCI)

1x Front Audio (JAUD)

1x Printer Port (JLPT)

1x Com Port (JCOM)

1x RGB LED connector(JRGB)

1x TPM pin header(Support TPM 2.0)

4x USB 2.0 ports

2x USB 3.2 Gen1 Type A ports

LED FEATURE4x EZ Debug LED

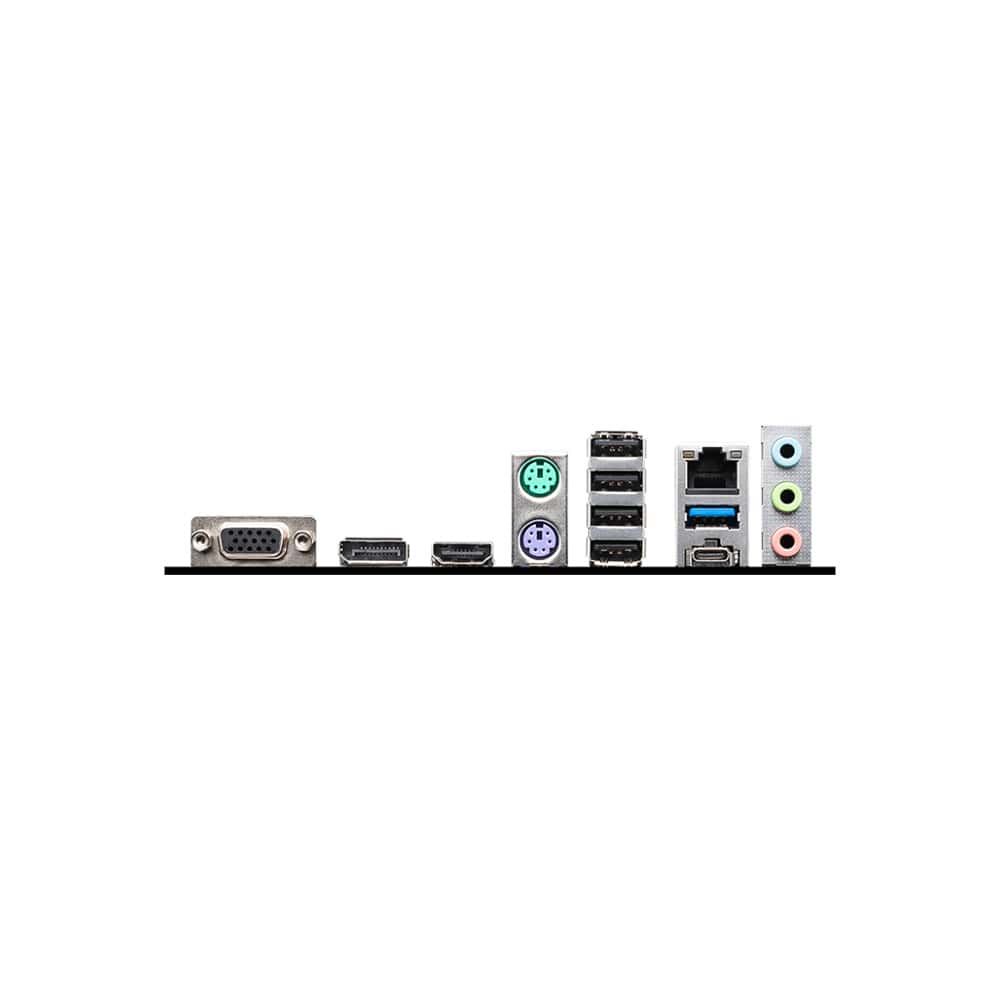

BACK PANEL PORTSKeyboard / Mouse

DisplayPort

USB 3.2 Gen 1 5Gbps (Type-A)

2.5G LAN

Wi-Fi / Bluetooth

Audio Connectors

USB 2.0

HDMI™

USB 3.2 Gen 2 10Gbps (Type-A)

OPERATING SYSTEMSupport for Windows® 11 64-bit, Windows® 10 64-bit
PCB INFOmATX 243.84mmx243.84mm
WARRANTY3 YEARS



Additional information

Weight3 kg
Brand

MSI

Memory Slot Type

DDR5

Chipset

B760

Form Factor

M-ATX

Memory Slot

4 Slot

Platfrom

Intel

Socket

LGA1700
