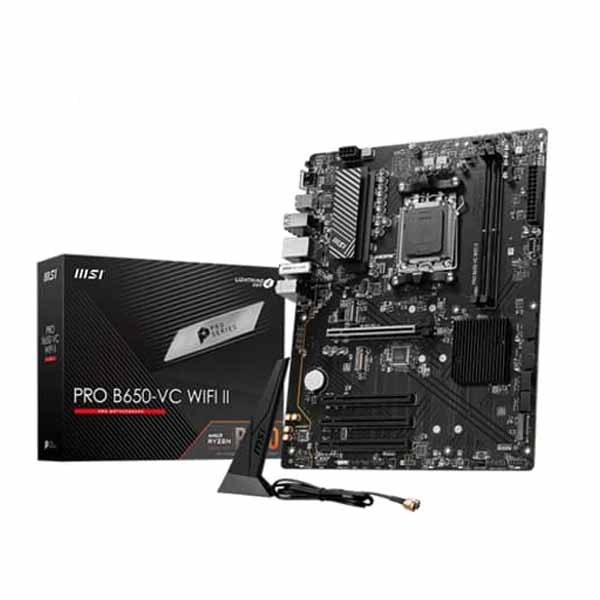

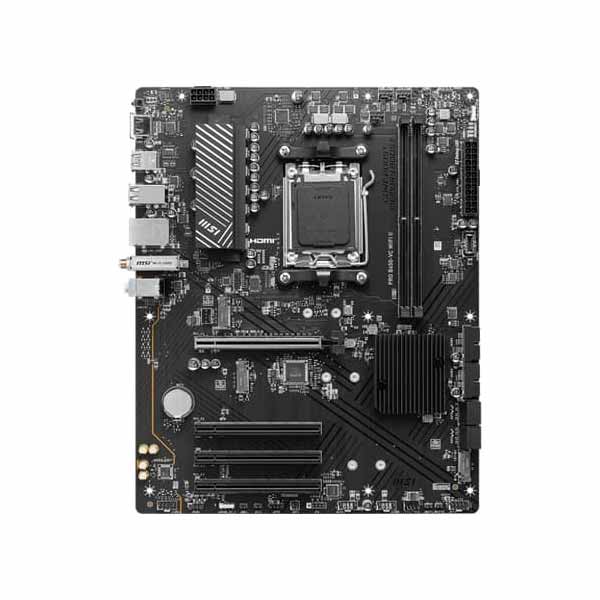

MSI Pro B650-VC WiFi 2 DDR5 AMD AM5 ATX WiFi 6E PCIe 4.0 Gaming Motherboard :
Overview :
The MSI Pro B650-VC WiFi 2 is an ATX AM5 motherboard built on the AMD B650 chipset, designed for mainstream users seeking reliable performance. MSI Pro B650-VC WiFi 2 supports Ryzen 7000/8000/9000 series CPUs, DDR5 memory up to 7800+ MHz (OC), offers dual CPU-sourced M.2 slots, Wi‑Fi 6E + Bluetooth 5.x, and 2.5 GbE LAN. MSI Pro B650-VC WiFi 2 With essential cooling features, easy-to-use BIOS tools, and professional-grade build quality, it provides a solid foundation for everyday builds and light workstations.
Features :
- Supports Ryzen 7000/8000/9000 series processors on AM5 socket
- Supports DDR5 dual-channel memory up to 7800+ MHz (OC) with two DIMM slots
- 12+2+1 Duet Rail VRM with Core Boost and heavy-plated heatsinks for stable power
- 2× CPU-sourced PCIe 4.0 x4 M.2 slots + chipset M.2 x2 for fast NVMe storage
- 4× SATA 6 Gb/s ports with RAID support
- PCIe 4.0 x16 Steel Armor slot for GPU support
- Wi‑Fi 6E + Bluetooth 5.x via M.2 Key-E module
- 2.5 GbE LAN (Realtek) for fast wired connectivity
- Rear I/O includes HDMI 2.1, USB 3.2 Gen2 + Gen1, USB-C front headers
- EZ M.2 clip, Flash BIOS Button, Debug LEDs, TPM header simplify builds & updates
- 6-layer 2 oz copper PCB with heavy heatsinks, optimized for reliable operation
Specifications :
| Model | MSI PRO B650‑VC WiFi II |
| Form Factor | ATX (305 × 243.8 mm) |
| Socket / Chipset | AM5 / AMD B650 |
| CPU Support | Ryzen 7000 / 8000 / 9000 Series |
| Memory | 2× DDR5 DIMM, up to 7800+ MHz OC, max 128 GB |
| VRM Design | 12+2+1 Duet Rail, heavy heatsinks, dual 8-pin CPU power |
| PCIe Slots | 1× PCIe 4.0 x16 (Steel Armor) + chipset expansion lanes |
| M.2 Slots | 2× CPU-sourced PCIe 4.0 x4, 1× chipset-sourced PCIe x2 |
| SATA Ports | 4× SATA 6 Gb/s with RAID support |
| LAN | Realtek 2.5 GbE Ethernet |
| Wi‑Fi / Bluetooth | Wi‑Fi 6E (802.11ax), Bluetooth 5.x via M.2 Key-E module |

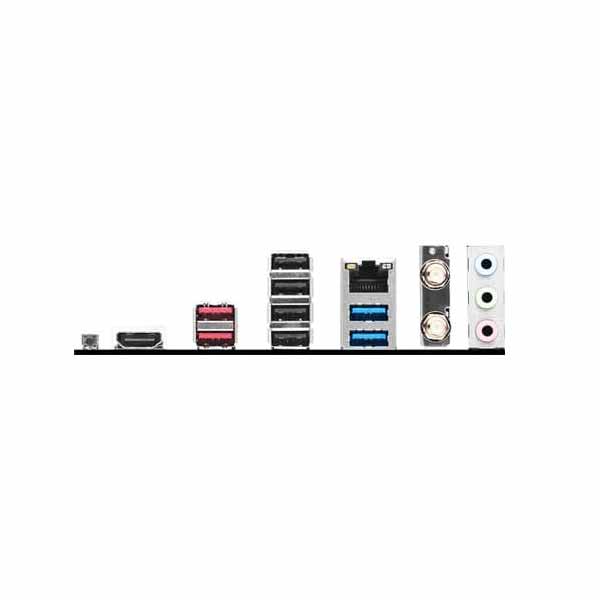

| Rear USB | USB 3.2 Gen2, Gen1 Type-A, HDMI 2.1, Flash BIOS Button |
| Internal Headers | USB-C Gen2 front, USB 3.2 Gen1, USB 2.0, TPM |
| Audio | Realtek HD Audio (codec unspecified) |
| Build & Cooling | Dual VRM heatsinks, chipset heatsink, 6-layer 2 oz copper PCB |
| DIY Features | EZ M.2 clip, Flash BIOS Button, Debug LEDs, TPM header |
| Warranty | 3 Years |
