MSI Pro B650-S WiFi DDR5 AMD AM5 ATX WiFi 6E PCIe 4.0 Gaming Motherboard :
Overview :

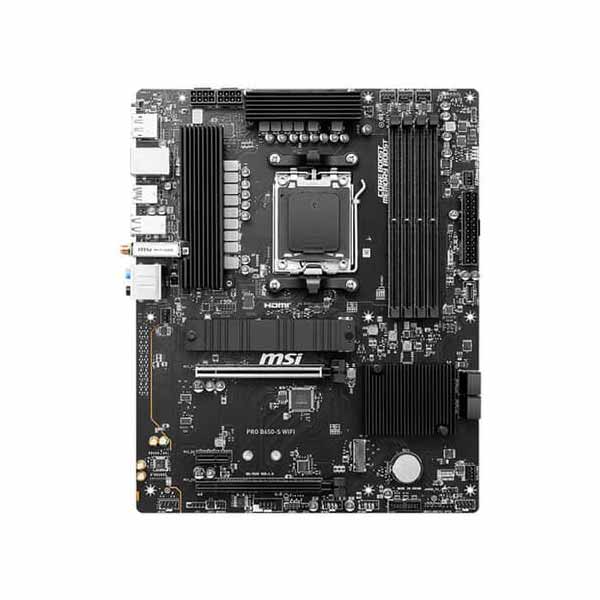

The MSI Pro B650-S WiFi is a budget-friendly ATX motherboard for AMD’s AM5 platform, built on the B650 chipset. MSI Pro B650-S WiFi Ideal for mainstream users and small business setups, it supports Ryzen 7000/8000/9000 series CPUs, DDR5 memory up to 7200+ MHz (OC), and offers a solid feature set including PCIe 4.0, dual M.2 NVMe, Wi‑Fi 6E + Bluetooth 5.3, and 2.5 Gb LAN. MSI Pro B650-S WiFi With a robust 12+2 Duet Rail VRM and full-gen4 support for storage and I/O.
Features :
- AM5 socket compatibility for Ryzen 7000/8000/9000 CPUs
- 12+2 Duet Rail VRM with dual 8‑pin EPS connectors—supports stable power delivery
- DDR5 memory support up to 7200+ MHz (OC), up to 192 GB
- Expansion slots: 1× PCIe 4.0 x16 GPU, 1× PCIe 4.0 x4 (chipset), 1× PCIe 3.0 x1
- Storage options: 2× PCIe 4.0 x4 M.2 slots (with Shield Frozr), 4× SATA 6 Gb/s ports
- Networking: Realtek 8125BG 2.5 GbE LAN + AMD Wi‑Fi 6E (6 GHz) + Bluetooth 5.3

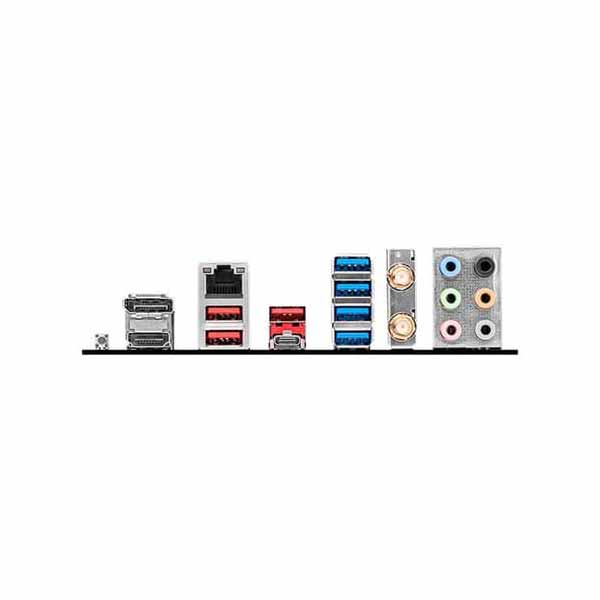

- Rear I/O: DisplayPort 1.4, HDMI 2.1, 3× USB 3.2 Gen2 (10 Gbps), 4× USB 3.2 Gen1 (5 Gbps), 1× USB‑C Gen2x2 (20 Gbps), BIOS flashback button
- Internal headers: USB‑C Gen2, USB 3.2 Gen1, USB 2.0, fan and RGB headers, TPM 2.0 support
- Audio: Realtek ALC897, 7.1-channel HD Audio with Audio Boost
- Build quality & cooling: Dual heatsinks with 7 W/mK thermal pads, 6‑layer 2 oz copper PCB, M.2 Shield Frozr
Specifications :
| Model | MSI PRO B650‑S WiFi |
| Form Factor | ATX (243.84 × 304.8 mm) |
| CPU Socket | AM5 (supports Ryzen 7000/8000/9000) |
| Chipset | AMD B650 |
| Power Delivery | 12+2 Duet Rail VRM, dual 8‑pin CPU power connectors |
| Memory | 4× DDR5 DIMM, OC up to 7200+ MHz, max 192 GB |
| Expansion Slots | 1× PCIe 4.0 x16 (GPU), 1× PCIe 4.0 x4, 1× PCIe 3.0 x1 |
| M.2 Slots | 2× PCIe 4.0 x4 (2280/22110) w/ Shield Frozr |
| SATA Ports | 4× SATA 6 Gb/s |
| Rear USB Ports | 1× USB‑C Gen2x2 (20 Gbps), 3× USB-A Gen2 (10 Gbps), 4× USB-A Gen1 (5 Gbps) |
| Internal USB Headers | 1× USB‑C Gen2, USB 3.2 Gen1, USB 2.0 |
| Display Outputs | 1× HDMI 2.1, 1× DisplayPort 1.4 |
| Networking | Realtek 2.5 GbE LAN, Wi‑Fi 6E + Bluetooth 5.3 |
| Audio | Realtek ALC897, 7.1 HD Audio, Audio Boost |
| Cooling & PCB | MOSFET pad heatsinks, M.2 Shield Frozr, 6-layer PCB 2 oz copper |
| Back Panel Features | Flash BIOS Button, EZ Debug LEDs |
| Warranty | 3 Years |
