MSI Pro B650-A WiFi DDR5 AMD AM5 ATX WiFi 6E PCIe 4.0 Gaming Motherboard :
Overview :
The MSI Pro B650-A WiFi is a robust ATX motherboard on AMD’s B650 chipset for the AM5 socket, supporting Ryzen 7000/8000/9000 series CPUs. MSI Pro B650-A WiFi offers up to DDR5‑7600+ MHz (OC), three PCIe 4.0 M.2 slots, including dual slots wired to the CPU, Wi‑Fi 6E + Bluetooth 5.3, 2.5 GbE LAN, a powerful 14+2+1-phase VRM, and business-class cooling—making MSI Pro B650-A WiFi ideal for productivity setups and high-performance builds
Features :
- Supports AMD Ryzen 7000/8000/9000 series CPUs on AM5 socket
- Supports DDR5 memory up to 7600+ MHz (OC) across 4 DIMM slots
- 14+2+1 Duet Rail VRM with dual 8‑pin EPS power and Core Boost, up to 170 W CPUs
- Three PCIe 4.0 M.2 slots (two from CPU, one from chipset) with M.2 Shield Frozr
- PCIe 4.0 x16 Steel Armor slot plus PCIe 3.0 x1 expansion for GPU durability
- Integrated Wi‑Fi 6E + Bluetooth 5.3 wireless module
- Built-in Realtek RTL8125B 2.5 GbE LAN for fast wired networking
- USB 3.2 Gen2x2 Type‑C (20 Gbps) rear port plus multiple Gen2/Gen1 USB‑A ports
- Supports HDMI 2.1 and DisplayPort 1.4 for Ryzen integrated graphics
- Realtek ALC4080 7.1-channel HD Audio with Audio Boost
- Extended heatsinks with 7 W/mK thermal pads, 6-layer 2 oz copper PCB
- DIY-friendly tools: Flash BIOS Button, Clear CMOS, Debug LEDs, TPM header
- Ships with 3-year warranty, dual M.2 clips, Wi-Fi antenna, SATA cables included
Specifications :
| Model | MSI PRO B650‑A WiFi |
| Form Factor | ATX (305 × 243.8 mm) |
| CPU Socket | AM5 |
| Chipset | AMD B650 |
| CPU Support | Ryzen 7000 / 8000 / 9000 Series |
| Memory | 4× DDR5 DIMM, OC to 7600+ MHz, up to 256 GB |
| VRM Design | 14+2+1 Duet Rail, dual 8‑pin EPS, Core Boost |
| PCIe Slots | 1× PCIe 4.0 x16 (Steel Armor), 1× PCIe 3.0 x1 |
| M.2 Slots | 2× CPU-wired PCIe 4.0 x4, 1× chipset-wired PCIe 4.0 x4 (Shield Frozr) |
| SATA Ports | 4× SATA 6 Gb/s |
| LAN | Realtek RTL8125B 2.5 GbE LAN |
| Wi‑Fi / Bluetooth | Wi‑Fi 6E (802.11ax), Bluetooth 5.3 |

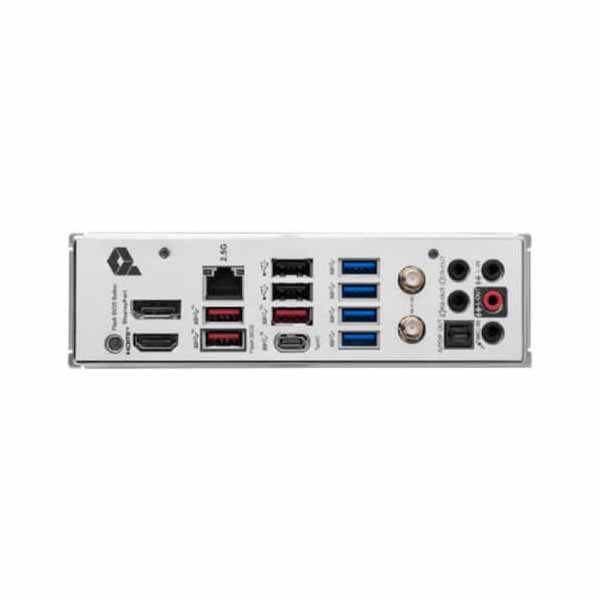

| Rear USB Ports | 1× USB‑C Gen2x2, 3× USB‑A Gen2, 4× USB‑A Gen1, 2× USB 2.0 |
| Internal USB Headers | USB‑C Gen2 front, USB‑A Gen1, USB 2.0 |
| Display Outputs | HDMI 2.1, DisplayPort 1.4 |
| Audio Codec | Realtek ALC4080, 7.1-channel HD Audio |
| Cooling & Build | Extended heatsinks, thermal pads, 6-layer PCB |
| DIY Features | Flash BIOS, Clear CMOS, Debug LEDs, TPM Header |
| Extras | M.2 clips, SATA cables, Wi-Fi antenna |
| Warranty | 3 years |
