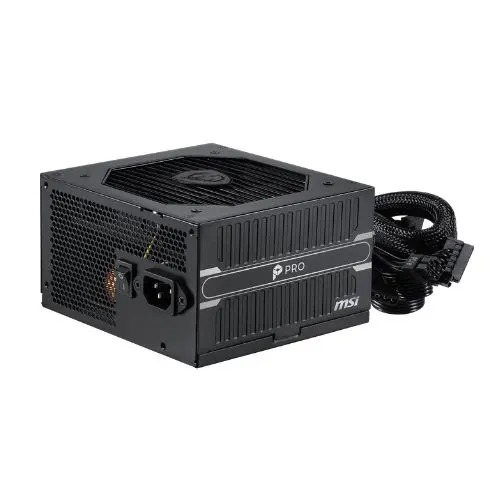

MSI Pro A650BN 650W 80 Plus Bronze ATX Non-Modular Power Supply
Feature:
- 80 PLUS Bronze
- 650 wattage
- 120mm Fan
- DC to DC power Design
- Active PFC Design
- Industrial level protection with OCP, OVP, OPP, OTP, SCP
80 PLUS BRONZE CERTIFIED
The efficiency of your power supply directly influences your system’s performance and your power consumption. The Msi Pro A650BN 80 PLUS BRONZE certification promises lower energy consumption and higher efficiency.
120mm LOW NOISE FAN
The fan’s sleeve bearing reduces the noise generated while maintaining excellent heat dissipation.
POWER AT YOUR SIDE
The power supply is built with DC-to-DC construction, ensuring top-tier efficiency and unwavering voltage stability for your system.
SET FREE FOR THE +12V POWER OUTPUT
The latest CPUs and graphics cards demand more power, and a single +12V rail PSU provides an ideal combination of simplicity, robust power delivery.
Alloy Copper Connector Terminals
The cable connectors are made of copper alloy terminals so that thepower supply will be safer when there is a higher surge in current.
PROTECTION MECHANISMS
operate safely and stably at all times, this power supply comes with a number of protection mechanisms to give you the best peace of mind.
Specification:
| Specification | Details |
|---|---|
| Efficiency Rating | 80 PLUS Bronze (up to 85%) |
| Modular | No |
| Fan Size | 120 mm |
| Fan Bearing | Sleeve Bearing |
| Dimensions (D × W × H) | 140 mm × 150 mm × 86 mm / 5.51 × 5.9 × 3.38 inches |
| PFC Type | Active PFC |
| Power Watt | 650W |
| Input Voltage Range | 100-240V~ |
| Input Frequency Range | 50-60Hz |
| ATX (24 Pin) | 1 |
| EPS (4+4 Pin) | 1 |
| PCI-E (6+2 Pin) | 2 |
| SATA (15 Pin) | 5 |
| PERIPHERAL (4 Pin) | 2 |
| FDD (4 Pin) | 1 |
| Protection | OCP, OVP, SCP, OPP, UVP |
