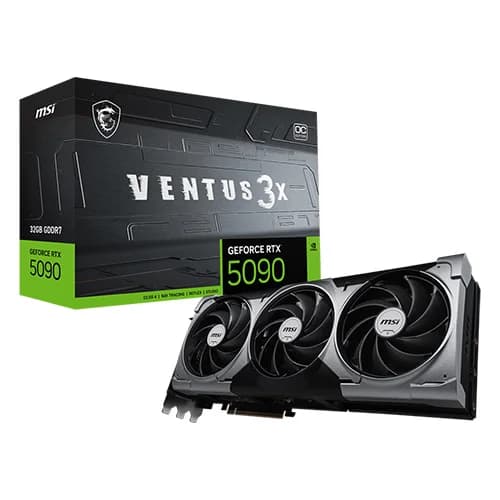

MSI Nvidia GeForce RTX 5090 Ventus 3X OC 32GB GDDR7 Triple Fan Graphics Card :
Overview :
The MSI Nvidia GeForce RTX 5090 Ventus 3X OC 32GB GDDR7 Triple Fan Graphics Card is a high-performance graphics card designed for gamers and creators seeking top-tier performance. Powered by NVIDIA’s Blackwell architecture, MSI Nvidia GeForce RTX 5090 Ventus 3X OC 32GB GDDR7 Triple Fan Graphics Card features 32GB of ultra-fast GDDR7 memory and 21,760 CUDA cores, delivering exceptional performance for demanding applications. MSI Nvidia GeForce RTX 5090 Ventus 3X OC 32GB GDDR7 Triple Fan Graphics Card advanced triple-fan cooling system, reinforced metal backplate, and customizable features ensure both optimal thermal management and aesthetic appeal.
Key Features :
NVIDIA Blackwell Architecture: Provides significant performance and efficiency improvements.
32GB GDDR7 Memory: Offers ample high-speed memory for demanding applications.

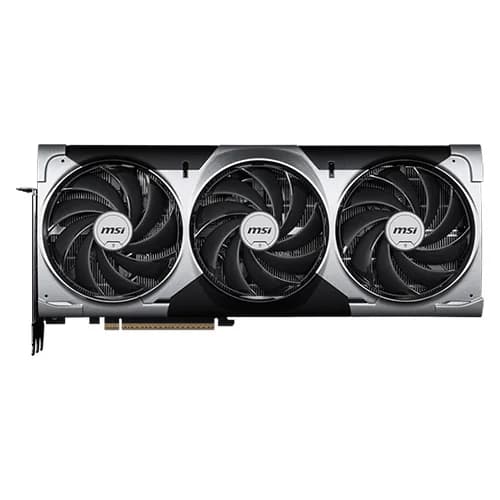

Triple-Fan Cooling System: Features TORX Fan 5.0 design for efficient heat dissipation.
Nickel-Plated Copper Baseplate: Enhances heat transfer from the GPU and memory modules.
Core Pipes: Maximize contact with the GPU baseplate for optimal thermal management.

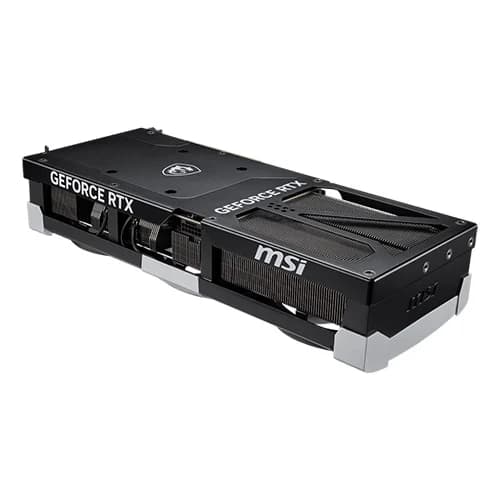

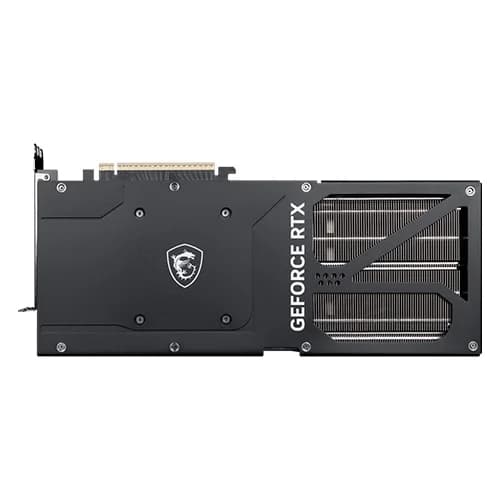

Metal Backplate: Strengthens the graphics card while aiding in heat dissipation.
MSI Center & Afterburner: Provides intuitive performance tuning, advanced thermal controls, and system monitoring.
DLSS 4 Support: Enhances performance and image quality using AI-powered upscaling.
PCIe 5.0 Interface: Ensures high-bandwidth communication with the latest motherboards.

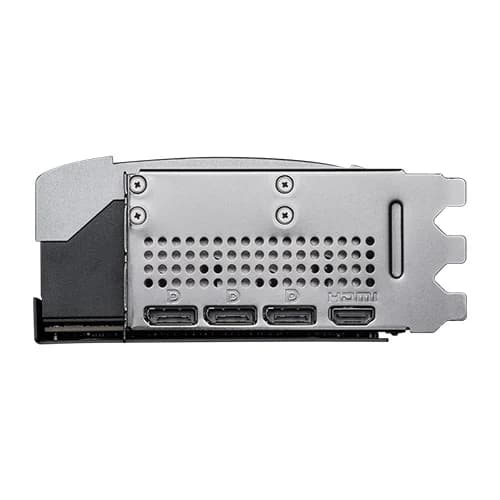

Display Outputs: Supports up to four displays with 3x DisplayPort 2.1b and 1x HDMI 2.1b.
Specifications :
| GPU Model | NVIDIA GeForce RTX 5090 |
| CUDA Cores | 21,760 |
| Base Clock | 2,017 MHz |
| Boost Clock | Up to 2,437 MHz |
| Memory | 32GB GDDR7 |
| Memory Interface | 512-bit |
| Memory Speed | 28 Gbps |
| Memory Bandwidth | 1.79 TB/s |
| Ray Tracing Cores | 4th Generation |
| Tensor Cores | 5th Generation |
| Bus Interface | PCI Express 5.0 x16 |
| Display Outputs | 3x DisplayPort 2.1b, 1x HDMI 2.1b |
| Maximum Digital Resolution | 7680 x 4320 (8K UHD) |
| Multi-Display Support | Up to 4 displays |
| Power Consumption (TDP) | 575W |
| Recommended PSU | 1000W |
| Power Connector | 1 x 16-pin |
| Dimensions (L x W x H) | 325 x 139 x 67 mm |
| Slot Size | Triple-slot |
| DirectX Support | DirectX 12 Ultimate |
| OpenGL Support | OpenGL 4.6 |
| Vulkan API | Vulkan 1.4 |
| Operating System Support | Windows 11 / 10, Linux, FreeBSDx86 |
| Additional Features | NVIDIA DLSS 4, NVIDIA Reflex, NVIDIA Broadcast, NVIDIA Studio Drivers |
| Accessories Included | Graphics Card Support Stand, User Manual |
| Warranty | 3 Years from Manufacturer |
