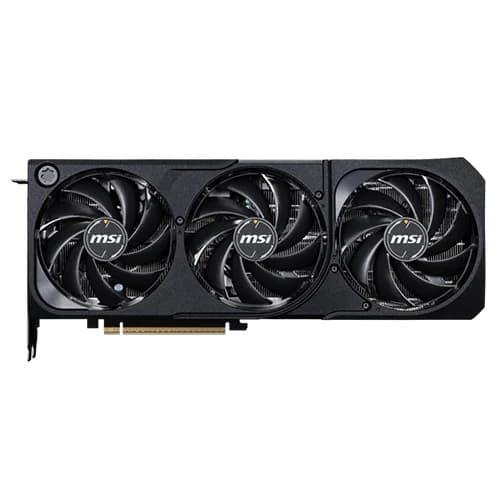

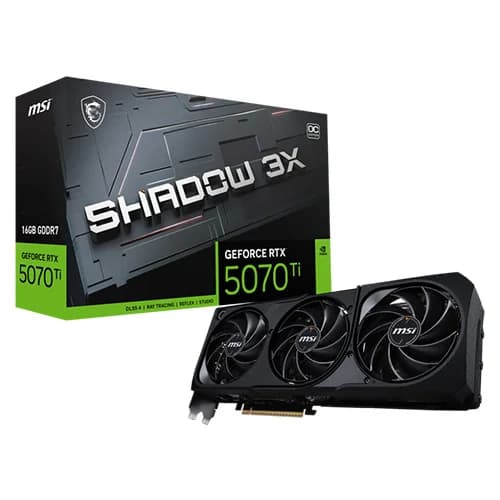

MSI Nvidia GeForce RTX 5070 Ti Shadow 3X OC 16GB GDDR7 Triple Fan Graphics Card :
Overview :
The MSI Nvidia GeForce RTX 5070 Ti Shadow 3X OC 16GB GDDR7 Triple Fan Graphics Card is engineered for high-performance gaming and creative workloads. Built on NVIDIA’s Blackwell architecture, MSI Nvidia GeForce RTX 5070 Ti Shadow 3X OC 16GB GDDR7 Triple Fan Graphics Card offers advanced AI capabilities, real-time ray tracing, and efficient cooling solutions. MSI Nvidia GeForce RTX 5070 Ti Shadow 3X OC 16GB GDDR7 Triple Fan Graphics Card robust design ensures compatibility with various builds without compromising performance.
Key Features :
NVIDIA Blackwell Architecture: Delivers next-generation performance and efficiency.
16GB GDDR7 Memory: Provides ample high-speed memory for demanding applications.
Triple-Fan Cooling System: Features TORX Fan 5.0, nickel-plated copper baseplate, and core pipes for optimal thermal management.
Dual BIOS (Performance/Silent): Allows users to switch between high-performance and quieter operation modes.

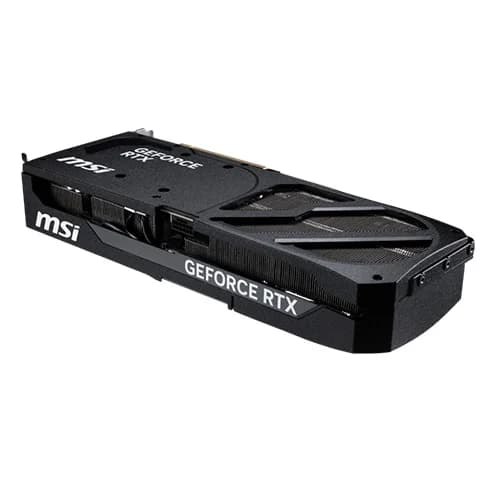

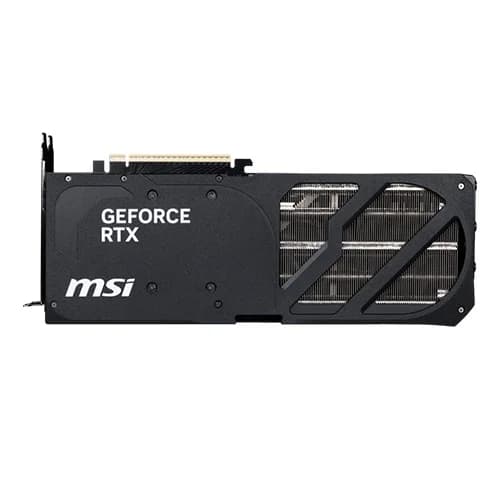

Reinforced Structure: Metal backplate enhances structural integrity and prevents PCB flex.
Compact Design: Dual-slot form factor ensures compatibility with a wide range of cases.
Specifications :
| GPU Model | NVIDIA GeForce RTX 5070 Ti |
| CUDA Cores | 8,960 |
| Base Clock | 2,295 MHz |
| Boost Clock | 2,482 MHz |
| Memory | 16GB GDDR7 |
| Memory Interface | 256-bit |
| Memory Speed | 28 Gbps |
| Memory Bandwidth | 896 GB/s |
| Ray Tracing Cores | 4th Generation |
| Tensor Cores | 5th Generation |
| Bus Interface | PCI Express 5.0 x16 |

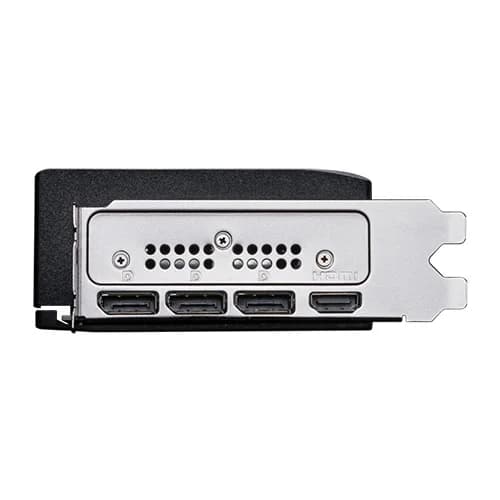

| Display Outputs | 3 x DisplayPort 2.1b, 1 x HDMI 2.1b |
| Maximum Digital Resolution | 7680 x 4320 (8K UHD) |
| Multi-Display Support | Up to 4 displays |
| Power Consumption (TDP) | 300W |
| Recommended PSU | 750W |
| Power Connector | 1 x 16-pin (12V-2×6) |
| Cooling System | Triple-Fan with Copper Base and Composite Heatpipes |
| Dimensions (L x W x H) | 303 x 121 x 49 mm |
| Slot Size | Dual-slot |
| DirectX Support | DirectX 12 Ultimate |
| OpenGL Support | OpenGL 4.6 |
| Vulkan API | Vulkan 1.4 |
| Operating System Support | Windows 11 / 10, Linux, FreeBSDx86 |
| Additional Features | NVIDIA DLSS 4, NVIDIA Reflex, NVIDIA Broadcast, NVIDIA Studio Drivers |
| Accessories Included | User Manual, 2 x 8-pin-to-16-pin adapter |
| Warranty | 3 Years Standard |
