MSI Nvidia GeForce RTX 5060 Ventus 2X OC 8GB GDDR7 Dual Fan Graphics Card :
Overview :

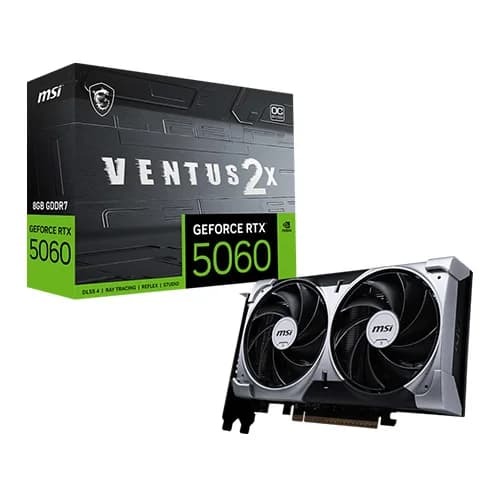

The MSI Nvidia GeForce RTX 5060 Ventus 2X OC 8GB GDDR7 Dual Fan Graphics Card is a dual-fan graphics card built on NVIDIA’s Blackwell architecture, designed for gamers and creators seeking reliable 1080p to 1440p performance. Featuring factory overclocking, high-efficiency TORX Fan 5.0 cooling, and compact dimensions, MSI Nvidia GeForce RTX 5060 Ventus 2X OC 8GB GDDR7 Dual Fan Graphics Card is ideal for mainstream builds that need power without excessive heat or noise.
Key Features :
NVIDIA Blackwell GPU with 3,840 CUDA cores delivers smooth FPS and rendering performance
8 GB GDDR7 memory on a 128‑bit bus (28 Gbps, 448 GB/s bandwidth) ensures fast texture loading and frame throughput

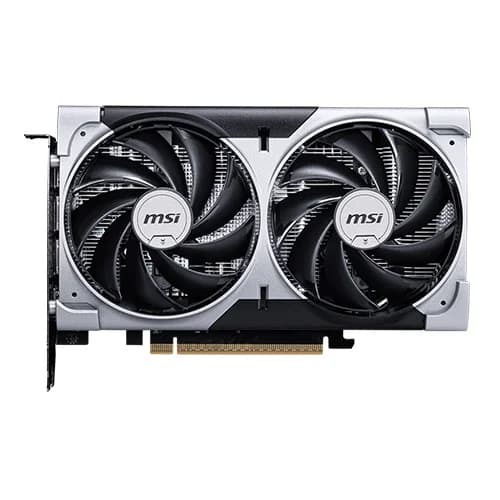

Dual TORX Fan 5.0 cooling with copper heat pipes and backplate ventilation keeps thermals low and acoustics quiet
Supports DLSS 4 and real-time ray tracing with fourth-gen RT and fifth-gen Tensor cores for advanced visuals
Compact dual-slot, 197 × 120 × 41 mm build fits in most mid-tower and compact PC cases
PCIe 5.0 compatibility, 145 W TGP, single 8‑pin power connector, recommended 550 W PSU
Specifications Table :
| Model | MSI GeForce RTX 5060 Ventus 2X OC |
| GPU Architecture | NVIDIA Blackwell |
| CUDA Cores | 3,840 |
| Video Memory | 8 GB GDDR7 |
| Memory Bus/Speed | 128‑bit / 28 Gbps (448 GB/s) |
| Boost Clock (MSI Center) | 2,535 MHz (extreme performance), 2,527 MHz (boost) |
| DirectX Version | 12 Ultimate |
| Bus Interface | PCIe 5.0 x16 (x8 electrically) |

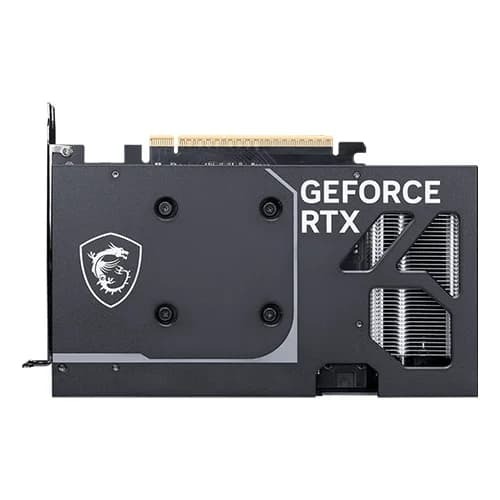

| Cooling System | Dual TORX Fan 5.0, copper heat pipes, ventilated backplate |
| Cooling Features | Zero Frozr stops fans at low temps |
| Card Dimensions | 197 × 120 × 41 mm, dual-slot |
| Power Connector | 1 × 8‑pin |
| TGP | 145 W |
| Recommended PSU | 550 W |

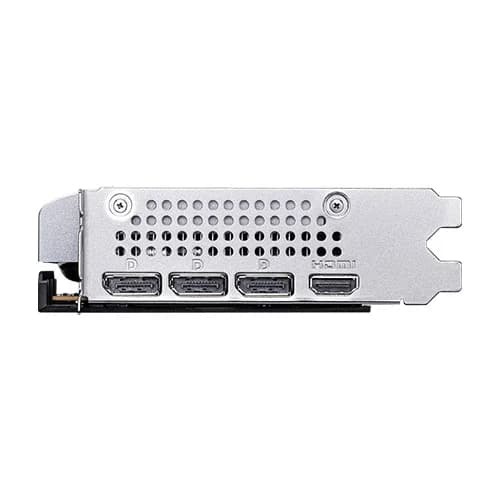

| Display Outputs | 3 × DisplayPort 2.1b, 1 × HDMI 2.1b |
| Max Resolution | 8K (7680×4320) |
| Warranty | 3 years |
