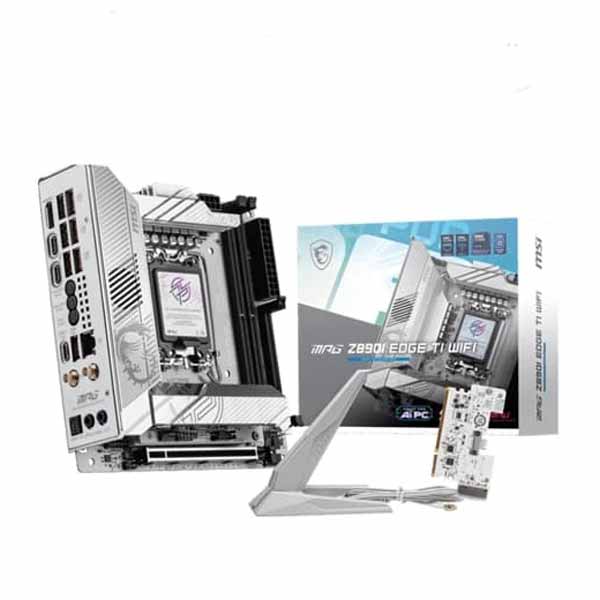

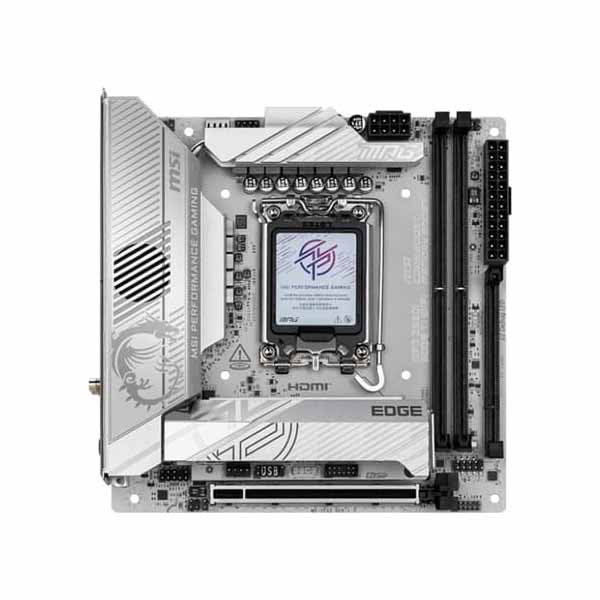

MSI MPG Z890I Edge Ti WiFi Intel LGA 1851 Mini-ITX DDR5 WiFi 7 PCIe 5.0 Gaming Motherboard :
Overview :
The MSI MPG Z890I Edge Ti WiFi is a premium Mini-ITX motherboard designed for enthusiasts seeking top-tier performance in compact builds. Built on the Intel Z890 chipset, it supports Intel® Core™ Ultra Series 2 processors via the LGA 1851 socket, offering compatibility with the latest CPUs. With support for DDR5 memory up to 8600+ MHz (OC), PCIe 5.0, and Wi-Fi 7, this motherboard ensures robust performance for various computing needs.
Features :
- Supports Intel® Core™ Ultra Series 2 processors (LGA 1851)
- DDR5 memory support up to 8600+ MHz (OC), up to 128GB
- 10+1+1+1 Duet Rail Power System with 110A Smart Power Stages
- 1 x PCIe 5.0 x16 slot for next-gen graphics cards
- 1 x M.2 PCIe 5.0 slot and 3 x M.2 PCIe 4.0 slots with EZ M.2 Shield Frozr II
- Wi-Fi 7 and 5G LAN for high-speed networking
- 2 x Thunderbolt 4 ports for 40Gbps data transfer and 8K display support
- Audio Boost 5 with Realtek ALC1220P codec
- Extended Heatsink Design with heat-pipe for enhanced thermal performance
- EZ Debug LED, Smart Button, and Pre-installed I/O Shield for streamlined installation
Specifications :
| Model | MSI MPG Z890I Edge Ti WiFi |
| CPU Socket | LGA 1851 |
| Chipset | Intel Z890 |
| Form Factor | Mini-ITX |
| Memory Support | DDR5, Dual Channel, 2 DIMMs, up to 8600+ MHz (OC), Max 128GB |
| Expansion Slots | 1 x PCIe 5.0 x16 |
| Storage Interface | 1 x M.2 (PCIe 5.0 x4), 3 x M.2 (PCIe 4.0 x4 via 5-in-1 XPANDER), 2 x SATA 6Gb/s |

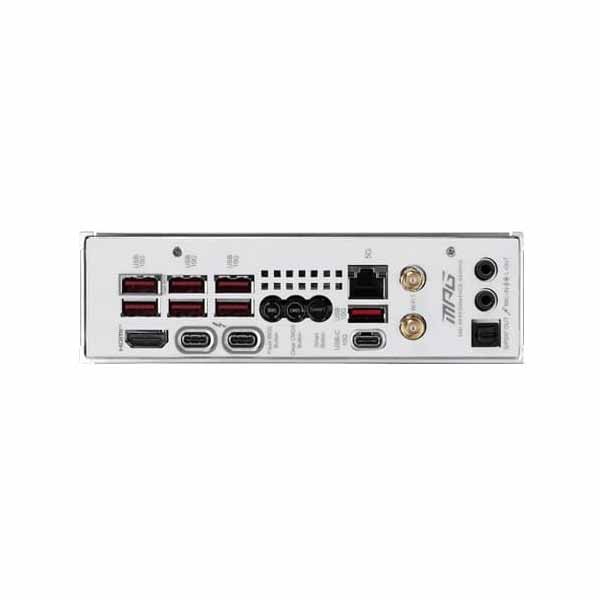

| USB Ports (Rear) | 2 x Thunderbolt 4 (USB-C), 1 x USB 3.2 Gen 2×2 Type-C, 4 x USB 3.2 Gen 2 Type-A, 1 x USB 2.0 |
| USB Ports (Internal) | 1 x USB 3.2 Gen 2×2 Type-C, 2 x USB 3.2 Gen 1 Headers, 2 x USB 2.0 Headers |
| Networking | Intel Wi-Fi 7, Killer 5G LAN, Bluetooth 5.4 |
| Audio | Realtek ALC1220P with Audio Boost 5 |
| RGB Lighting | Mystic Light with ARGB & RGB headers |
| Power Phases | 10+1+1+1 Duet Rail VRM with 110A Smart Power Stages |
| Cooling Features | Extended Heatsinks, Heat-pipe, M.2 Shield Frozr II, Multiple Fan Headers |
| BIOS Features | Click BIOS 5, Flash BIOS Button, EZ Debug LED, Smart Button |
| OS Compatibility | Windows 11 / 10 64-bit |
| Warranty | 3 Years |
