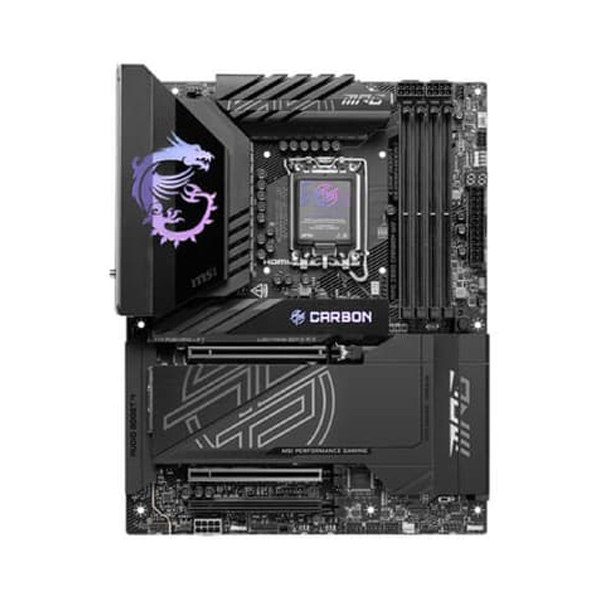

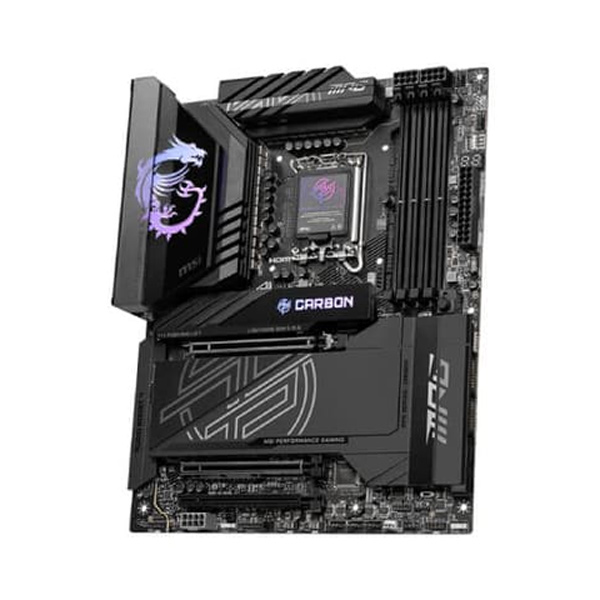

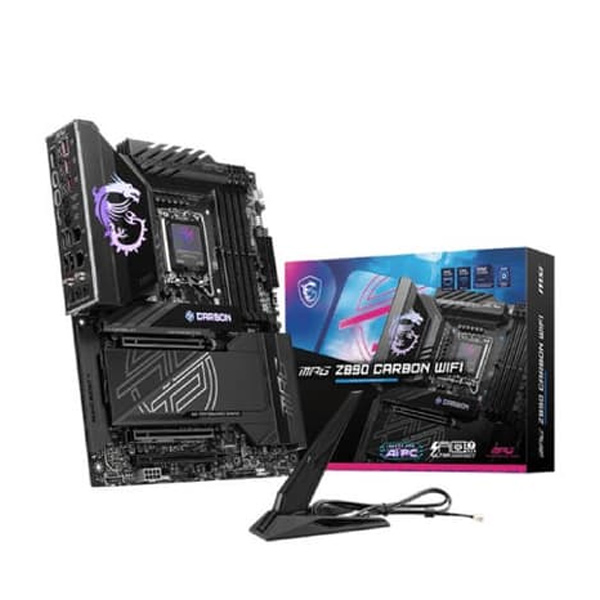

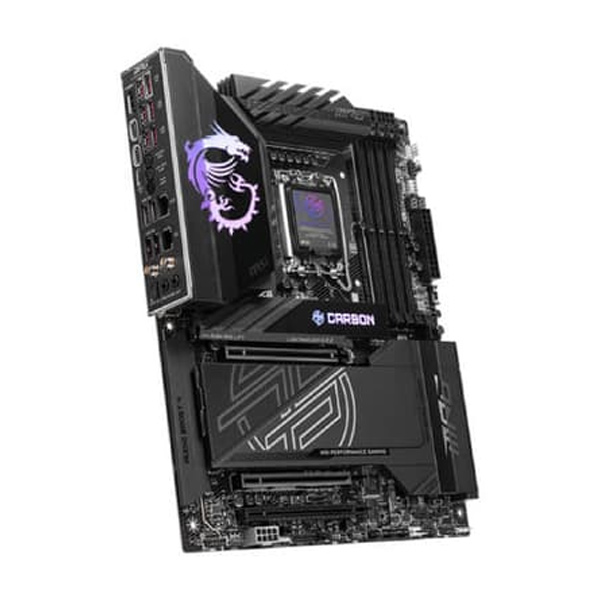

MSI MPG Z890 Carbon WiFi Intel LGA 1851 ATX DDR5 WiFi 7 PCIe 5.0 Gaming Motherboard :
Overview :
The MSI MPG Z890 Carbon WiFi is a premium ATX motherboard designed for gamers and PC enthusiasts seeking cutting-edge performance and advanced connectivity. Built on the Intel Z890 chipset, it supports Intel® Core™ Ultra Series 2 processors via the LGA 1851 socket, offering compatibility with the latest CPUs. With support for DDR5 memory up to 7800 MHz (OC), PCIe 5.0, and Wi-Fi 7, this motherboard ensures robust performance for various computing needs.
Features :
- Supports Intel Core Ultra Series 2 processors (LGA 1851)
- DDR5 memory support up to 7800 MHz (OC), up to 256GB
- Direct 20+1+1+1 Power Design with 110A Smart Power Stages
- 2 x PCIe 5.0 x16 slots for next-gen graphics cards
- 1 x M.2 PCIe 5.0 slot and 4 x M.2 PCIe 4.0 slots with EZ M.2 Clip II
- Wi-Fi 7 and 5G LAN for high-speed networking
- 2 x Thunderbolt 4 ports for 40Gbps data transfer and 8K display support
- Audio Boost 5 with Realtek ALC4080 codec
- Extended Heatsink Design with heat-pipe for enhanced thermal performance
- EZ Debug LED, Smart Button, and Pre-installed I/O Shield for streamlined installation
Specifications :
| Model | MSI MPG Z890 Carbon WiFi |
| CPU Socket | LGA 1851 |
| Chipset | Intel Z890 |
| Form Factor | ATX |
| Memory Support | DDR5, Dual Channel, 4 DIMMs, up to 7800 MHz (OC), Max 256GB |
| Expansion Slots | 2 x PCIe 5.0 x16, 1 x PCIe 4.0 x16 (x4 mode) |
| Storage Interface | 1 x M.2 (PCIe 5.0 x4), 4 x M.2 (PCIe 4.0 x4), 4 x SATA 6Gb/s |

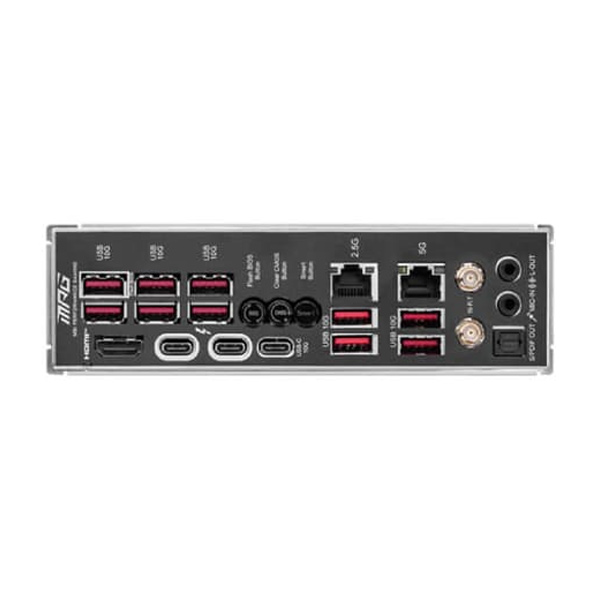

| USB Ports (Rear) | 2 x Thunderbolt 4 (USB-C), 1 x USB 3.2 Gen 2×2 Type-C, 2 x USB 3.2 Gen 2 Type-A, 4 x USB 3.2 Gen 1 Type-A, 2 x USB 2.0 |
| USB Ports (Internal) | 1 x USB 3.2 Gen 2×2 Type-C, 2 x USB 3.2 Gen 1 Headers, 2 x USB 2.0 Headers |
| Networking | Intel Wi-Fi 7, Killer 5G LAN, Bluetooth 5.4 |
| Audio | Realtek ALC4080 with Audio Boost 5 |
| RGB Lighting | Mystic Light with ARGB & RGB headers |
| Power Phases | Direct 20+1+1+1 VRM with 110A Smart Power Stages |
| Cooling Features | Extended Heatsinks, Heat-pipe, M.2 Shield Frozr, Multiple Fan Headers |
| BIOS Features | Click BIOS 5, Flash BIOS Button, EZ Debug LED, Smart Button |
| OS Compatibility | Windows 11 / 10 64-bit |
| Warranty | 3 Years |
