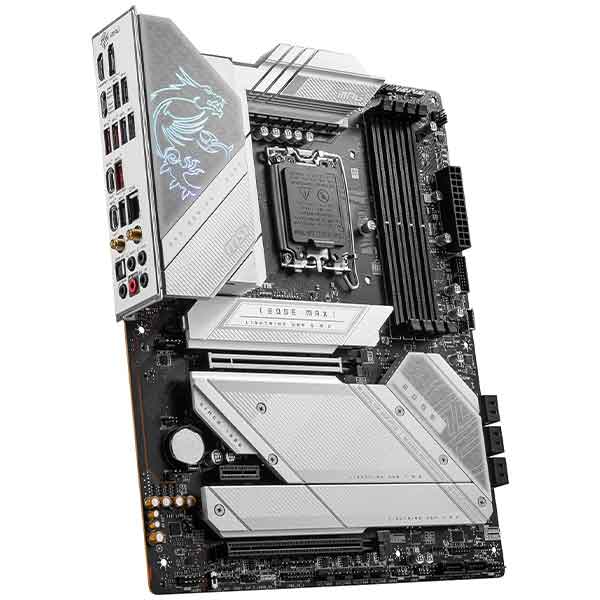

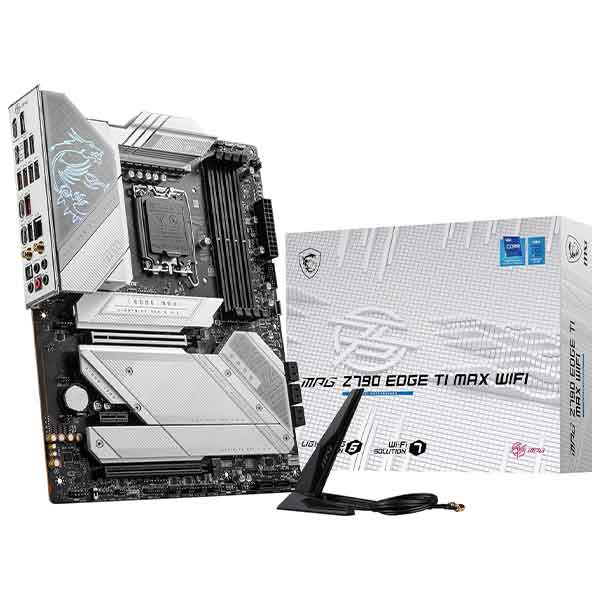

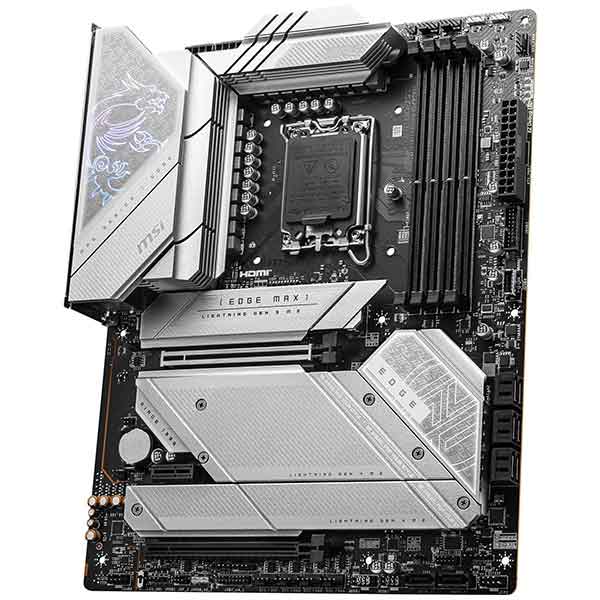

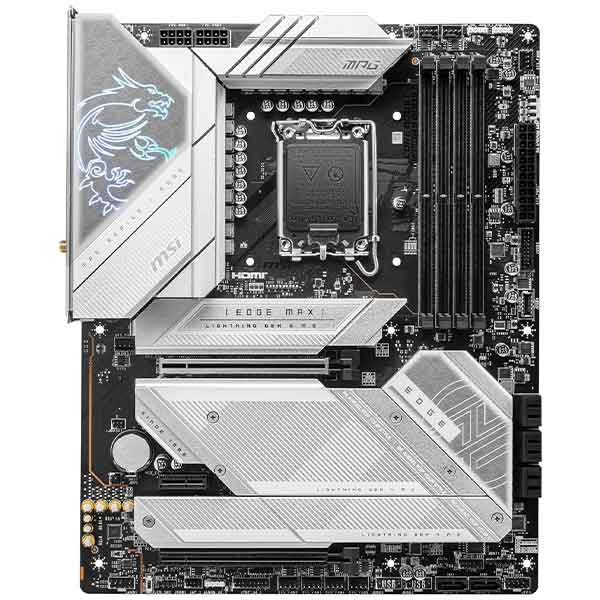

MSI MPG Z790 Edge Ti Max WiFi Intel LGA 1700 ATX DDR5 WiFi 7 PCIe 5.0 Gaming Motherboard :
Overview :
The MSI MPG Z790 Edge Ti Max WiFi is a premium ATX motherboard designed for high-performance gaming and demanding productivity tasks. Featuring support for 13th and 14th Gen Intel Core processors on the LGA 1700 socket, this board combines elegant titanium aesthetics with raw power. Equipped with DDR5 memory support, PCIe 5.0, WiFi 7, and high-speed USB 20G, the MSI MPG Z790 Edge Ti Max WiFi delivers cutting-edge connectivity and lightning-fast data transfers. With a robust VRM power design, extended heatsinks, and 5x M.2 slots, it ensures your system runs cool and stable even under extreme workloads. Perfect for gamers and creators seeking a balance of style, performance, and future-proof features.
Features :
- Supports 13th & 14th Gen Intel Core processors (LGA 1700)
- ATX Form Factor with a sleek titanium silver finish
- DDR5 memory support up to 7800+ MHz (OC), max 192GB
- 16+1+1 Duet Rail VRM design with 90A Smart Power Stage
- PCIe 5.0 x16 for next-gen GPU compatibility
- 5x M.2 slots, including 1x PCIe 5.0 M.2 with M.2 Shield Frozr
- WiFi 7 & 2.5G LAN for ultra-fast networking
- USB 3.2 Gen 2×2 Type-C (20Gbps) for blazing-fast file transfers
- Audio Boost 5 powered by ALC4080 for immersive sound
- ARGB & RGB headers with Mystic Light RGB Sync
- Pre-installed I/O Shield for easier installation and cleaner build
Specifications :
| Model | MSI MPG Z790 Edge Ti Max WiFi |
| CPU Socket | LGA 1700 |
| Chipset | Intel Z790 |
| Form Factor | ATX |
| Memory Support | DDR5, Dual Channel, 4 DIMMs, up to 7800+ MHz (OC), Max 192GB |
| Expansion Slots | 1 x PCIe 5.0 x16, 1 x PCIe 4.0 x16 (x4 mode), 1 x PCIe 3.0 x1 |
| Storage Interface | 5 x M.2 (1x PCIe 5.0, 4x PCIe 4.0/SATA), 6 x SATA 6Gb/s |

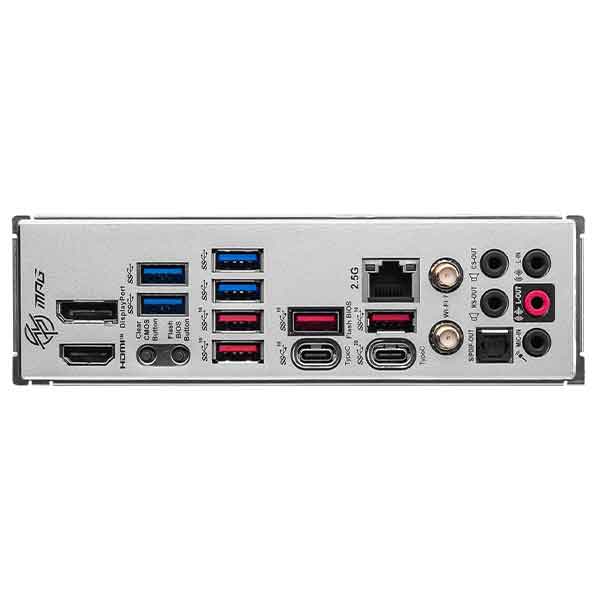

| USB Ports (Rear) | 1 x USB 3.2 Gen 2×2 Type-C, 4 x USB 3.2 Gen 2, 4 x USB 2.0 |
| USB Ports (Internal) | USB 3.2 Gen 2×2 Front Type-C, USB 3.2 Gen 1 Header, USB 2.0 Header |
| Networking | WiFi 7, Intel 2.5G LAN |
| Audio | Realtek ALC4080 with Audio Boost 5 |
| RGB Lighting | Mystic Light with ARGB & RGB headers |
| Power Phases | 16+1+1 Duet Rail VRM, 90A Smart Power Stage |
| Cooling Features | Extended Heatsinks, M.2 Shield Frozr, Pump Fan Header |
| BIOS Features | Click BIOS 5, Flash BIOS Button, EZ Debug LED |
| OS Compatibility | Windows 11 / 10 64-bit |
| Warranty | 3 Years |
