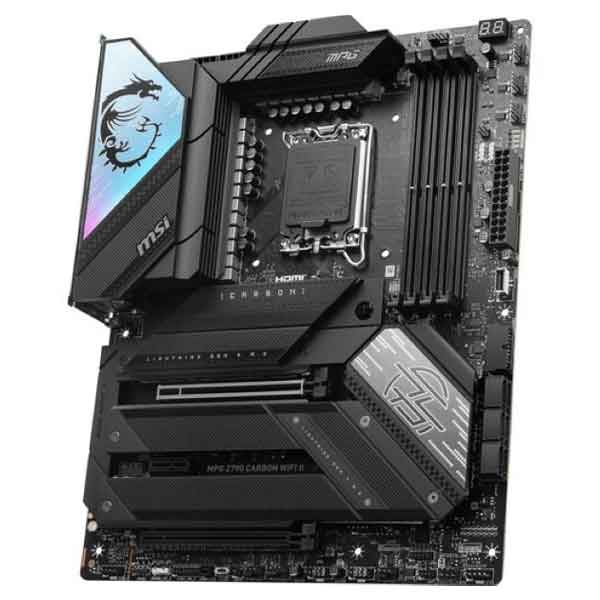

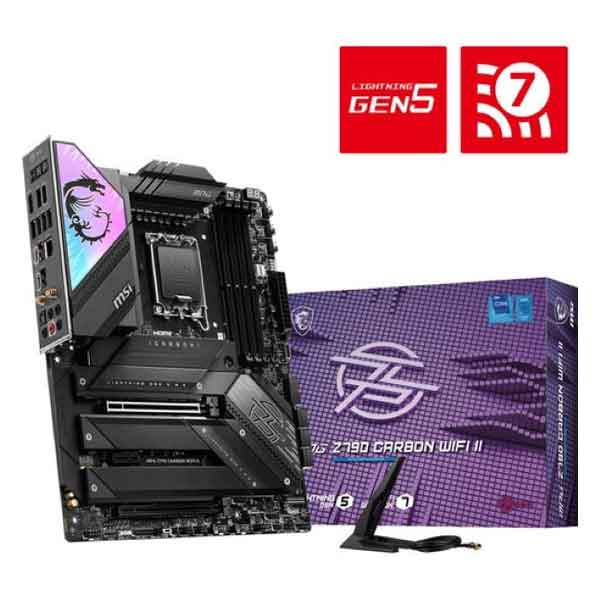

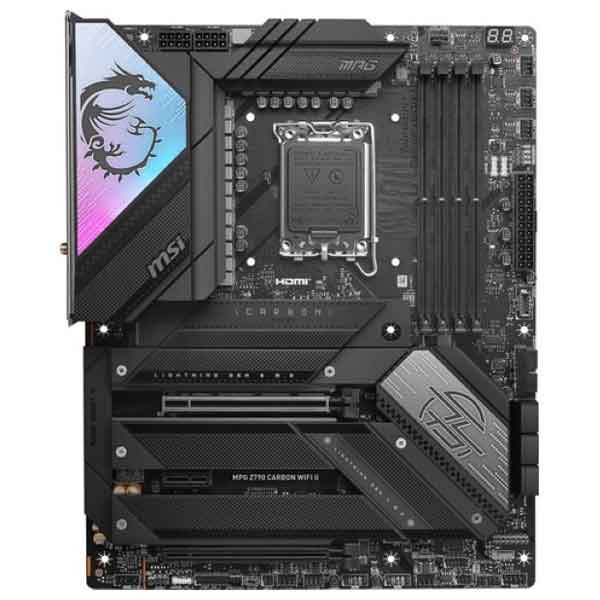

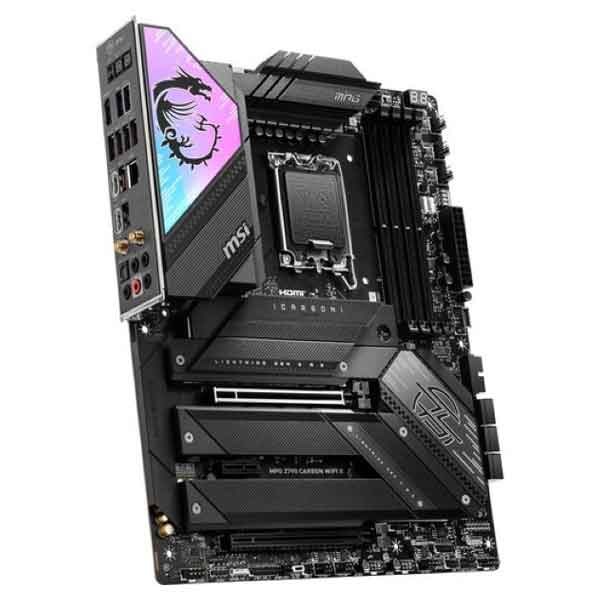

MSI MPG Z790 Carbon WiFi 2 Intel LGA 1700 ATX DDR5 PCIe 5.0 Gaming Motherboard :
Overview :
The MSI MPG Z790 Carbon WiFi 2 is a high-end gaming motherboard engineered for next-gen performance with support for 13th and 14th Gen Intel Core processors. Featuring the latest DDR5 memory support, PCIe 5.0, and Wi-Fi 7, this motherboard delivers a future-ready platform for gamers and creators. With its stylish carbon-themed design, robust 19+1+1 VRM power phase, and premium thermal management, the MSI MPG Z790 Carbon WiFi 2 ensures maximum stability under heavy workloads and intense gaming sessions. Whether you’re building a sleek gaming rig or a powerful workstation, this motherboard offers the perfect balance of aesthetics and functionality.
Features :
- Supports 13th & 14th Gen Intel Core processors (LGA 1700)
- ATX Form Factor with carbon-style aesthetic
- DDR5 Memory up to 7800+ MHz (OC), max 192GB
- 19+1+1 Duet Rail Power System with 105A Smart Power Stage
- PCIe 5.0 x16 slot for next-gen GPUs
- 5x M.2 slots, including 1x PCIe 5.0 (with M.2 Shield Frozr)
- WiFi 7 + 2.5G LAN for ultra-fast networking
- Lightning USB 20G (USB 3.2 Gen 2×2 Type-C)
- Audio Boost 5 with high-quality audio capacitors
- Mystic Light RGB – Full lighting control and sync
- Pre-installed I/O shield for easy installation
Specifications :
| Model | MSI MPG Z790 Carbon WiFi 2 |
| CPU Socket | LGA 1700 |
| Chipset | Intel Z790 |
| Form Factor | ATX |
| Memory Support | DDR5, Dual Channel, 4 DIMMs, Up to 192GB, 7800+ MHz (OC) |
| Expansion Slots | 1 x PCIe 5.0 x16, 1 x PCIe 4.0 x16 (x4), 1 x PCIe 3.0 x1 |
| Storage Interface | 5 x M.2 (1 x PCIe 5.0, 4 x PCIe 4.0/SATA), 6 x SATA 6Gb/s |
| USB Ports | Rear: 1 x USB 3.2 Gen 2×2 Type-C, 7 x USB 3.2 Gen 2/1, 4 x USB 2.0 |
| Networking | Intel Wi-Fi 7, 2.5G LAN |
| Audio | Realtek ALC4080 High Definition Audio |
| RGB Lighting | MSI Mystic Light with ARGB/RGB headers |
| Power Phases | 19+1+1 VRM with 105A Smart Power Stage |
| Cooling Features | Extended Heatsinks, MOSFET thermal pads, M.2 Shield Frozr |
| BIOS Features | Click BIOS 5, Flash BIOS Button, Dual BIOS |
| Internal Connectors | USB 3.2 Gen 2×2 Front Type-C, Fan Headers, RGB Headers |
| OS Compatibility | Windows 11 / 10 64-bit |
| Warranty | 3 Years |
