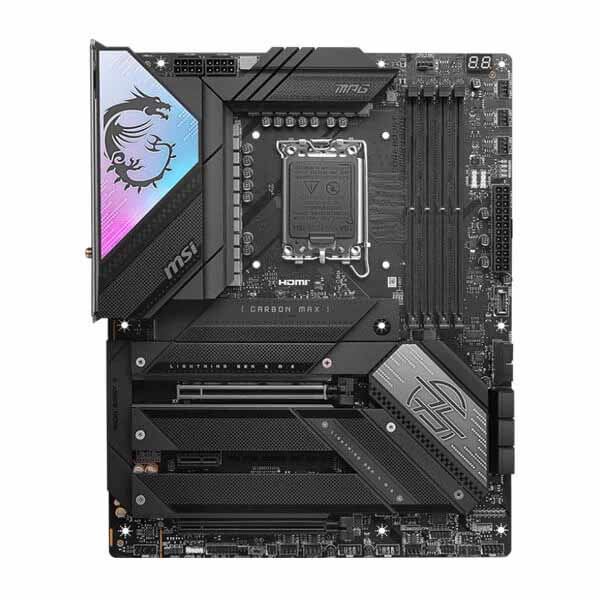

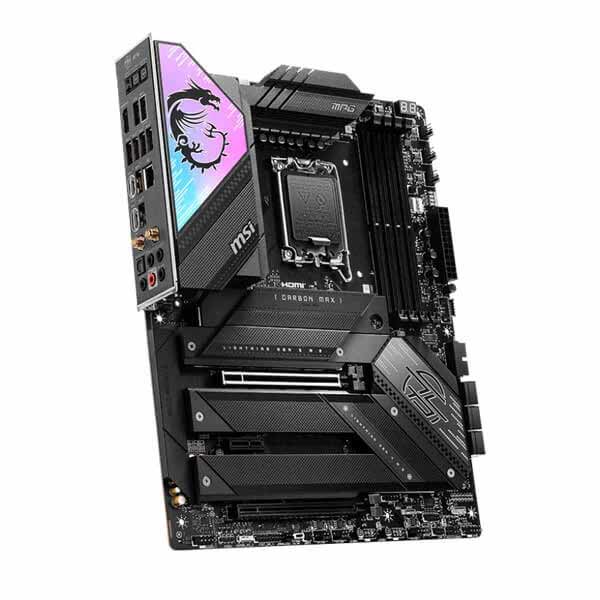

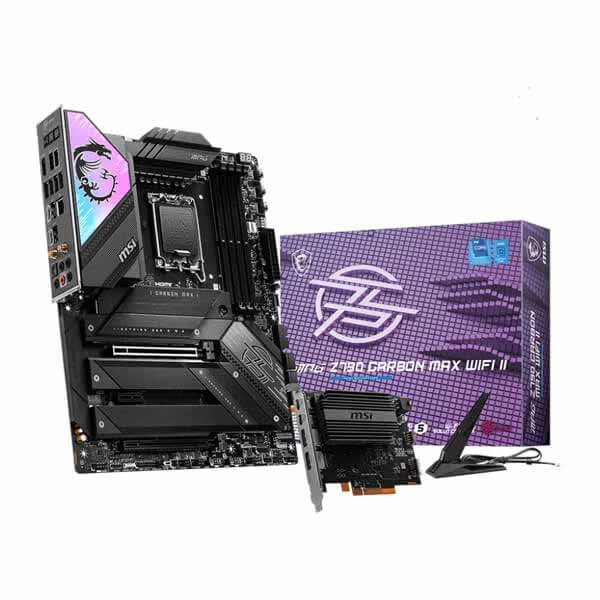

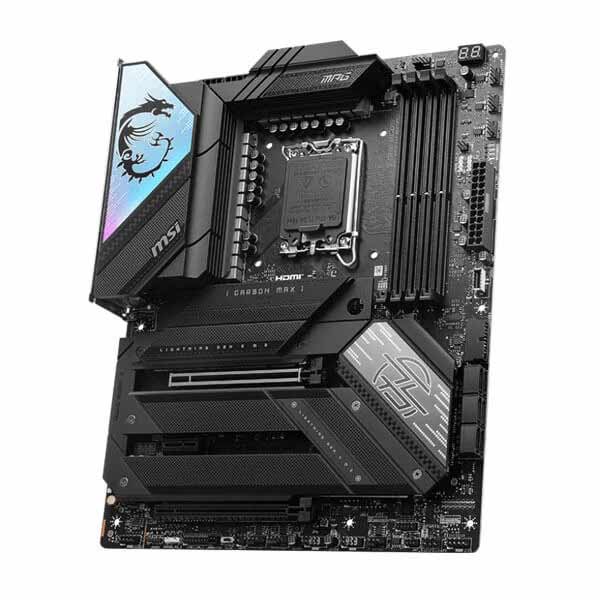

MSI MPG Z790 Carbon Max WiFi 2 Intel LGA 1700 ATX DDR5 WiFi 7 PCIe 5.0 Gaming Motherboard
Overview :
The MSI MPG Z790 Carbon Max WiFi 2 is a premium ATX motherboard designed for gamers and PC enthusiasts seeking top-tier performance and connectivity. Supporting 12th, 13th, and 14th Gen Intel Core processors via the LGA 1700 socket, it offers DDR5 memory support up to 7800+ MHz (OC), PCIe 5.0 for next-generation graphics cards, and Wi-Fi 7 for ultra-fast wireless networking. With a robust 19+1+1 phase VRM power design, advanced thermal solutions, and extensive storage options, this motherboard is engineered to deliver exceptional performance and reliability for high-end gaming and content creation.
Features :
- Supports 12th, 13th & 14th Gen Intel Core processors (LGA 1700)
- DDR5 memory support up to 7800+ MHz (OC), up to 256GB
- 19+1+1 phase VRM power design with 105A Smart Power Stage
- 1 x PCIe 5.0 x16 slot with Steel Armor for next-gen GPUs
- 5 x M.2 slots (1x PCIe 5.0 x4, 4x PCIe 4.0 x4) with M.2 Shield Frozr
- Wi-Fi 7 and 5G LAN for high-speed networking
- USB 3.2 Gen 2×2 Type-C for 20Gbps data transfer
- Audio Boost 5 with Realtek ALC4080 codec
- Mystic Light RGB with ARGB/RGB headers for customization
- Pre-installed I/O Shield and EZ Debug LED for streamlined installation
Specifications :
| Model | MSI MPG Z790 CARBON MAX WIFI II |
| CPU Socket | LGA 1700 |
| Chipset | Intel Z790 |
| Form Factor | ATX |
| Memory Support | DDR5, Dual Channel, 4 DIMMs, up to 7800+ MHz (OC), Max 256GB |
| Expansion Slots | 1 x PCIe 5.0 x16, 1 x PCIe 4.0 x16 (x4 mode), 1 x PCIe 3.0 x1 |
| Storage Interface | 5 x M.2 (1x PCIe 5.0 x4, 4x PCIe 4.0 x4), 6 x SATA 6Gb/s |

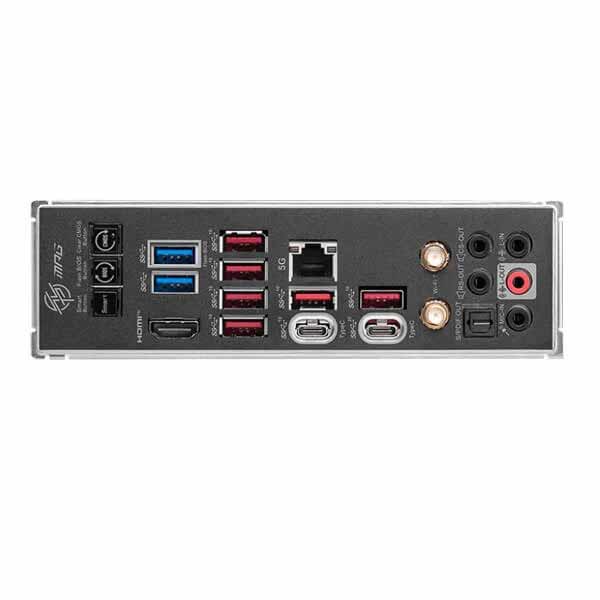

| USB Ports (Rear) | 1 x USB 3.2 Gen 2×2 Type-C, 6 x USB 3.2 Gen 2 Type-A, 2 x USB 3.2 Gen 1 Type-A |
| USB Ports (Internal) | 1 x USB 3.2 Gen 2×2 Type-C, 2 x USB 3.2 Gen 1 Headers, 4 x USB 2.0 Headers |
| Networking | Intel Wi-Fi 7, Realtek 5G LAN |
| Audio | Realtek ALC4080 with Audio Boost 5 |
| RGB Lighting | Mystic Light with ARGB & RGB headers |
| Power Phases | 19+1+1 phase VRM with 105A Smart Power Stage |
| Cooling Features | Extended Heatsinks, Direct Touch Heat-pipe, M.2 Shield Frozr, 7W/mK Thermal Pads |
| BIOS Features | Click BIOS 5, Flash BIOS Button, EZ Debug LED |
| OS Compatibility | Windows 11 / 10 64-bit |
| Warranty | 3 Years |
