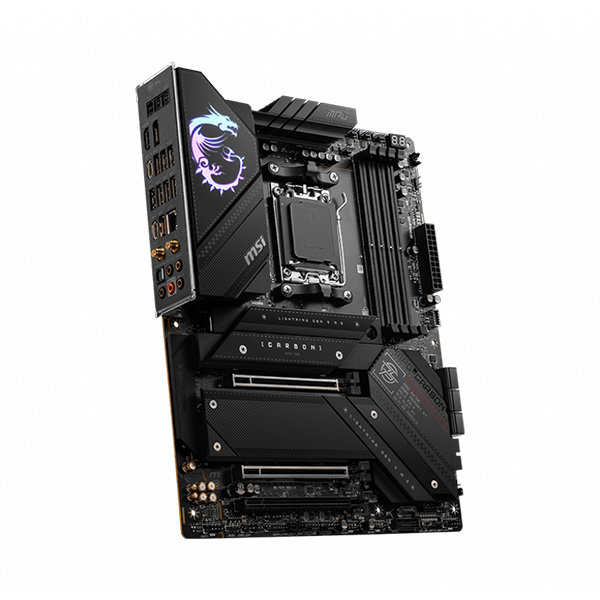

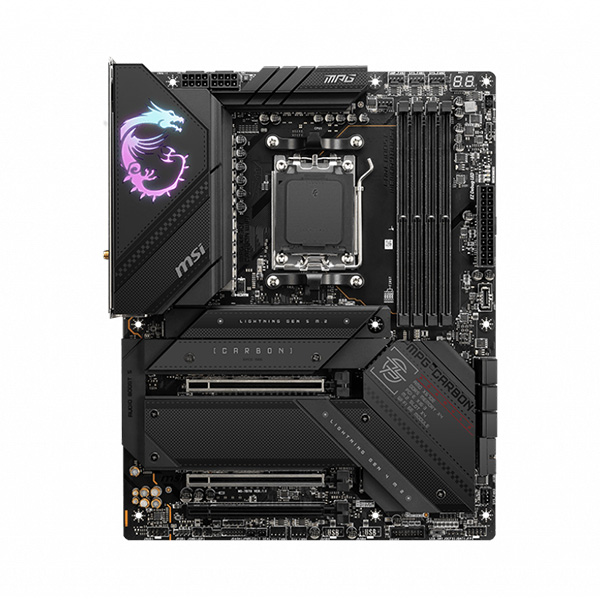

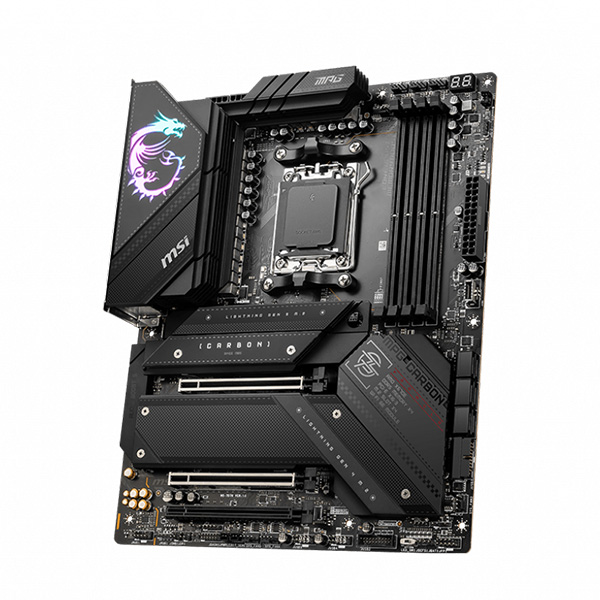

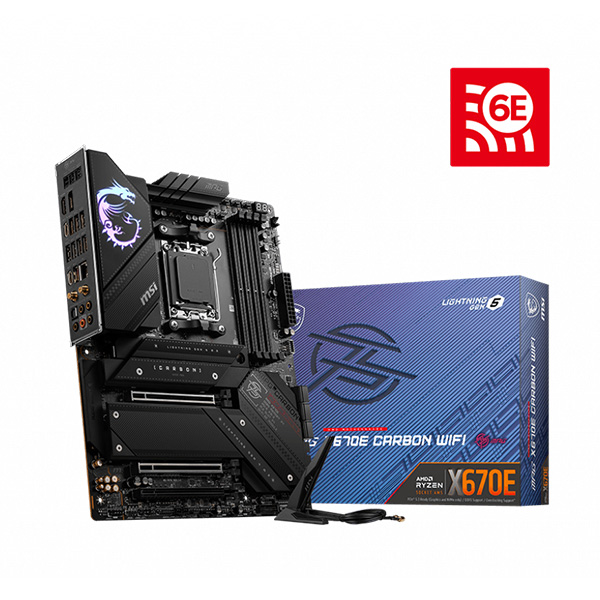

MSI MPG X670E Carbon Wifi DDR5 AM5 Socket Motherboard :
- Supports AMD Ryzen™ 7000 Series Desktop Processors
- Supports DDR5 Memory
- Enhanced Power Design: 18+2+1 Duet Rail Power System, Dual 8-pin CPU power connectors, Core Boost, Memory Boost
- Premium Thermal Solution: Extended Heatsink with Direct Touched Heat-pipe, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and Double-sided M.2 Shield Frozr are built for high performance system and non-stop gaming experience
- High Quality PCB: 8-layer PCB made by 2oz thickened copper and server grade level material
- DIY Friendly Design: Patented Screwless M.2 Shield Frozr, EZ M.2 Clips, Smart Button, Pre-installed I/O Shield, Steel Armor
- Lightning Fast Game experience: PCIe 5.0 slots, Lightning Gen 5 x4 M.2, USB 3.2 Gen 2×2
- 2.5G LAN and Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
- MYSTIC LIGHT: 16.8 million colors / fancy lighting effects controlled in one click. MYSTIC LIGHT SYNC supports latest ARGB Gen2 strips, RGB strips and Ambient devices
- AUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experience
BE AHEAD, POP YOUR STYLE
The MPG series brings out fashionable products by showing extremely unique styles and expressing a conceited attitude towards the challenge of the gaming world. With extraordinary performance and style, the MPG series defines the future of gaming fashion.
- Extended Heatsink
Extended Heatsink enlarges the surface of heat dissipation, ensuring even high-end processors to run in full speed.
- Direct Touch Heat-pipe
Connecting two MOS heatsinks to enlarge the surface of heat dissipation.
- M.2 Shield Frozr
Keeps M.2 SSDs safe while preventing throttling, making them run faster.
- 7W/mK Thermal Pad
High quality 7W/mK MOSFET thermal pads and extra choke thermal pads ensure all cores running in high performance.
- Enhanced M.2 Thermal
Double-sided M.2 Shield Frozr and Enlarged heatsink desing keep PCIe 5.0 M.2 SSDs safe while preventing throttling.
- Enlarged PCH Heatsink
The enlarged heatsink design to reduce dust and noise as well as maintain high heat dissipation efficiency.
OPTIMIZED FOR WATER COOLING
MSI MPG X670E Carbon Wifi Designed to support the most popular All-In-One & customized water cooling solutions on the market. A dedicated water pump PIN header supports up to 3 amp, giving you full control of the water pump speed. A clearly marked ‘keep-out-zone’ allows for easy and safe installation and a perfect fit.
FULLY FAN CONTROL
- CONTROL IN ONE CLICK
MSI MPG X670E Carbon Wifi let you manage speeds and temperatures for all your system and CPU fans in BIOS and software with a simplified graphical interface. You can also set up to 4 temperature targets, which will adjust the fan speeds automatically.
- FROZR AI COOLING
Detecting CPU & GPU temperatures and automatically adjusting fan duty of system fans to a proper value by adopting MSI AI ENGINE.
- AUTO DETECT YOUR FAN
MSI fan headers automatically detect fans running in DC or PWM mode for optimal tuning of fan speeds and silence. Hysteresis also makes your fans spin up fluently to make sure your system stays silent, no matter what.
LIGHTNING GEN 5 PCI-E WITH STEEL ARMOR
SMT PCIE 5.0 SLOT
The advanced SMT(Surface Mount Technology) PCIE slot diminish interference and electrical noise, fully support the PCI-E 5.0 signal.
REINFORCED, HEAVY SOLDERED CONNECTIONS
Secure to the motherboard with extra solder points and support the weight of heavy graphics cards.
FAST AND FUTURE-READY STORAGE
MSI MPG X670E Carbon Wifi support all the latest storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster and have a real advantage over your enemies.
DOUBLE BANDWIDTH WITH LIGHTNING USB 3.2 GEN 2X2 20G
Using USB 3.2 devices has never been faster! MSI MPG X670E Carbon Wifi offer a wide variety of options to connect and boost your USB devices, offering never before seen USB speeds up to 20Gb/s when connecting the Rear USB Type-C.
LATEST DDR5 MEMORY WITH SMT SLOT
A huge step of DDR performance enhancement with the latest DDR5 memory. Combines with dedicated SMT welding process and MSI Memory Boost technology, MSI MPG X670E Carbon Wifi is ready to deliver the world class memory performance.
EASY OVERCLOCKING WITH EXPO PROFILE
MSI MPG X670E Carbon Wifi conducts thorough memory testing with the most popular memory brands under extreme conditions to ensure your system runs stable no matter what. Easy to enable EXPO profile with auto power settings to get the best memory speed and stability.
GLOW YOUR PC
Splash on some color and vibrant RGB lighting effects using MSI Mystic Light with 16.8 million colors and fancy LED effects. MSI Mystic Light provides you complete control of RGB lighting of your PC in one software.
EXTEND YOUR RGB EXPERIENCE WITH EASE
Add more color if you want! Mystic Light Extension pin header provides an intuitive way to control additional RGB strips and other RGB peripherals added to a system, without needing a separate RGB controller.
HIGH-BANDWIDTH AND LOW-LATENCY NETWORK
MSI’s premium network solution provides incredible data transfer speed for demanding users.
|CPU SUPPORT||Supports AMD Ryzen™ 7000 Series Desktop Processors|
|ONBOARD GRAPHICS||1x HDMI™|
Support HDMITM 2.1 FRL, maximum resolution of 4K 120Hz*
1x Display Port
Support DP 1.4, maximum resolution of 4K 60Hz*
1x Type-C DisplayPort
1x Type-C Display port
Supports DisplayPort 1.4 with HBR3, maximum resolution of 4K 120Hz
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
|MEMORY||4x DDR5, Maximum Memory Capacity 128GB|
Memory Support DDR5 6600+(OC)/6400(OC)/ 6200(OC)/6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz
|EXPANSION SLOT||1x PCI-E x16 slot|
Supports x16/x0/x4, x8/x8/x4
PCI_E1 PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 PCIe 5.0 supports up to x8 (From CPU)
PCI_E3 PCIe 4.0 supports up to x4 (From Chipset)
|MULTI-GPU||Supports AMD MULTI-GPU|
|STORAGE||4x M.2 slot|
M.2_1 (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
M.2_2 (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
M.2_3 (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices
M.2_4 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
6x SATA 6G port
|RAID||Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices|
Supports RAID 0, RAID 1, and RAID 10 for M.2 NVMe storage devices
|LAN||Realtek® RTL8125BG 2.5Gbps LAN|
|WIRELESS / BLUETOOTH||AMD Wi-Fi 6E|
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands
Supports 802.11 a/ b/ g/ n/ ac/ axSupports Bluetooth® 5.2*** Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 10 build 21H1 and Windows 11.
** Bluetooth 5.2 will be ready in Windows 10 build 21H1 and Windows 11.
|USB||2x USB 2.0 (Rear)|
4x USB 2.0 (Front)
4x USB 3.2 Gen1 Type A (Front)
6x USB 3.2 Gen2 Type A (Rear)
1x USB 3.2 Gen2 Type C (Rear)
1x USB 3.2 Gen2 Type C (Front)
1x USB 3.2 Gen2x2 Type C (Rear)
|AUDIO||Realtek® ALC4080 Codec|
7.1-Channel High Definition Audio
Supports S/PDIF output
Supports up to 32-Bit/384 kHz playback on front panel
|INTERNAL I/O||1x Power Connector(ATX_PWR)|
2x Power Connector(CPU_PWR)
1x CPU Fan
1x Pump Fan
5x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Thermal Sensor connectors(T_SEN)
1x Tuning Controller connector(JDASH)
2x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
2x USB 2.0
4x USB 3.2 Gen1 Type A
6x USB 3.2 Gen2 Type A
1x USB 3.2 Gen2 Type C
|LED FEATURE||1x EZ LED Control switch|
4x EZ Debug LED
1x 2-Digit Debug Code LED

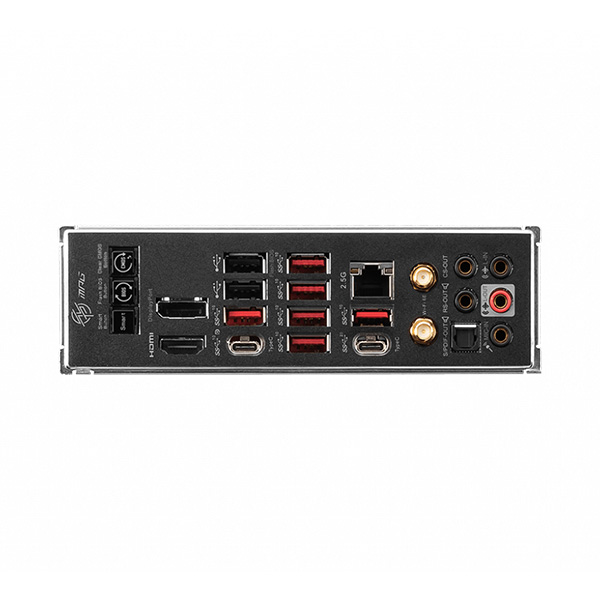

|BACK PANEL PORTS|
|OPERATING SYSTEM||Support for Windows® 11 64-bit, Windows® 10 64-bit|
