MSI MPG B850 Edge Ti WiFi DDR5 AMD AM5 ATX WiFi 7 PCIe 5.0 Gaming Motherboard-Supports Ryzen 7000 / 8000 / 9000 Series Processors :
Overview :

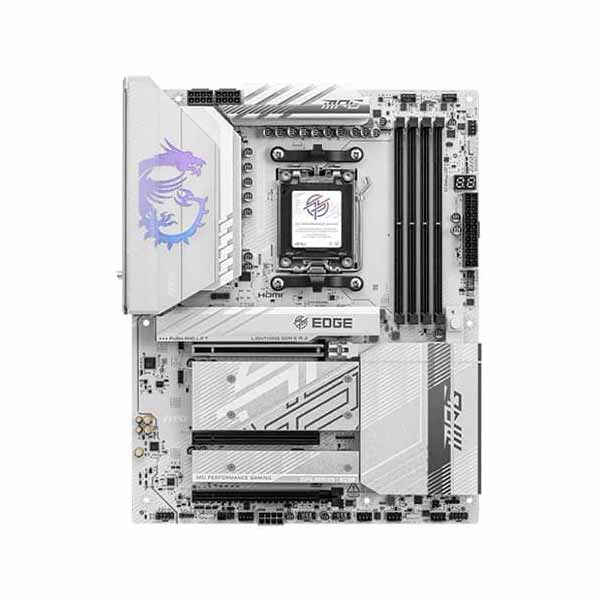

The MSI MPG B850 Edge Ti WiFi is a premium ATX motherboard built on AMD’s B850 chipset for AM5 processors. MSI MPG B850 Edge Ti WiFi With gamer-focused features and next-gen support, MSI MPG B850 Edge Ti WiFi includes PCIe 5.0, Gen5 + dual Gen4 M.2, DDR5 overclocking to 8600+ MT/s, Wi‑Fi 7/Bluetooth 5.4, 5 Gb LAN, and a high-end 14+2+1 VRM with superior thermal design—perfect for enthusiast gaming and high-performance builds.
Features :
- Supports Ryzen 7000/8000/9000 series CPUs via AM5 socket
- DDR5 memory support up to 8600+ MT/s (OC), maximum 256 GB
- 14+2+1 Duet Rail VRM with dual 8-pin EPS power and Core Boost
- PCIe 5.0 x16 Steel Armor slot for next-gen GPU support
- Triple M.2 slots: 1× Gen5 x4 + 2× Gen4 x4 with Frozr Shield heatsinks
- Integrated Wi-Fi 7 and Bluetooth 5.4 for fast wireless
- Realtek 5 Gb Ethernet for ultra-high-speed wired networking
- USB 3.2 Gen2×2 Type-C, USB-A Gen2, Gen1, and USB 2.0 ports
- HDMI 2.1 and DisplayPort 1.4 outputs for integrated graphics
- Realtek ALC4080 7.1-channel HD Audio with Audio Boost
- Extended heatsinks, thermal pads, and 6-layer PCB for excellent cooling
- EZ DIY features: M.2 Clips II, Debug LEDs, BIOS Flash Button, Clear CMOS
- Multiple PWM and water-pump fan headers for custom cooling setups
- Includes reinforced PCIe/SATA brackets and MSI Mystic Light
Specifications :
| Model | MSI MPG B850 Edge Ti WiFi |
| Form Factor | ATX (305 × 244 mm) |
| Socket / Chipset | AM5 / AMD B850 |
| CPU Support | Ryzen 7000 / 8000 / 9000 Series |
| Memory Support | 4× DDR5 DIMM, up to 8600+ MT/s (OC), 256 GB max |
| VRM Design | 14+2+1 Duet Rail with Core Boost and dual 8-pin EPS |
| PCIe Slots | 1× PCIe 5.0 x16, 1× PCIe 4.0 x16, 2× PCIe 3.0 x1 |
| M.2 Slots | 1× Gen5 x4 + 2× Gen4 x4 (heat-shielded) |
| SATA Ports | 4× SATA III 6 Gb/s (RAID 0/1/5/10) |
| LAN | Realtek 5 Gigabit Ethernet |
| Wireless | Wi‑Fi 7 and Bluetooth 5.4 via onboard module |

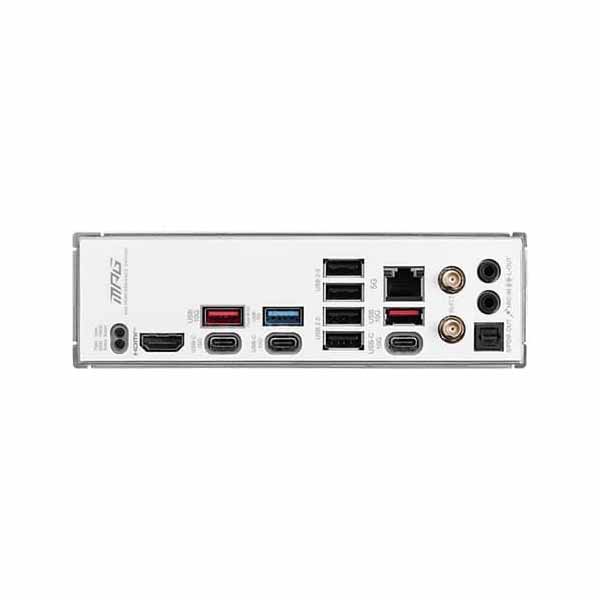

| Rear USB Ports | 1× USB-C 20 Gbps, 2× USB-A 10 Gbps, 2× USB-A 5 Gbps, 2× USB 2.0 |
| Front USB Headers | 1× USB-C 20 Gbps, 2× USB-A 10 Gbps, 2× USB 2.0 |
| Display Outputs | HDMI 2.1, DisplayPort 1.4 |
| Audio Codec | Realtek ALC4080, 7.1 HD Audio with Audio Boost |
| Cooling & Build | Heatsinks, 7 W/mK thermal pads, 6-layer PCB |
| Fan/Pump Headers | Multiple PWM + water-pump connectors |
| DIY Features | EZ M.2 Clips II, Debug LEDs, BIOS Flash Button, Clear CMOS |
| Lighting | MSI Mystic Light support (addressable ARGB headers) |
| Warranty | 3 Years |
