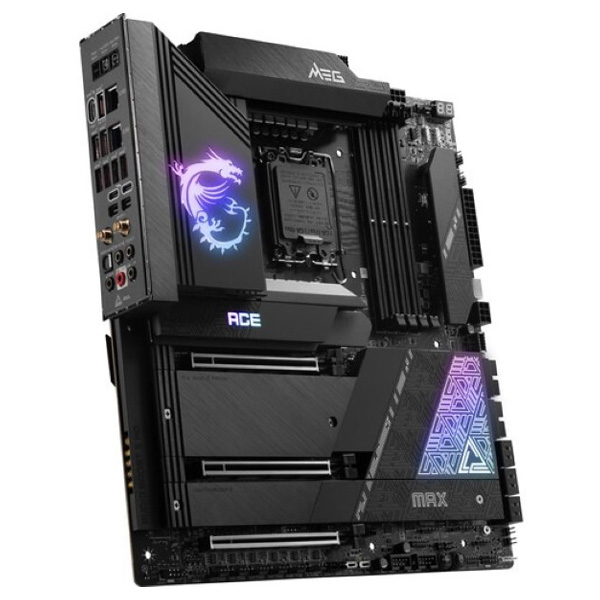

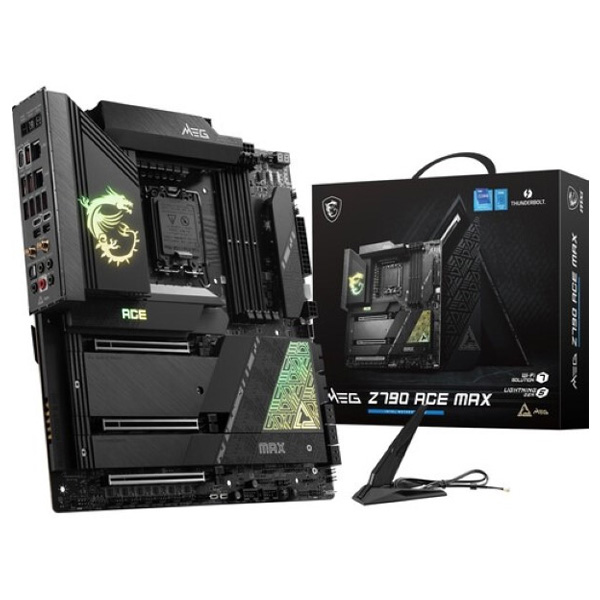

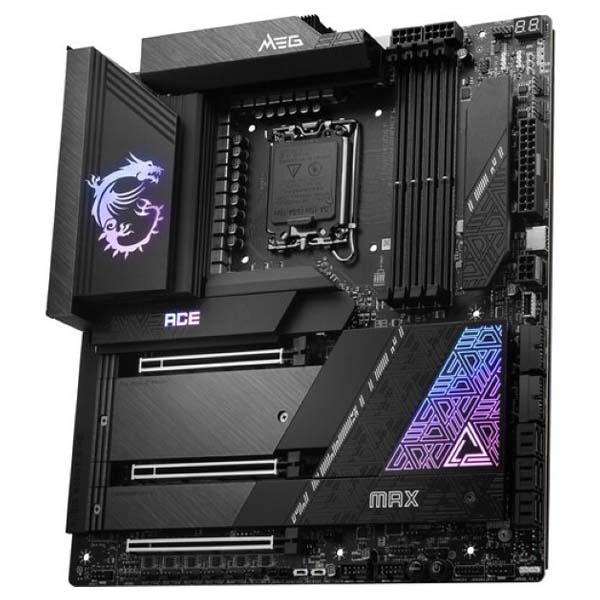

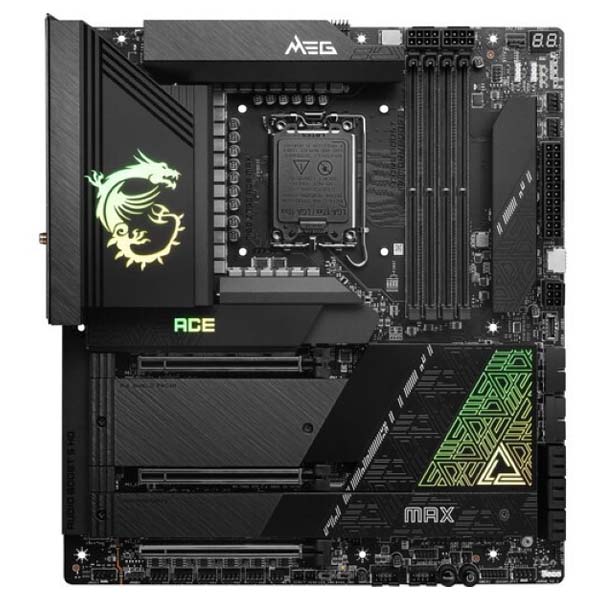

MSI MEG Z790 ACE MAX Intel LGA 1700 E-ATX DDR5 WiFi 7 PCIe 5.0 Gaming Motherboard :
Overview :
The MSI MEG Z790 ACE MAX is a premium Intel LGA 1700 gaming motherboard built for elite performance and future-ready gaming setups. Designed for enthusiasts and pro gamers, this DDR5 motherboard with PCIe 5.0 support offers next-gen speeds and stability. Featuring Wi-Fi 7, Thunderbolt 4, and 5x M.2 slots, it provides unmatched connectivity and expandability. Whether you’re building a high-end streaming PC or an overclocked gaming rig, the MSI MEG Z790 ACE MAX ensures ultimate power, precision, and control. Perfect for Intel 14th Gen and 13th Gen CPUs, it delivers a robust E-ATX form factor with a bold, black-gold aesthetic.
Features :
- Supports 13th & 14th Gen Intel Core processors (LGA 1700)
- E-ATX Form Factor – More space for expansion and better airflow
- DDR5 Memory Support – Up to 7800+ MHz (OC)
- 22+1+2 Phase VRM Power Design – Premium grade with 105A Smart Power Stage
- WiFi 7 & 2.5G LAN – Ultra-fast wireless and wired connectivity
- PCIe 5.0 x16 Slots – Next-gen graphics and NVMe SSD support
- 5x M.2 Slots – Lightning Gen 5 support with M.2 Shield Frozr
- Dual Thunderbolt 4 Ports – High-speed external connectivity
- Audio Boost 5 HD – Supreme sound with ALC4082 + ESS SABRE DAC
- Pre-installed I/O Shield – For a cleaner and easier installation
- ARGB & RGB Headers – Full Mystic Light Sync support
Specifications :
| Model | MSI MEG Z790 ACE MAX |
| CPU Socket | LGA 1700 |
| Chipset | Intel Z790 |
| Form Factor | E-ATX (Extended ATX) |
| Memory Support | DDR5, Dual Channel, up to 7800+ MHz (OC), Max 192GB |
| Expansion Slots | 2 x PCIe 5.0 x16 (Steel Armor), 1 x PCIe 4.0 x1 |
| Storage Interface | 5 x M.2 (1x PCIe 5.0, 4x PCIe 4.0/SATA), 6 x SATA 6Gb/s |

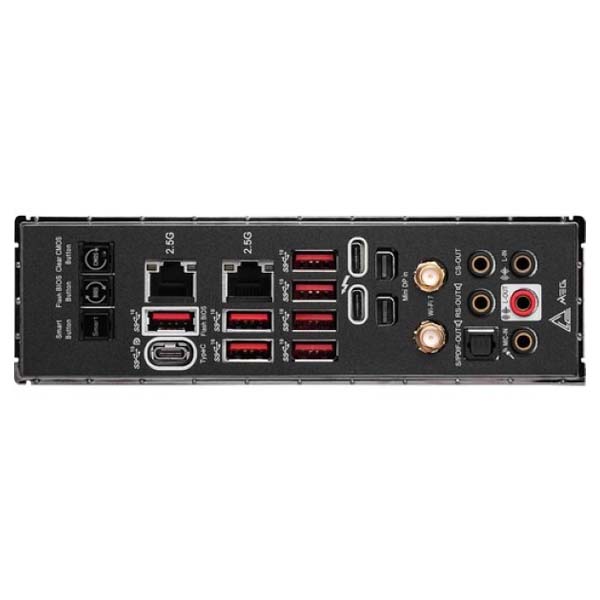

| USB Ports | Rear: 2 x Thunderbolt 4 (USB-C), 10 x USB 3.2, Front: USB 3.2 Gen 2×2 Type-C |
| Networking | Intel Wi-Fi 7, 10G Super LAN + 2.5G LAN |
| Audio | Audio Boost 5 HD (ALC4082 + ESS SABRE DAC) |
| RGB Lighting | MSI Mystic Light with RGB/ARGB headers |
| Power Phases | 24+1+2 VRM with 105A Smart Power Stage |
| Cooling Features | Extended Heatsinks, M.2 Shield Frozr, MOSFET Thermal Pads |
| BIOS Features | Dual BIOS, Click BIOS 5, Flash BIOS Button |
| OS Compatibility | Windows 11 / 10 64-bit |
| Warranty | 3 Years |
