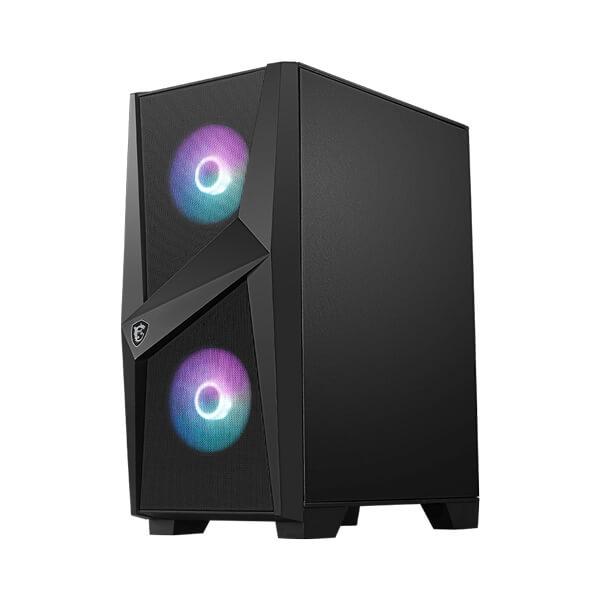

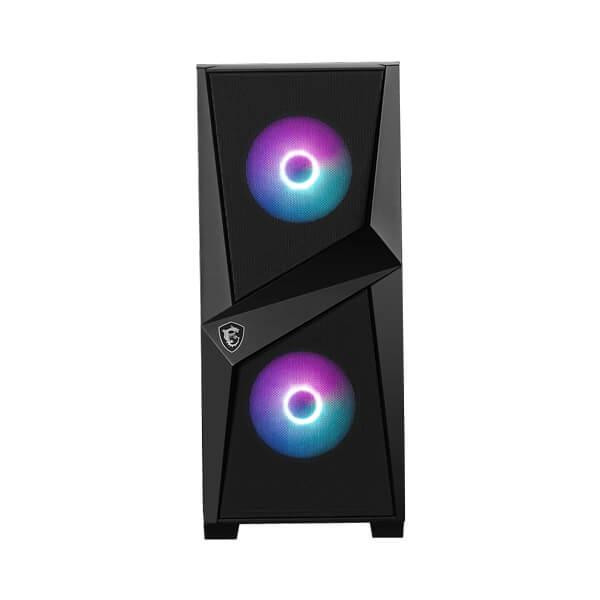

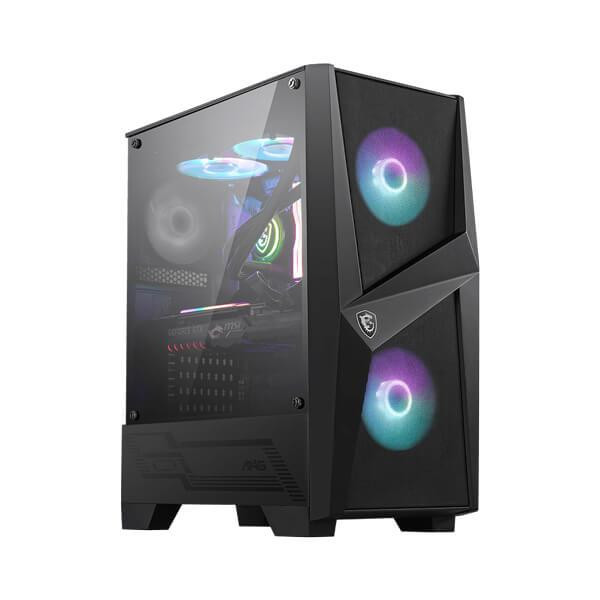

MSI MAG FORGE 100R ARGB ATX MID TOWER Cabinet with Tempered Glass
Two 120mm fans aligned vertically on the front to draw in air evenly across the entire face of the enclosure. That will contribute to positive air pressure within the case, the rising warm air will always be exhausted with the rear and top airflow from the MAG Forge 100 Series.
READY FOR OPTIMIZED MOTHERBOARD
Designed with multiple easy installation mechanisms and accommodated an up to ATX motherboard to provide an unhindered building experience.
ATX / Micro ATX / Mini-ITX
BUILT FOR A PRIME FAN AND RADIATOR CAPACITY
Front: Up to 3 x 120 mm or 2 x 140 mm
Top: Up to 2 x 120 mm or 2 x 140 mm
Rear: 1 x 120 mm
Front: 2 x 120 mm addressable RGB LED Fan included
Rear: 1 x 120mm System Fan included
Top – support 120 / 240 mm radiator
Front – support 120 / 240 mm radiator
Rear – support 120 radiator

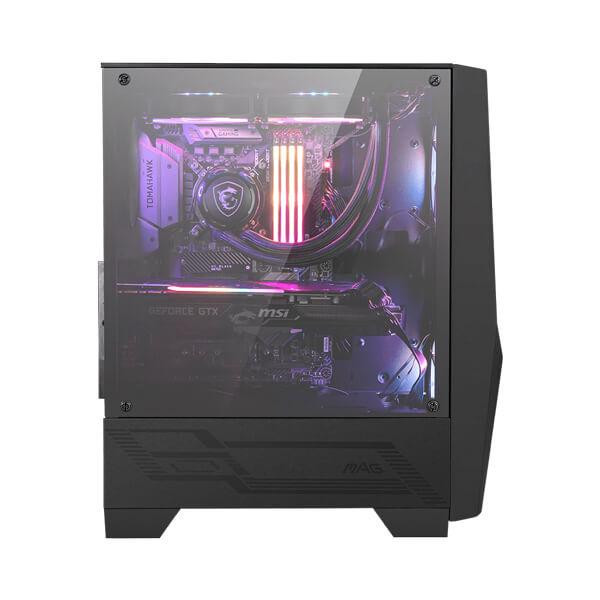

TOOL-LESS TEMPERED GLASS
The light gray tone of 4mm tempered glass side panel is ideal for displaying RGB lighting effects and provides clear internal component construction.
The Forge 100 Series’ thoughtful case design allows users to install/remove the tempered glass easily. Simply place the tempered glass on the stump of the case before installing it for a safe and simple process.
Customizing Addressable RGB LEDs integrated in the front, top & rear cover with a dedicated control button; or with MSI Mystic Light software, MAG Forge 100R can cast millions of colors and effects that can be synchronized with a vast ecosystem of components to augment your build.
1 to 6 ARGB LED Control Board
User can intuitively control & switch 9 lighting effects through the LED switch button.
LED Switch Button
Keep pressing the LED button for three seconds, and then users can control the lighting effects via syncing with the motherboard by MSI mystic light app.
|PRODUCT NAME||MAG Forge 100R|
|I/O PORTS||2 x USB 3.2 Gen1 Type-A / 1 x HD Audio / 1 x Mic|
|DRIVER BAYS||2 x 3.5” (compatible with 2.5”) + 3 x 2.5”|
|CASE EXPANSION SLOTS||7|
|MAXIMUM GPU LENGTH||330 mm|
|MAXIMUM CPU COOLER LENGTH||160 mm|
|POWER SUPPLY||Standard ATX 160 mm, max to 200 mm (without 3.5” HDD case installed)|
|COOLING LAYOUT||Front: Up to 3 x 120 mm / 2 x 140 mm|
|Top: Up to 2 x 120 mm / 2 x 140 mm|
|Rear: Up to 1 x 120 mm|
|PRE-INSTALL FAN||Front: 2 x 120 mm addressable RGB LED Fan included|
|Rear: 1 x 120 mm System Fan included|
|RADIATOR LAYOUT||Front: Up to 240 mm|
|Top: Up to 240 mm|
|Rear: Up to 120 mm|
|SUPPORT MB FORM FACTOR||ATX / mATX / Mini-ITX|
|DIMENSION||421(D) x 210(W) x 499(H) mm|
|17.05(D) x 8.27(W) x 19.65(H) inch|
