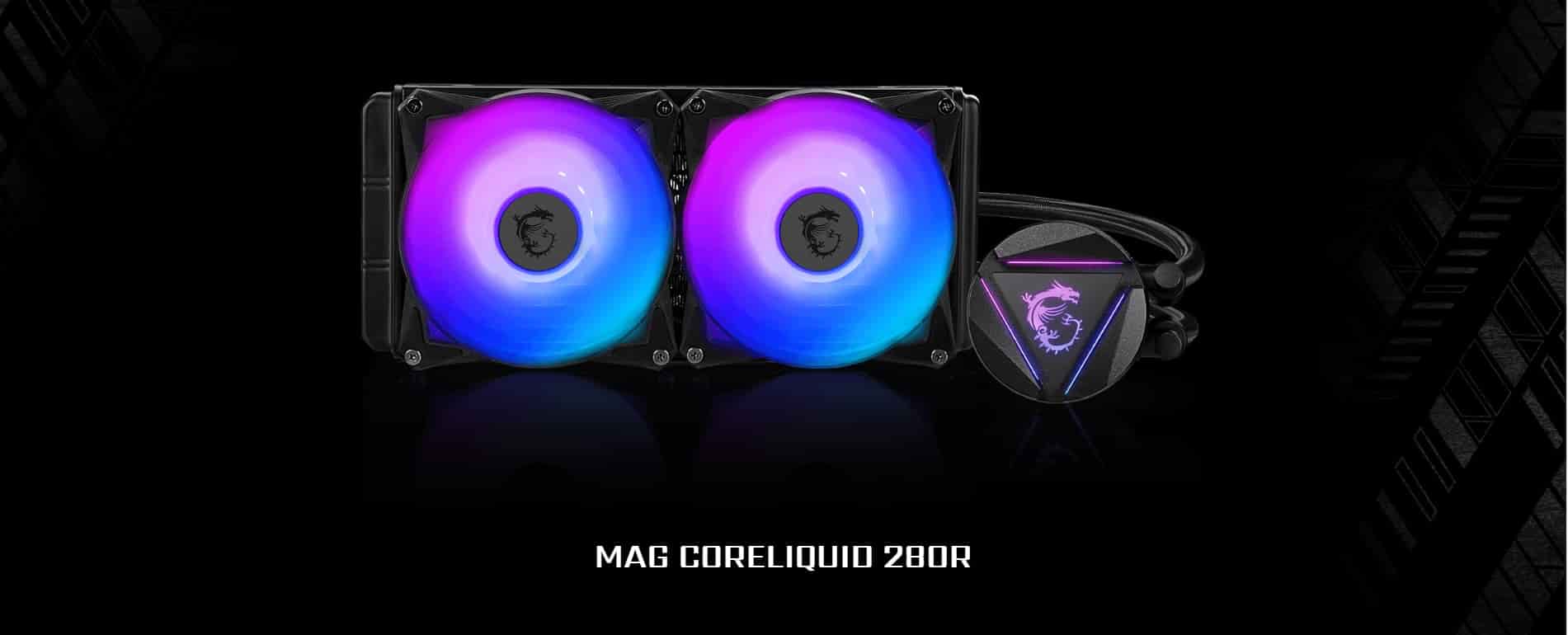

MSI MAG CORELIQUID 280R ARGB 280mm CPU Liquid Cooler :
Features:
- Mount the cold plate at any orientation, turn the water blockhead up to 270 degrees
- The pump has been integrated into the radiator for sound dampening and noise reduction
- Constructed with three layers of netted plastic tubing and a reinforced mesh exterior
- A split liquid pathway through the radiator rapidly dissipates heat. Cooled liquid is then pumped back into the loop
- Compatible Sockets & CPU: Intel Socket LGA 1150, 1151, 1155, 1156, LGA1200, LGA1366, LGA2011, LGA2011-3, LGA2066 / AMD Socket AM5, AM4, FM2+, FM2, FM1, AM3+, AM3, AM2+, AM2
Overview:
CONQUER THE BATTLEFIELD
The MAG series was born through rigorous quality testing and designed to be a symbol of sturdiness and durability. Focused on providing the best user experience, the MAG series has a simple installation process coupled with a friendly user interface making it the best choice for entry level gamers.
The MAG series
The newly introduced MSI MAG Coreliquid 280R ARGB 280mm CPU Liquid Cooler has everything you’re looking for in a liquid cooler, ranging from quality materials that provide reliable durability to heat dissipation technologies that are extremely effective. Users can even enjoy perks like ARGB lighting and a 270-degree rotating blockhead that is simple to use. On top of that, the blockhead boasts a unique irregular aesthetic that is both stylish and artistic. Every single component of the MSI MAG Coreliquid 280R ARGB 280mm CPU Liquid Cooler is designed with the end goal in mind: to provide effective cooling without any compromise.
ROTATABLE BLOCKHEAD
Mount the cold plate at any orientation, turn the blockhead up to 270 degrees, and keep it upright.
RADIATOR PUMP DESIGN
The pump has been integrated into the radiator for sound dampening and noise reduction. Additionally, placing the pump into the radiator also increases the pump’s life expectancy by moving it away from the heat source.
PUMP MOTOR RESONANCE ELIMINATION
A durable three phase motor at the core of the pump generates minimal vibrations for long-lasting operation.
HIGH THERMAL DISSIPATION
A split pathway through the radiator rapidly dissipates heat, cooled liquid is then pumped back into the loop.
EVAPORATION PROOF TUBING
MSI MAG Coreliquid 280R ARGB 280mm CPU Liquid Cooler is Constructed with three layers of netted plastic tubing and a reinforced mesh exterior.
MORE SILENCE THAN EXPECTED
MSI MAG Coreliquid 280R ARGB 280mm CPU Liquid Cooler’s noise level is significantly lower than that of competitor’s by 14%.
EXTENSIVE COMPATIBILITY
Robust yet built for flexibility, MSI MAG Coreliquid 280R ARGB 280mm CPU Liquid Cooler has been designed with a secure installation bundle with compatibility on a number of Intel and AMD motherboards.
Specifications:
| Model | MSI MAG Coreliquid 280R |
| RADIATOR DIMENSIONS (WXDXH) | 312 x 140 x 27mm / 12.28 x 5.51 x 1.06 inches |
| RADIATOR MATERIAL | Aluminum |
| NUMBER OF FANS | 2 |
| FAN DIMENSIONS (WXDXH) | 140 x 140 x 25mm / 5.51 x 5.51 x 0.98 inches |
| FAN AIR FLOW | 84.36 CFM |
| FAN BEARING | Two Ball Bearing |
| FAN RATED CURRENT | 0.19 A |
| FAN POWER CONSUMPTION | 2.28 W |
| PWM MODE | Yes |
| CABLE LENGTH (PWM CABLE) | 550 / 350mm; 21.65 / 13.78 inches |
| FAN LIGHTING | ARGB |
| PUMP POWER CONSUMPTION | 4.08W |
| PUMP SPEED | 4200±10%RPM |
| BLOCK DIMENSIONS (WXDXH) | 80.57x 66.82 x 48.58mm / 3.17 x 2.63 x 1.91 inches |
| INTEL SOCKET SUPPORT | LGA 1150/1151/1155/1156/1200 LGA 1366/2011/2011-3/2066 |
| AMD SOCKET SUPPORT | AM5/AM4/FM2+/FM2/FM1/AM3+/AM3/AM2+/AM2 |
| ACCESSORIES | 1 to 2 Fan PWM cable x 1 PSU Molex 4-Pin to 4-Pin(2 Pin Wired) Fan cable x 1 |
| Warranty | 3 Years |
