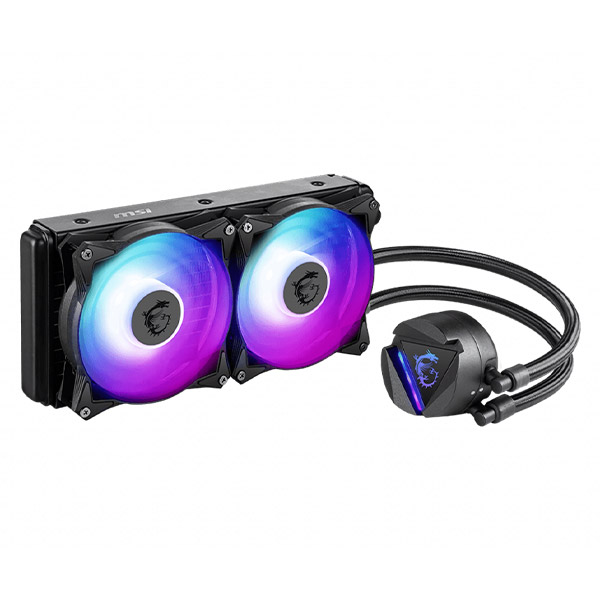

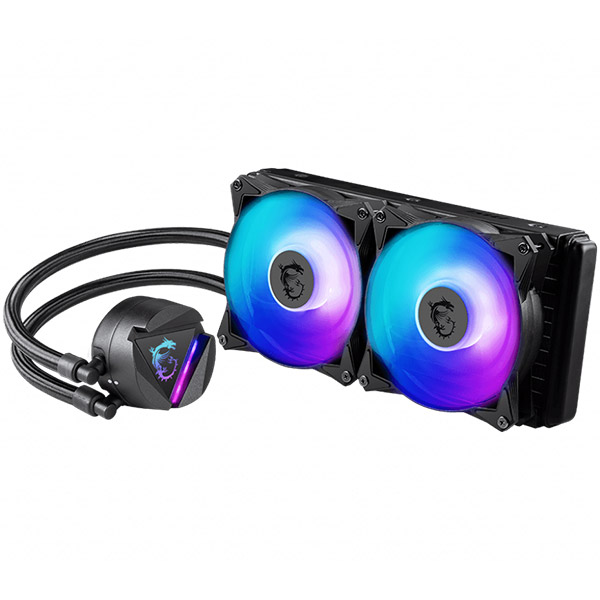

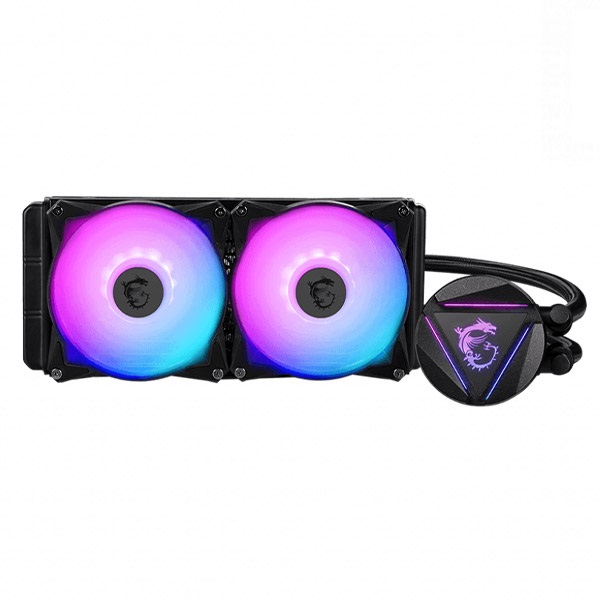

MSI MAG Coreliquid 240R V2 ARGB 240mm CPU Liquid Cooler
Conquer the Battlefield
The MSI MAG Coreliquid 240R V2 was born through rigorous quality testing and designed to be a symbol of sturdiness and durability. Focused on providing the best user experience, the MSI MAG Coreliquid 240R V2 series has a simple installation process coupled with a friendly user interface making it the best choice for entry level gamers.
MAG CORELIQUID SERIES
The newly introduced MSI MAG Coreliquid 240R V2 has everything you’re looking for in a liquid cooler, ranging from quality materials that provide reliable durability to heat dissipation technologies that are extremely effective. Users can even enjoy perks like ARGB lighting and a 270-degree rotating blockhead that is simple to use. On top of that, the blockhead boasts a unique irregular aesthetic that is both stylish and artistic. Every single component of the MSI MAG Coreliquid 240R V2 is designed with the end goal in mind: to provide effective cooling without any compromise.

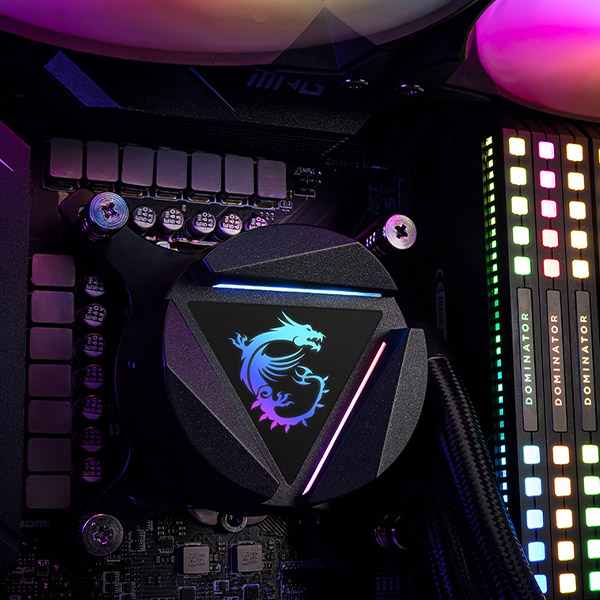

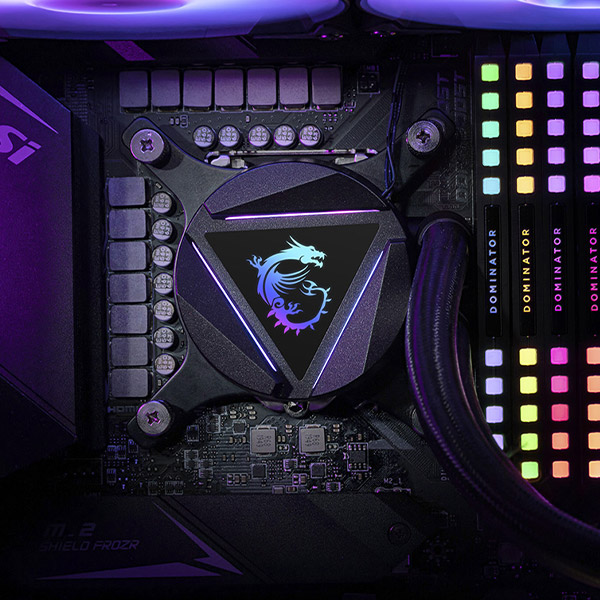

Mount the cold plate at any orientation, turn the blockhead up to 270 degrees, and keep it upright.
RADIATOR PUMP DESIGN
The pump has been integrated into the radiator for sound dampening and noise reduction. Additionally, placing the pump into the radiator also increases the pump’s life expectancy by moving it away from the heat source.
Pump Motor Resonance Elimination
A durable three phase motor at the core of the pump generates minimal vibrations for long-lasting operation.
High Thermal Dissipation
A split pathway through the radiator rapidly dissipates heat, cooled liquid is then pumped back into the loop.
Evaporation Proof Tubing
Constructed with three layers of netted plastic tubing and a reinforced mesh exterior.
DIY 2.0 – INTEGRATING WITH THE SYSTEM ENVIRONMENT
Connect and synchronize with MSI coolers and cases with strategically positioned pin-header locations including a dedicated pump-fan header.
MORE SILENCE THAN EXPECTED
MSI MAG Coreliquid 240R V2’s noise level is significantly lower than that of competitor’s by 10%.

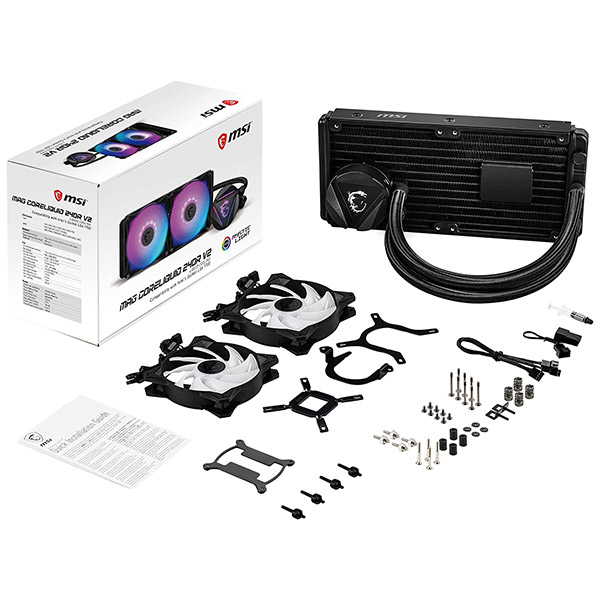

Robust yet built for flexibility, MSI MAG Coreliquid 240R V2 has been designed with a secure installation bundle with compatibility on a number of Intel and AMD motherboards.
|RADIATOR DIMENSIONS (WXDXH)||274 x 120 x 27mm / 10.79 x 4.7 x 1.06 inches|
|NUMBER OF FANS||2|
|FAN DIMENSIONS (WXDXH)||120 x 120 x 25mm / 4.7 x 4.7 x 0.98 inches|
|FAN SPEED||500 ~ 2000 RPM|
|FAN AIR FLOW||21.63 ~ 78.73 CFM|
|FAN NOISE LEVEL||14.3 ~ 34.3 dBA|
|FAN BEARING||Two Ball Bearing|
|FAN RATED CURRENT||0.15 A|
|FAN POWER CONSUMPTION||1.8 W|
|CABLE LENGTH (PWM CABLE)||550 / 350mm; 21.65 / 13.78 inches|
|PUMP POWER CONSUMPTION||4.08W|
|PUMP SPEED||4200 ±10%RPM|
|BLOCK DIMENSIONS (WXDXH)||80.57x 66.82 x 48.58mm / 3.17 x 2.63 x 1.91 inches|
|INTEL SOCKET SUPPORT||LGA 1150/1151/1155/1156/1200/1700|
|AMD SOCKET SUPPORT||AM5/AM4/FM2+/FM2/FM1/AM3+/AM3/AM2+/AM2|
