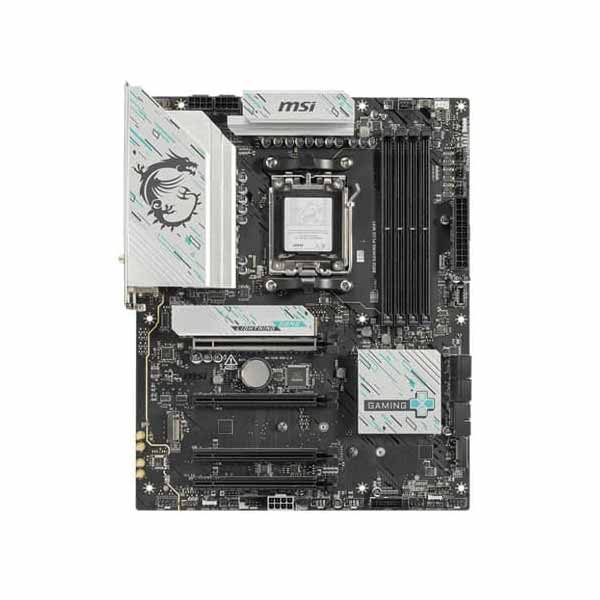

MSI B850 Gaming Plus WiFi DDR5 AMD AM5 ATX WiFi 7 PCIe 5.0 Gaming Motherboard :
Overview :
The MSI B850 Gaming Plus WiFi is a high-performance ATX motherboard built on the AMD B850 chipset for the AM5 socket. Designed for gamers and creators, it supports Ryzen 7000/8000/9000 series CPUs, DDR5 memory up to 8200+ MT/s (OC), PCIe 5.0 GPU support, Gen5 + dual Gen4 M.2 storage, Wi‑Fi 7, Intel 5 Gb LAN, and features a 12+2+1 Duet Rail VRM with advanced thermal solutions. MSI B850 Gaming Plus WiFi gaming-centric design, top-tier connectivity, and strong overclocking features make it an excellent core for premium builds.
Features :
- Supports AMD Ryzen 7000, 8000, and 9000 series processors
- AM5 socket with AMD B850 chipset
- DDR5 support up to 8200+ MT/s OC
- 12+2+1 phase Duet Rail VRM with Core Boost
- 1× PCIe 5.0 x16 slot with Steel Armor
- Triple M.2 slots: 1× Gen5 x4, 1× Gen4 x4, 1× Gen4 x2
- Integrated Wi-Fi 7 and Bluetooth 5.4
- 5 Gigabit Ethernet LAN
- USB 3.2 Gen 2×2 Type-C, USB 3.2 Gen 2/1, and USB 2.0 ports
- Realtek ALC897 7.1-channel HD audio with Audio Boost
- EZ Debug LED, BIOS Flashback, Clear CMOS
- Extended heatsinks and high-performance thermal pads
Specifications :
| Model | MSI B850 Gaming Plus WiFi |
| Form Factor | ATX |
| CPU Socket | AM5 |
| Chipset | AMD B850 |
| CPU Support | Ryzen 7000 / 8000 / 9000 Series |
| Memory Support | 4× DDR5 DIMMs, up to 8200+ MT/s (OC), max 256 GB |
| VRM Design | 12+2+1 Duet Rail, 60A DrMOS, Dual 8-pin CPU connectors |
| PCIe Slots | 1× PCIe 5.0 x16, 1× PCIe 4.0 x16 (x4), 2× PCIe 3.0 x1 |
| M.2 Slots | 1× Gen5 x4, 1× Gen4 x4, 1× Gen4 x2 |
| SATA Ports | 4× SATA III 6Gb/s (RAID 0/1/10) |
| LAN | 5 Gigabit Ethernet (Realtek) |
| Wireless | Wi-Fi 7 and Bluetooth 5.4 |

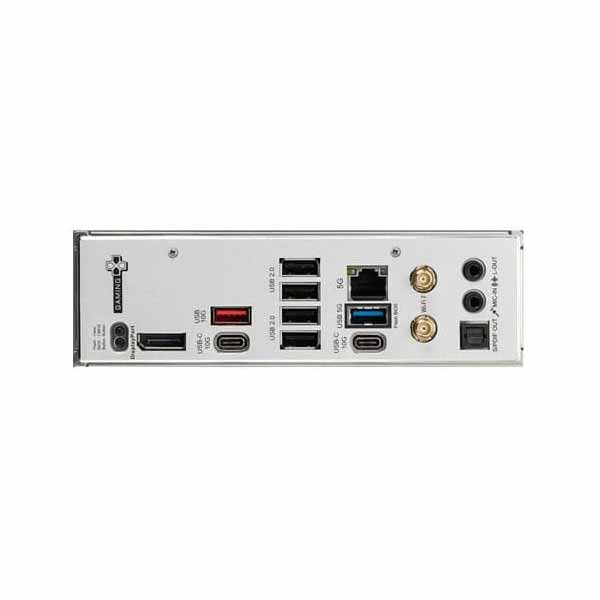

| USB Ports (Rear) | 1× USB-C 20Gbps, 1× USB 10Gbps, 4× USB 5Gbps, 2× USB 2.0 |
| USB (Front Headers) | USB 3.2 Gen 2 Type-C, USB 3.2 Gen 1, USB 2.0 |
| Display Output | DisplayPort 1.2 |
| Audio | Realtek ALC897, 7.1-channel HD Audio with Audio Boost |
| Cooling | Extended Heatsinks, 7W/mK thermal pads, 6-layer PCB |
| DIY Features | EZ Debug LED, M.2 Clip, BIOS Flashback, Clear CMOS |
| Warranty | 3 Years |
