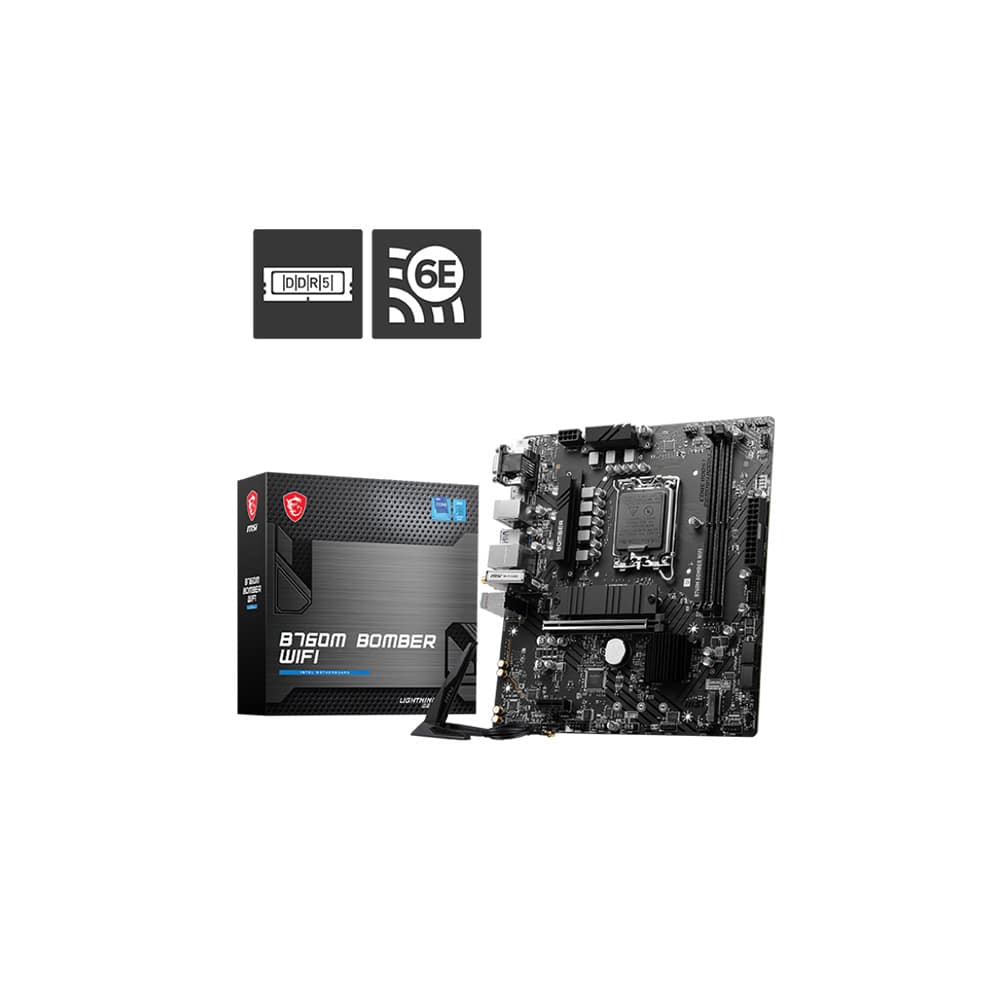

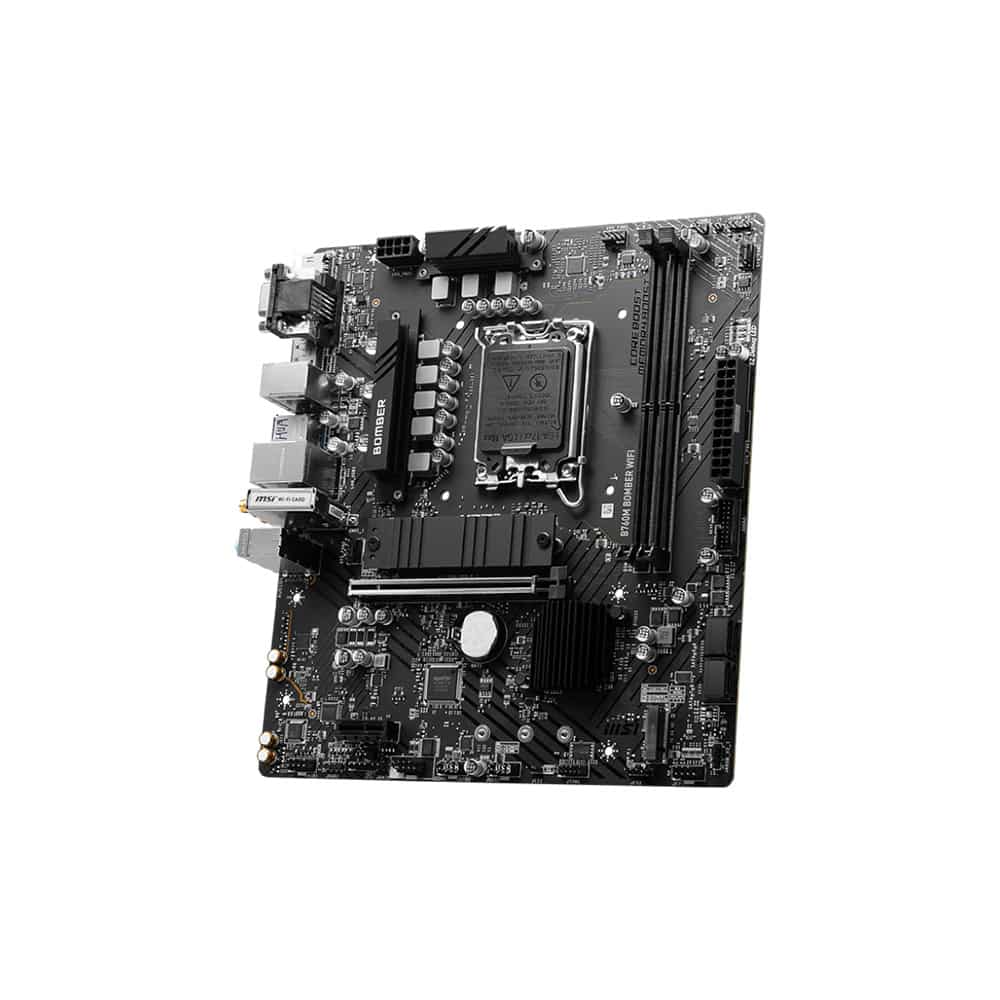

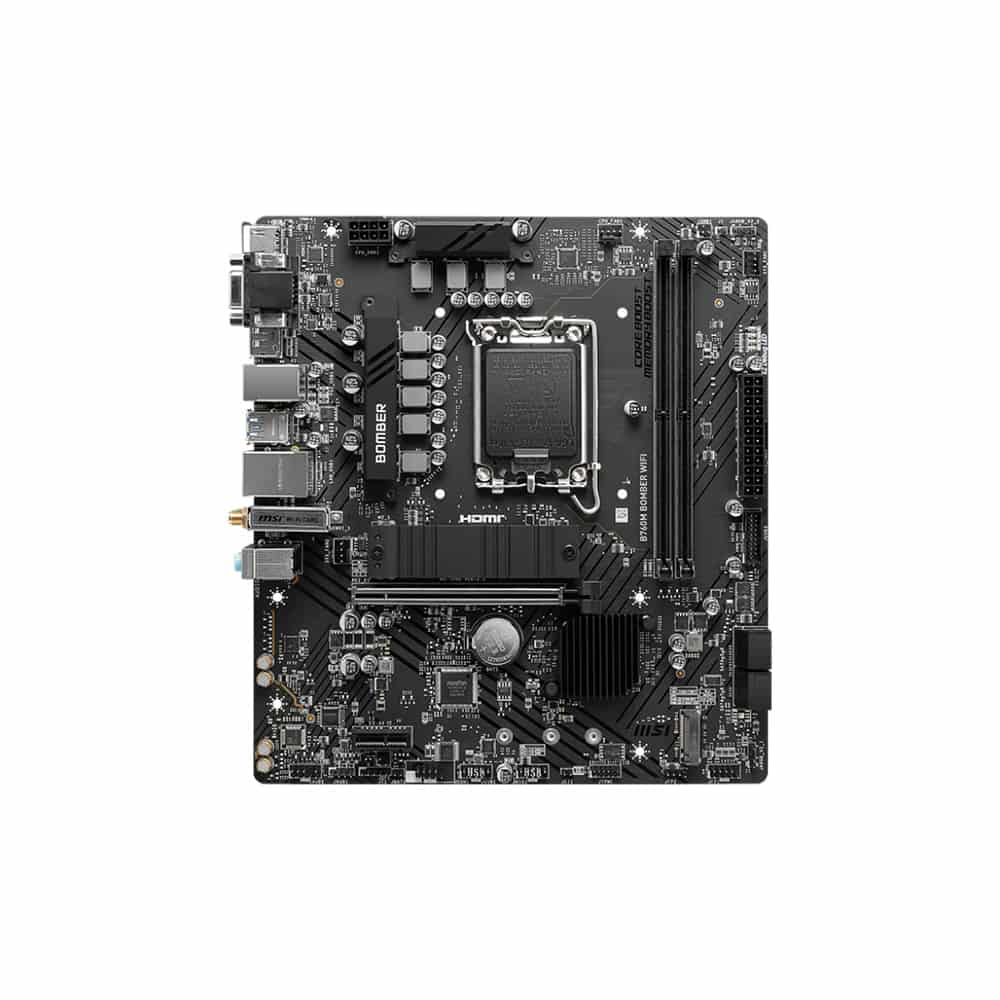

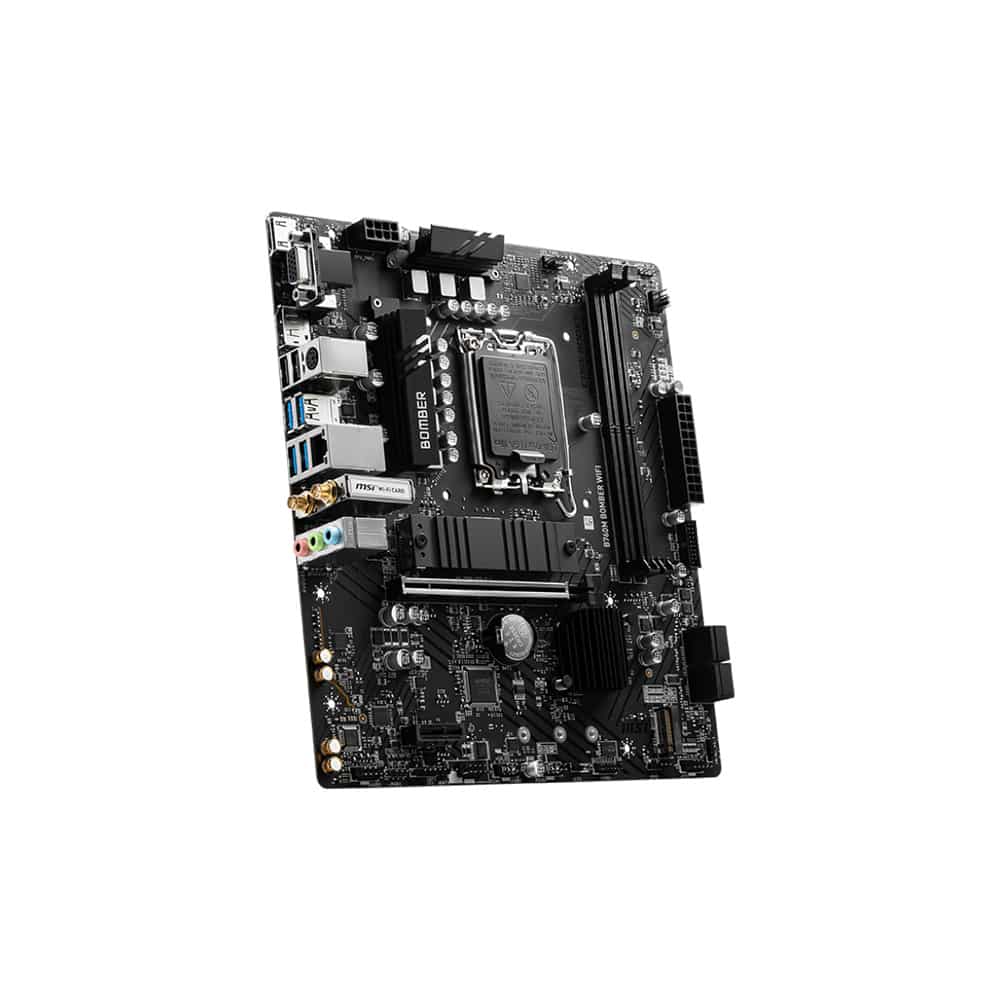

MSI B760M BOMBER WIFI DDR5 Motherboard :
Features:
- Supports 12th/13th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1700 socket
- Supports DDR5 Memory, Dual Channel DDR5-6400+MHz (OC)
- Core Boost : With premium layout and digital power design to support more cores and provide better performance
- Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
- Lightning Fast Experience: PCIe 4.0, Lightning Gen4 x4 M.2 with M.2 Shield Frozr
- 2.5G LAN with Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
- AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience
- Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength
Specifications :
| CHIPSET | INTEL B760 |
|---|---|
| CPU | Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors LGA 1700 |
| MEMORY | 2x DDR5, Maximum Memory Capacity 96GB Memory Support DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) Max. overclocking frequency: • 1DPC 1R Max speed up to 6400+ MHz • 1DPC 2R Max speed up to 5600+ MHzSupports Intel® XMP 3.0 OC Supports Dual-Controller Dual-Channel mode Supports non-ECC, un-buffered memory |
| ONBOARD GRAPHICS | 1x HDMI™ Support HDMI™ 2.1 with HDR, maximum resolution of 4K 60Hz* 1x DisplayPort Support DP 1.4, maximum resolution of 4K 60Hz* 1x D-Sub Support VGA, maximum resolution of 2048×1536 50Hz, 2048×1280 60Hz, 1920×1200 60Hz *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. |
| SLOT | 1x PCI-E x16 slot (Qty) 1x PCI-E x1 slot (Qty) PCI_E1 Gen PCIe 4.0 supports up to (From CPU) PCI_E2 Gen PCIe 4.0 supports up to (From Chipset) |
| STORAGE | 2x M.2 (Qty) M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G (Qty) * SATA7 will be unavailable when installing M.2 SATA SSD in the M2_2 slot. |
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
| USB | 2x USB 2.0 (Rear) 4x USB 2.0 (Front) 4x USB 3.2 Gen1 Type A (Rear) 2x USB 3.2 Gen1 Type A (Front) |
| LAN | Realtek® RTL8125B 2.5Gbps LAN |
| WIRELESS LAN & BLUETOOTH | Intel® Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ axSupports Bluetooth® 5.3, FIPS, FISMA* Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11. ** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11. |
| AUDIO | Realtek® ALC897 Codec 7.1-Channel High Definition Audio |
| INTERNAL IO | 1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 2x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 3.2 Gen1 Type A ports |
| LED FEATURE | 4x EZ Debug LED |

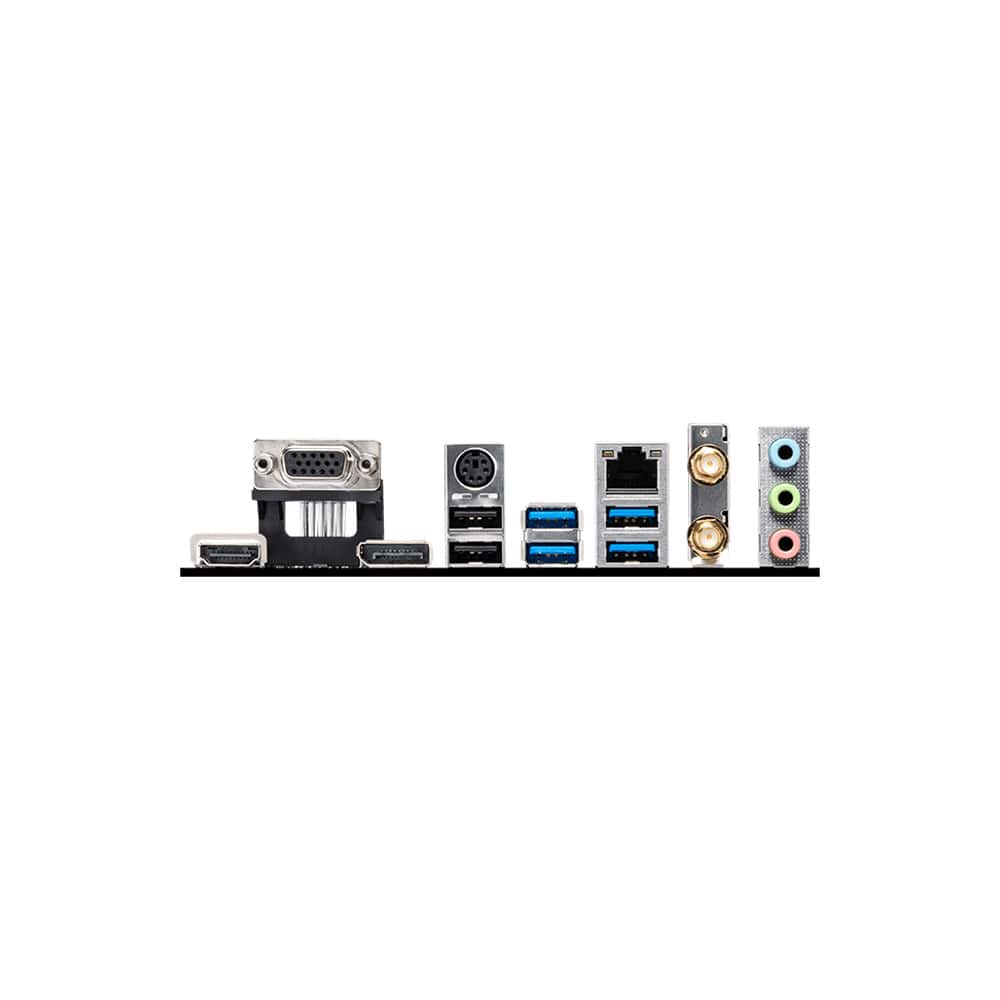

| BACK PANEL PORTS |
|
| OPERATING SYSTEM | Support for Windows® 11 64-bit, Windows® 10 64-bit |
| PCB INFO | mATX 220mmx243.84mm |
| WARRANTY | 3 Years |
